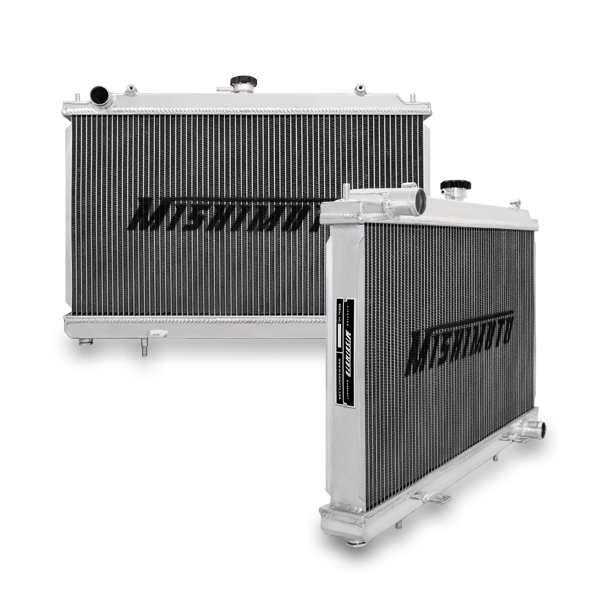

Performance Aluminum Radiator, fits Nissan 240SX SR20 Engine 1995-1998 - Mishimoto - MMRAD-S14-95SR

The Mishimoto performance aluminum radiator for the Nissan 240SX is designed and engineered to maximize cooling efficiency by up to 30-percent boost engine functions and most importantly protect your car from overheating whether you drive your vehicle daily or take it for track runs. The Mishimoto aluminum Nissan 240SX radiator features a lightweight dual core 100-percent brazed aluminum and polished end tanks enhancing the overall performance of your engine. Every Mishimoto aluminum radiator is a direct OEM fit making installation effortless with no cutting or modification required. This is the ideal upgrade to the stock Nissan 240SX radiator. All Mishimoto radiators come with a high pressure 1.3 bar Mishimoto radiator cap and a great warranty including accident protection. A perfect match to the Mishimoto lightweight aluminum Nissan 240sx fan shroud. Also fits Nissan S15
Provides a bolt-in cooling solution which simplifies the engine-swap process
Full aluminum construction including durable TIG-welded end tanks
Features a two-row 1.97-in thick efficient brazed aluminum core
Drain Plug Thread Size: M10 - 1.25
Core Finish: Uncoated
Drain Plug Included: Yes
Overall Height: 26.4 IN
Core Height: 25.12 IN
Core Thickness: 1.97 IN
Core Material: Aluminum
Outlet Location: Bottom Right
Transmission Oil Cooler Included: No
Transmission Oil Cooler Fitting Type: N/A
Radiator Cap Included: Yes
Core Length: 14.13 IN
Core Row Quantity: 2
Inlet Diameter: 1.25 IN
Inlet Location: Top Left
Outlet Diameter: 1.25 IN
Fluid Capacity: 1.85 GA
Down Flow Or Cross Flow Type: Down Flow
Overall Length: 20 IN
Overall Width: 2.47 IN
Install Difficulty: 3
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct fit for the 1995-1998 Nissan 240SX S14 with SR20 engine swap
SellingPoint02: Provides a bolt-in cooling solution which simplifies the engine-swap process
SellingPoint03: Full aluminum construction including durable TIG-welded end tanks
SellingPoint04: Features a two-row 1.97-in thick efficient brazed aluminum core
SellingPoint05: Increased fluid capacity and optimal heat dissipation
SellingPoint06: Provides efficient temperature reduction for street and/or track use
SellingPoint07: Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant providing a safer and more efficient system
SellingPoint08: Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
SellingPoint09: Mishimoto Lifetime Warranty
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: 1997 Nissan 240sx LE--1995-1997 Nissan 240sx SE
TechSpec Chassis Codes: S14
TechSpec Core Height (in): 25.12
TechSpec Core Length (in): 14.13
TechSpec Core Thickness (in): 1.97
TechSpec DPI: N/A
TechSpec Drain Plug Thread Size: M10 x 1.25
TechSpec Engine Codes: SR20DESR20DET
TechSpec Fluid Capacity (gal): 1.85
TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty
TechSpec Inlet (in): 1.25
TechSpec Material: N/A
TechSpec Note: This item is for Manual Transmission vehicles. For automatic applications please purchase optional Mishimoto Universal Transmission Cooler Kit.
TechSpec Outlet (in): 1.25
TechSpec Overall Height (in): 26.4
TechSpec Overall Length (in): 20
TechSpec Overall Width (in): 2.47
TechSpec Rows: 2
