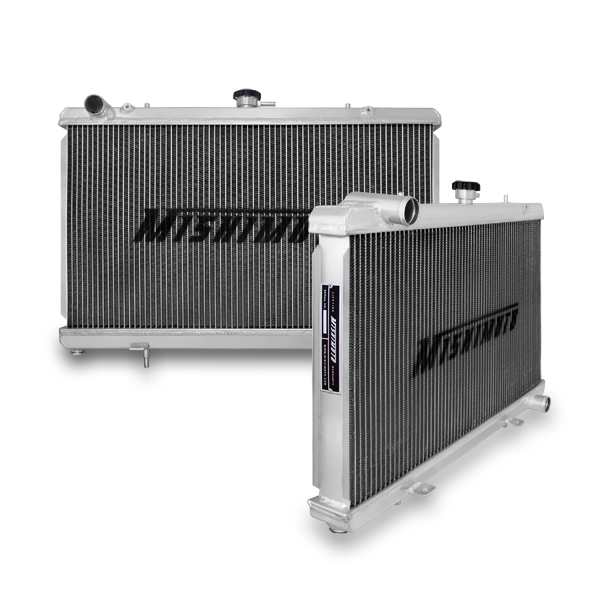

Performance Aluminum Radiator, fits Nissan 240SX SR20 Engine 1989-1994 - Mishimoto - MMRAD-S13-89SR

The Mishimoto performance aluminum radiator for the 1989-1994 Nissan 240SX with SR20 Engine is designed and engineered to maximize cooling efficiency by up to 30-percent boost engine functions and most importantly protect your car from overheating whether you drive your vehicle daily or take it for track runs.The Mishimoto aluminum Nissan 240SX radiator features a lightweight dual core 100-percent brazed aluminum and polished end tanks enhancing the overall performance of your engine.Every Mishimoto aluminum radiator is a direct OEM fit making installation effortless with no cutting or modification required.This is the ideal upgrade to the stock Nissan 240SX radiator.All Mishimoto radiators come with a high pressure 1.3 bar Mishimoto radiator cap and a great warranty including accident protection.For even more cooling efficiency check out the S13 fan shroud kit.
Provides a bolt-in cooling solution which simplifies the engine-swap process
Full aluminum construction including durable TIG-welded end tanks
Features a two-row 1.97-in thick efficient brazed aluminum core
Drain Plug Thread Size: M10 - 1.25
Core Finish: Uncoated
Drain Plug Included: Yes
Overall Height: 19.5 IN
Core Height: 14.13 IN
Core Thickness: 1.97 IN
Core Material: Aluminum
Outlet Location: Bottom Right
Transmission Oil Cooler Included: No
Transmission Oil Cooler Fitting Type: N/A
Radiator Cap Included: Yes
Core Length: 25.12 IN
Core Row Quantity: 2
Inlet Diameter: 1.25 IN
Inlet Location: Top Left
Outlet Diameter: 1.25 IN
Fluid Capacity: 2.09 GA
Down Flow Or Cross Flow Type: Down Flow
Overall Length: 26.4 IN
Overall Width: 2.47 IN
Install Difficulty: 3
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct fit for the 1989-1994 Nissan 240SX S13 with SR20 engine swap
SellingPoint02: Provides a bolt-in cooling solution which simplifies the engine-swap process
SellingPoint03: Full aluminum construction including durable TIG-welded end tanks
SellingPoint04: Features a two-row 1.97-in thick efficient brazed aluminum core
SellingPoint05: Increased fluid capacity and optimal heat dissipation
SellingPoint06: Provides efficient temperature reduction for street and/or track use
SellingPoint07: Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant providing a safer and more efficient system
SellingPoint08: Included magnetic drain plug captures harmful metal debris to safeguard cooling system performance
SellingPoint09: Mishimoto Lifetime Warranty
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: 1991-1992 Nissan 240sx LE--1989-1994 Nissan 240sx SE
TechSpec Chassis Codes: S13
TechSpec Core Height (in): 14.13
TechSpec Core Length (in): 25.12
TechSpec Core Thickness (in): 1.97
TechSpec DPI: N/A
TechSpec Drain Plug Thread Size: M10 x 1.25
TechSpec Engine Codes: SR20DE SR20DET
TechSpec Fluid Capacity (gal): 2.09
TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty
TechSpec Inlet (in): 1.25
TechSpec Material: N/A
TechSpec Note: This item is for Manual Transmission vehicles. For automatic applications please purchase optional Mishimoto Universal Transmission Cooler Kit.
TechSpec Outlet (in): 1.25
TechSpec Overall Height (in): 19.5
TechSpec Overall Length (in): 26.4
TechSpec Overall Width (in): 2.47
TechSpec Rows: 2
