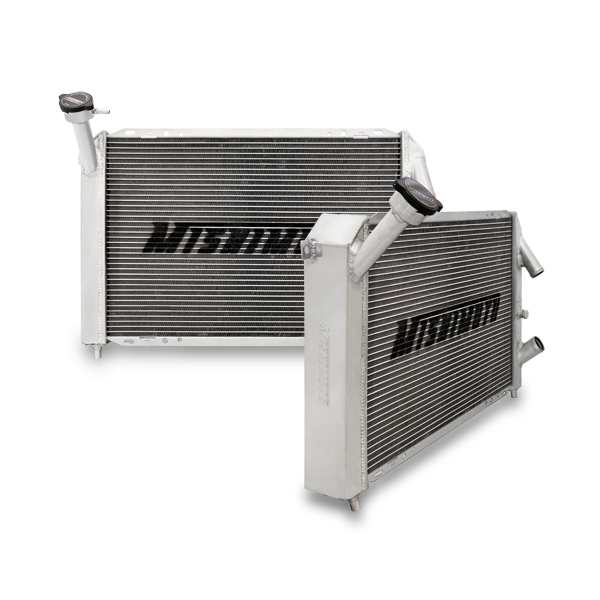

Performance Aluminum Radiator, fits LS-Swapped Mazda RX-7 1993-1995 - Mishimoto - MMRAD-RX-LS

For those with an LS-swapped 1993-1995 Mazda RX-7 looking to enhance the overall performance and lifetime of their engine the Mishimoto performance aluminum radiator is the ideal cooling system upgrade.With no cutting or modification required for a direct drop-in fitment installation is easy and effortless.All Mishimoto radiators are designed and engineered to maximize cooling efficiency and most importantly protect your car from overheating.
Provides a bolt-in cooling solution which simplifies the engine-swap process
Full aluminum construction including durable TIG-welded end tanks
Features a two-row 2.17-in thick efficient brazed aluminum core
Drain Plug Thread Size: M12 - 1.5
Core Finish: Uncoated
Drain Plug Included: Yes
Overall Height: 27.34 IN
Core Height: 15.75 IN
Core Thickness: 2.17 IN
Core Material: Aluminum
Outlet Location: Bottom Right
Transmission Oil Cooler Included: No
Transmission Oil Cooler Fitting Type: N/A
Radiator Cap Included: Yes
Core Length: 22.2 IN
Core Row Quantity: 2
Inlet Diameter: 1.38 IN
Inlet Location: Top Right
Outlet Diameter: 1.5 IN
Fluid Capacity: 0 GA
Down Flow Or Cross Flow Type: Cross Flow
Overall Length: 19.5 IN
Overall Width: 2.67 IN
Install Difficulty: 3
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct fit for the 1993-1995 FD Mazda RX7 with LSX engine swap
SellingPoint02: Provides a bolt-in cooling solution which simplifies the engine-swap process
SellingPoint03: Full aluminum construction including durable TIG-welded end tanks
SellingPoint04: Features a two-row 2.17-in thick efficient brazed aluminum core
SellingPoint05: Increased fluid capacity and optimal heat dissipation
SellingPoint06: Provides efficient temperature reduction for street and/or track use
SellingPoint07: Efficient temperature regulation for both stock and forced induction vehicles
SellingPoint08: Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant providing a safer and more efficient system
SellingPoint09: Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
SellingPoint10: Mishimoto Lifetime Warranty
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: N/A
TechSpec Chassis Codes: FD
TechSpec Core Height (in): 15.75
TechSpec Core Length (in): 22.2
TechSpec Core Thickness (in): 2.17
TechSpec DPI: 2067
TechSpec Drain Plug Thread Size: N/A
TechSpec Engine Codes: LS
TechSpec Fluid Capacity (gal): N/A
TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Mishimoto Lifetime Warranty
TechSpec Inlet (in): 1.38
TechSpec Material: Aluminum
TechSpec Note: Some modification may be necessary due to differences in chassis construction and vehicle manufacturing tolerances----This item is for Manual Transmission vehicles. For automatic applications please purchase optional Mishimoto Universal Transmission Cooler Kit.
TechSpec Outlet (in): 1.5
TechSpec Overall Height (in): 27.34
TechSpec Overall Length (in): 19.5
TechSpec Overall Width (in): 2.67
TechSpec Rows: 2
