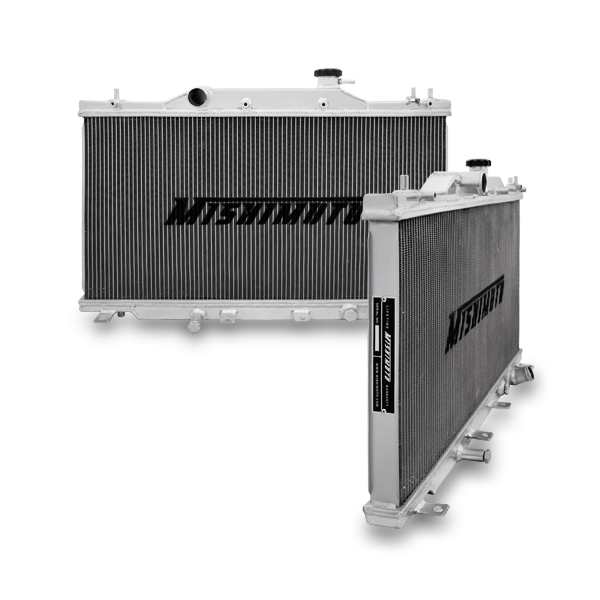

Performance Aluminum Radiator, fits Acura RSX 2002-2006 - Mishimoto - MMRAD-RSX-02

By replacing your current stock RSX radiator with a top of the line Mishimoto performance aluminum radiator you will immediately notice a cooler more efficient running engine.All Mishimoto Acura RSX radiators are designed and engineered to maximize cooling efficiency boost engine functions and most importantly protect your car from overheating.All Mishimoto performance radiators feature a lightweight dual core 100-percent brazed aluminum and polished end tanks.The direct OEM fit makes installation effortless and no cutting or modification is required.It is the ideal upgrade to the stock radiator.All Mishimoto radiators come with a high pressure 1.3 bar Mishimoto radiator cap magnetic drain plug and an excellent warranty.
2002-2006 Acura RSX
Full aluminum construction including durable TIG-welded end tanks
Features a two-row 1.4-in thick efficient brazed aluminum core
Drain Plug Thread Size: M12 - 1.5
Core Finish: Uncoated
Drain Plug Included: Yes
Overall Height: 18.8 IN
Core Height: 13.75 IN
Core Thickness: 1.4 IN
Core Material: Aluminum
Outlet Location: Bottom Right
Transmission Oil Cooler Included: No
Transmission Oil Cooler Fitting Type: N/A
Radiator Cap Included: Yes
Core Length: 27.52 IN
Core Row Quantity: 2
Inlet Diameter: 1.25 IN
Inlet Location: Top Left
Outlet Diameter: 1.25 IN
Fluid Capacity: 1.91 GA
Down Flow Or Cross Flow Type: Down Flow
Overall Length: 27.6 IN
Overall Width: 1.9 IN
Install Difficulty: 3
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: 2002-2006 Acura RSX
SellingPoint02: Full aluminum construction including durable TIG-welded end tanks
SellingPoint03: Features a two-row 1.4-in thick efficient brazed aluminum core
SellingPoint04: Increased fluid capacity and optimal heat dissipation
SellingPoint05: Provides efficient temperature reduction for both street and track use
SellingPoint06: Efficient temperature regulation for both stock and modified vehicles
SellingPoint07: Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant providing a safer and more efficient system
SellingPoint08: Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
SellingPoint09: Mishimoto Lifetime Warranty
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: 2002-2006 Acura RSX Type S
TechSpec Chassis Codes: DC5
TechSpec Core Height (in): 13.75
TechSpec Core Length (in): 27.52
TechSpec Core Thickness (in): 1.4
TechSpec DPI: 2412
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec Engine Codes: K20a3--K20a1--K20z1
TechSpec Fluid Capacity (gal): 1.91
TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty
TechSpec Inlet (in): 1.25
TechSpec Material: N/A
TechSpec Note: This item is for Manual Transmission vehicles. For automatic applications please purchase optional Mishimoto Universal Transmission Cooler Kit.
TechSpec Outlet (in): 1.25
TechSpec Overall Height (in): 18.8
TechSpec Overall Length (in): 27.6
TechSpec Overall Width (in): 1.9
TechSpec Rows: 2
