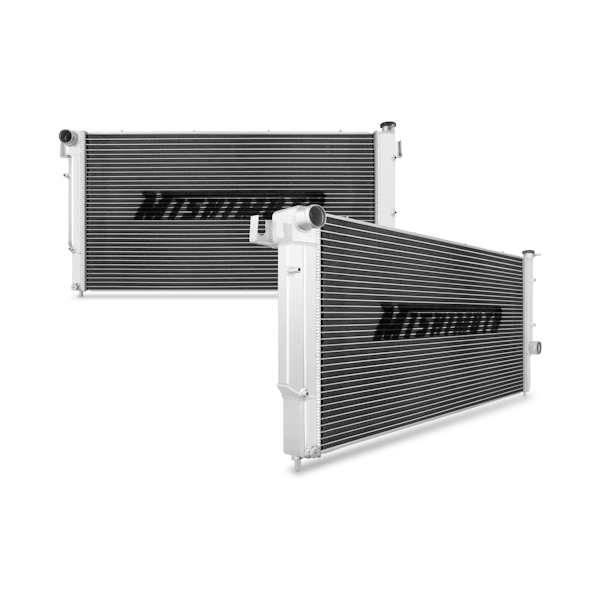

Performance Aluminum Radiator, fits Dodge 5.9L Cummins 1994-2002 - Mishimoto - MMRAD-RAM-94

Mishimoto has released a direct-fit performance aluminum radiator for the 1994-2002 Dodge 5.9L Cummins.A high-performance truck needs a cooling system that can keep up with the constant abuse of towing hauling and runs on the drag strip.Mishimoto radiators feature a brazed aluminum core with TIG-welded end tanks for superior durability reliability and performance.Every Mishimoto performance radiator is a direct factory fit making installation effortless with no cutting or modification required.Included with the Mishimoto Cummins aluminum radiator is our magnetic drain plug and signature lifetime warranty.
Full aluminum construction including durable TIG-welded end tanks
Features a three-row 2.44-in thick efficient brazed aluminum core
Increased fluid capacity and optimal heat dissipation
Drain Plug Thread Size: M12 - 1.5
Core Finish: Uncoated
Drain Plug Included: Yes
Overall Height: 21.9 IN
Core Height: 19.21 IN
Core Thickness: 2.44 IN
Core Material: Aluminum
Outlet Location: Bottom Right
Transmission Oil Cooler Included: No
Transmission Oil Cooler Fitting Type: N/A
Radiator Cap Included: Yes
Core Length: 36.42 IN
Core Row Quantity: 3
Inlet Diameter: 1.77 IN
Inlet Location: Top Left
Outlet Diameter: 1.97 IN
Fluid Capacity: 6.78 GA
Down Flow Or Cross Flow Type: Cross Flow
Overall Length: 45.4 IN
Overall Width: 4.8 IN
Install Difficulty: 3
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct fit for the 1994-2002 Dodge 5.9L 12V/24V Cummins
SellingPoint02: Full aluminum construction including durable TIG-welded end tanks
SellingPoint03: Features a three-row 2.44-in thick efficient brazed aluminum core
SellingPoint04: Increased fluid capacity and optimal heat dissipation
SellingPoint05: Provides efficient temperature reduction for towing hauling or during aggressive driving conditions
SellingPoint06: Efficient temperature regulation for both stock and modified trucks
SellingPoint07: Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant providing a safer and more efficient system
SellingPoint08: Includes new fan shroud bolts
SellingPoint09: Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
SellingPoint10: Mishimoto Lifetime Warranty
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: 1994-2002 Dodge Ram 2500--1994-2002 Dodge Ram 3500--1998 Dodge Ram 2500 Quad Cab--1998 Dodge Ram 3500 Quad Cab--1998 Dodge Ram 2500 Club Cab--2001 Dodge Ram 3500 Quad Cab
TechSpec Chassis Codes: N/A
TechSpec Core Height (in): 19.21
TechSpec Core Length (in): 36.42
TechSpec Core Thickness (in): 2.44
TechSpec DPI: 1553
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec Engine Codes: N/A
TechSpec Fluid Capacity (gal): 6.78
TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--(4) M6 x 1.0 Fan Shroud Bolts--Mishimoto Lifetime Warranty
TechSpec Inlet (in): 1.77
TechSpec Material: Aluminum
TechSpec Note: This radiator now includes (4) M6x1.0 bolts to connect the fan shroud to the radiator. If you did not receive these bolts please do not reinstall your stock bolts and contact our customer service team
TechSpec Outlet (in): 1.97
TechSpec Overall Height (in): 21.9
TechSpec Overall Length (in): 45.4
TechSpec Overall Width (in): 4.8
TechSpec Rows: 3
