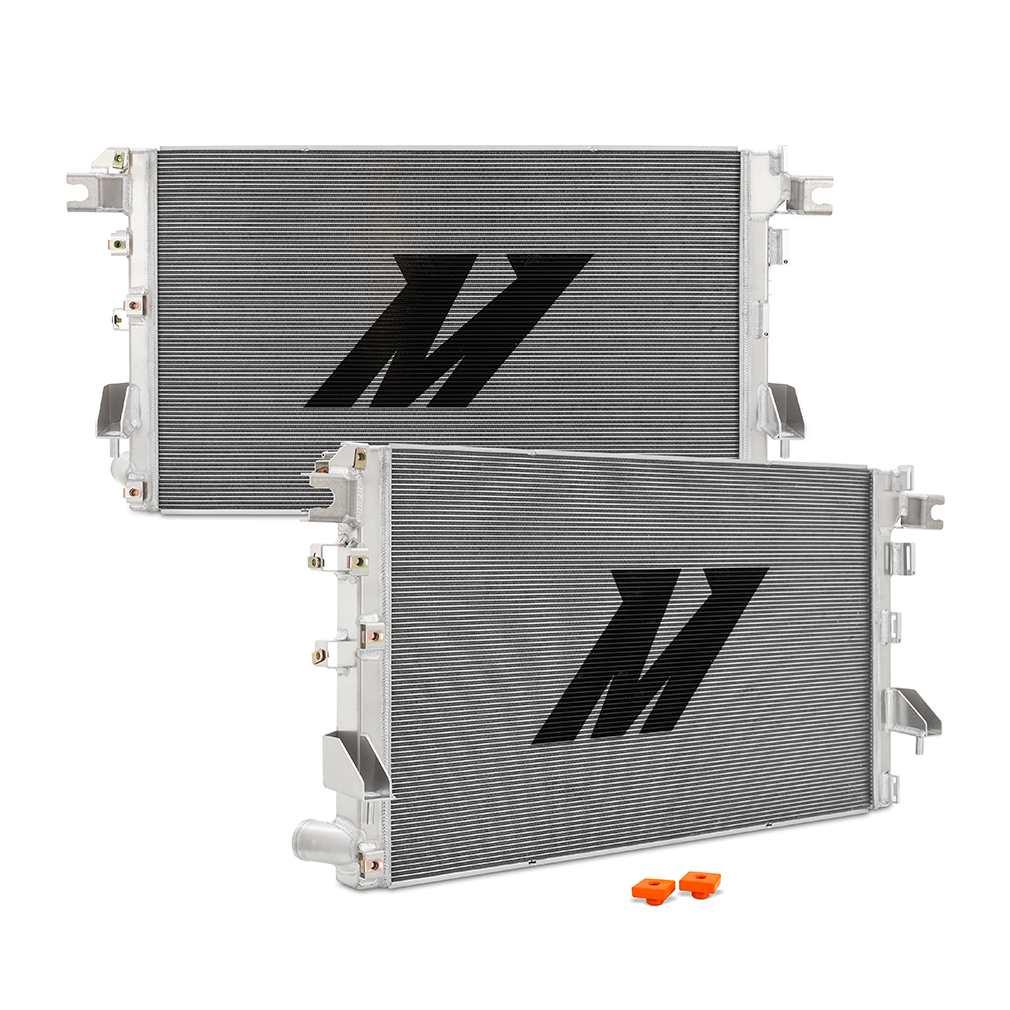

Performance Aluminum Radiator, fits Ram 6.7L Cummins 2019+ - Mishimoto - MMRAD-RAM-19

The legendary reliability and power of the 6.7L Cummins equipped Dodge Ram has solidified it as one of the most popular trucks in the world for getting work done. But every legend has its weakness and for the Dodge Ram the stock radiator is one of them. The plastic end-tanks of the stock Ram radiator are prone to cracking and leaking over time. Add the increased stress and heat created by hauling heavy workloads and you have a recipe for disaster. But that's where Mishimoto can help. Our new 2019+ Ram 2500/3500 radiator is the ideal upgrade for any workhorse Cummins powered Ram. With a fully aluminum TIG-welded construction the Mishimoto radiator is as tough as your truck. A 28% increase in fluid capacity means you can pile on the power and never worry about the heat. As with all our products this radiator is backed up by Mishimoto's Lifetime Warranty. Doesn't your Ram deserve a radiator worthy of legend?
Increases fluid capacity by 28% to maximize cooling
Durable fully aluminum construction with TIG-welded end tanks and fittings
Includes bushing replacements for old or worn out bushings
Drain Plug Thread Size: M12 - 1.5
Core Finish: Uncoated
Drain Plug Included: No
Overall Height: 21.48 IN
Core Height: 20.76 IN
Core Thickness: 1.57 IN
Core Material: Aluminum
Outlet Location: Bottom Right
Transmission Oil Cooler Included: No
Transmission Oil Cooler Fitting Type: N/A
Radiator Cap Included: No
Core Length: 33.39 IN
Core Row Quantity: 1
Inlet Diameter: 2 IN
Inlet Location: Top Left
Outlet Diameter: 2 IN
Fluid Capacity: 1.2 GA
Down Flow Or Cross Flow Type: Cross Flow
Overall Length: 43.3 IN
Overall Width: 7.04 IN
Install Difficulty: 5
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct fit for the 2019+ Ram 6.7L Cummins
SellingPoint02: Increases fluid capacity by 28% to maximize cooling
SellingPoint03: Durable fully aluminum construction with TIG-welded end tanks and fittings
SellingPoint04: Includes bushing replacements for old or worn out bushings
SellingPoint05: Strutted tubes throughout for maximum rigidity and durability
SellingPoint06: Louvered fins for improved heat dissipation
SellingPoint07: Pair with Mishimoto Silicone Coolant Hose Kit for even greater cooling system protection
SellingPoint08: Mishimoto Lifetime Warranty
SellingPoint09: N/A
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: Ram 2500 6.7L L6 2019+--Ram 3500 6.7L L6 2019+--Ram 4500 6.7L L6 2019+--Ram 5500 6.7L L6 2019+
TechSpec Chassis Codes: N/A
TechSpec Core Height (in): 20.76
TechSpec Core Length (in): 33.39
TechSpec Core Thickness (in): 1.57
TechSpec DPI: N/A
TechSpec Drain Plug Thread Size: N/A
TechSpec Engine Codes: N/A
TechSpec Fluid Capacity (gal): 1.2
TechSpec Includes: (1) Mishimoto Performance Radiator--(2) Replacement Lower Radiator Bushings-- Mishimoto Lifetime Warranty
TechSpec Inlet (in): 2
TechSpec Material: Aluminum
TechSpec Note: Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system--Will not fit HO models. Core fitment is designed for a 34” radiator core if your vehicle has a 39” wide core this radiator will not be compatible.
TechSpec Outlet (in): 2
TechSpec Overall Height (in): 21.48
TechSpec Overall Length (in): 43.3
TechSpec Overall Width (in): 7.04
TechSpec Rows: N/A
