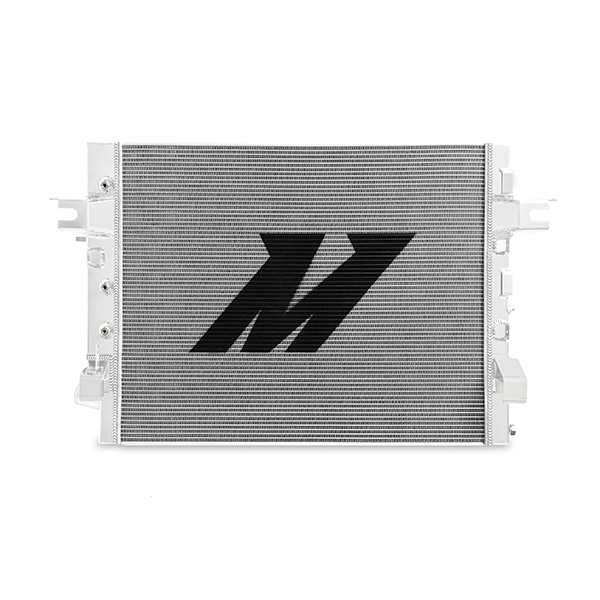

Performance Aluminum Radiator, fits Dodge 6.7L Cummins 2013-2018 - Mishimoto - MMRAD-RAM-13

The legendary reliability and power of the 6.7L Cummins equipped Dodge Ram has solidified it as one of the most popular trucks in the world for getting work done. But every legend has its weakness and for the Dodge Ram the stock radiator is one of them.The plastic end-tanks of the stock Ram radiator are prone to cracking and leaks over time. Add the increased stress and heat created by power-adding modifications and you have a recipe for disaster. But that's where Mishimoto can help.Our new 2013-2018 Ram 2500 / 3500 radiator is the ideal upgrade for any workhorse Cummins powered Ram. With a fully-aluminum TIG-welded construction this radiator is built as tough as your truck. A 63-percent increase in coolant capacity and 41-percent larger surface area mean you can pile on the power and never worry about the heat.As with all of our products this radiator is backed up by Mishimoto's Lifetime Warranty. Doesn't your Ram deserve a radiator worthy of legend?
Increases coolant capacity by 63-percent and surface area by 41-percent to maximize cooling
Durable fully aluminum construction with TIG-welded end tanks and fittings
Features a 2-in thick three-row core for efficient cooling under high loads
Drain Plug Thread Size: M12 - 1.5
Core Finish: Uncoated
Drain Plug Included: Yes
Overall Height: 22 IN
Core Height: 22 IN
Core Thickness: 1.88 IN
Core Material: Aluminum
Outlet Location: Bottom Right
Transmission Oil Cooler Included: No
Transmission Oil Cooler Fitting Type: N/A
Radiator Cap Included: No
Core Length: 26.75 IN
Core Row Quantity: 3
Inlet Diameter: 1.61 IN
Inlet Location: Top Left
Outlet Diameter: 1.61 IN
Fluid Capacity: 7.94 GA
Down Flow Or Cross Flow Type: Cross Flow
Overall Length: 33.5 IN
Overall Width: 2.75 IN
Install Difficulty: 5
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct fit for the 2013-2018 Dodge Ram 6.7L Cummins
SellingPoint02: Increases coolant capacity by 63-percent and surface area by 41-percent to maximize cooling
SellingPoint03: Durable fully aluminum construction with TIG-welded end tanks and fittings
SellingPoint04: Features a 2-in thick three-row core for efficient cooling under high loads
SellingPoint05: Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
SellingPoint06: Mishimoto Lifetime Warranty
SellingPoint07: N/A
SellingPoint08: N/A
SellingPoint09: N/A
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: Ram 2500 6.7L L6 2013-2018--Ram 3500 6.7L L6 2013-2018--Ram 4500 6.7L L6 2013-2018--Ram 5500 6.7L L6 2013-2018
TechSpec Chassis Codes: N/A
TechSpec Core Height (in): 22
TechSpec Core Length (in): 26.75
TechSpec Core Thickness (in): 1.88
TechSpec DPI: N/A
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec Engine Codes: N/A
TechSpec Fluid Capacity (gal): 7.94 .
TechSpec Includes: Mishimoto Radiator--Magnetic Drain Plug--(2) Transmission Cooler Fittings-- M6 x 1.0 - 16mm Bolt--(3) M6 x 1.0 - 14mm Bolts--(4) M6 x 1.0 - 12mm Bolts--(3) M6 Flat Washers--Mishimoto Lifetime Warranty
TechSpec Inlet (in): 1.61
TechSpec Material: Aluminum
TechSpec Note: N/A
TechSpec Outlet (in): 1.61
TechSpec Overall Height (in): 22
TechSpec Overall Length (in): 33.5
TechSpec Overall Width (in): 2.75
TechSpec Rows: 3
