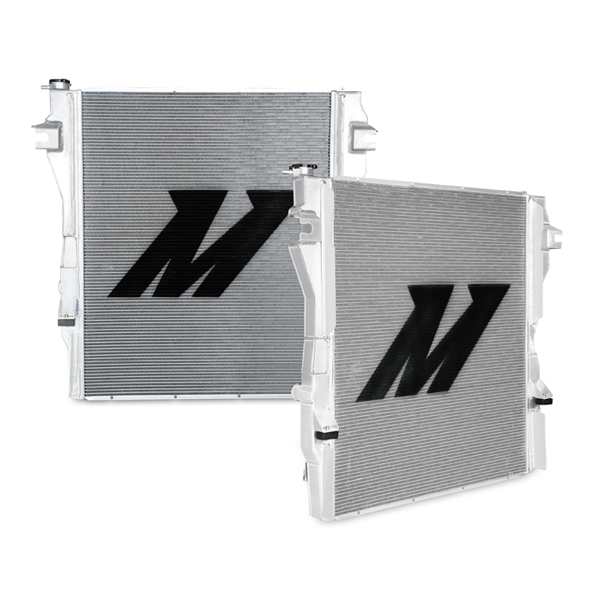

Performance Aluminum Radiator, fits Dodge 6.7L Cummins 2010-2012 - Mishimoto - MMRAD-RAM-10

Looking to upgrade your 6.7L Cummins radiator? Mishimoto has developed a performance aluminum radiator for the Dodge 6.7L Cummins Engine as an ideal upgrade for the factory radiator. It was designed and engineered to maximize cooling efficiency boost engine functions and protect your truck from overheating. Whether you use your Dodge Ram for daily driving or as a powerhouse for hauling and towing you don't want to overlook the importance of installing an upgraded aluminum radiator for your engine. A factory radiator cannot handle the heat that comes along with the immense power and torque potential of your truck. The Mishimoto Cummins radiator features a lightweight two-row core made of 100-percent brazed aluminum that is 19-percent thicker than the factory radiator and it features strong TIG-welded aluminum end tanks for superior durability and longevity.
Direct fit 64-percent increased capacity over stock
100-percent brazed aluminum core is 19-percent thicker than factory radiator
Robotic TIG-welding and brushed aluminum finish
Drain Plug Thread Size: M12 - 1.5
Core Finish: Uncoated
Drain Plug Included: Yes
Overall Height: 36.15 IN
Core Height: 32.9 IN
Core Thickness: 1.96 IN
Core Material: Aluminum
Outlet Location: Bottom Right
Transmission Oil Cooler Included: No
Transmission Oil Cooler Fitting Type: N/A
Radiator Cap Included: Yes
Core Length: 26.7 IN
Core Row Quantity: 2
Inlet Diameter: 1.75 IN
Inlet Location: Top Left
Outlet Diameter: 1.75 IN
Fluid Capacity: 6.39 GA
Down Flow Or Cross Flow Type: Cross Flow
Overall Length: 34.15 IN
Overall Width: 6.25 IN
Install Difficulty: 3
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct fit 64-percent increased capacity over stock
SellingPoint02: 100-percent brazed aluminum core is 19-percent thicker than factory radiator
SellingPoint03: Robotic TIG-welding and brushed aluminum finish
SellingPoint04: Includes two rubber mounting bushings magnetic drain plug and high-pressure radiator cap
SellingPoint05: Strategic side plates on the end tanks help divert air into the core
SellingPoint06: Mishimoto Lifetime Warranty
SellingPoint07: N/A
SellingPoint08: N/A
SellingPoint09: N/A
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: 2010-2012 Dodge Ram 2500 w/ 6.7L Cummins Engine--2010-2012 Dodge Ram 3500 w/ 6.7L Cummins Engine--2010-2012 Dodge Chassis Cab w/ 6.7L Cummins Engine
TechSpec Chassis Codes: N/A
TechSpec Core Height (in): 32.9
TechSpec Core Length (in): 26.7
TechSpec Core Thickness (in): 1.96
TechSpec DPI: N/A
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec Engine Codes: N/A
TechSpec Fluid Capacity (gal): 6.39
TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Additional Mounting Hardware--(2) Rubber Mounting Bushings--Mishimoto Lifetime Warranty
TechSpec Inlet (in): 1.75
TechSpec Material: Aluminum
TechSpec Note: N/A
TechSpec Outlet (in): 1.75
TechSpec Overall Height (in): 36.15
TechSpec Overall Length (in): 34.15
TechSpec Overall Width (in): 6.25
TechSpec Rows: 2
