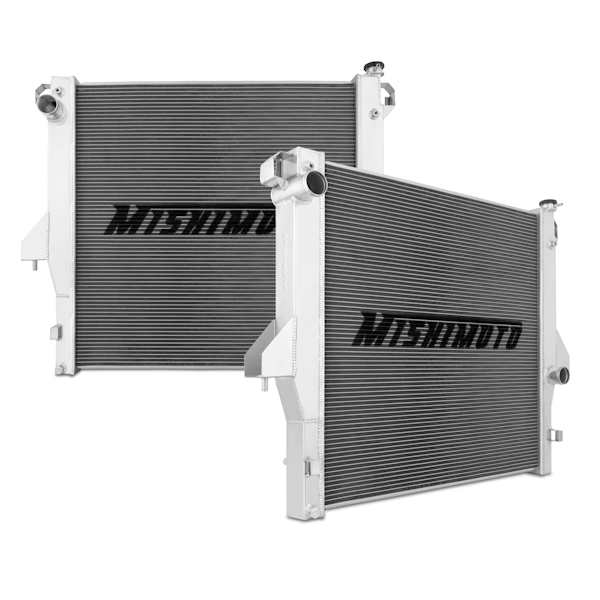

Performance Aluminum Radiator, fits Dodge 5.9L/6.7L Cummins 2003-2009 - Mishimoto - MMRAD-RAM-03

Mishimoto has developed a performance aluminum radiator for the Dodge 5.9L/6.7L Cummins Engine.The Mishimoto performance aluminum radiator for the Dodge Ram is the ideal upgrade for the factory radiator.It was designed and engineered to maximize cooling efficiency boost engine functions and protect your truck from overheating.Whether you use your Dodge Ram for daily driving or as a powerhouse for hauling and towing you don't want to overlook the importance of installing an upgraded radiator for your engine.A factory radiator cannot handle the heat that comes along with immense power and torque.The Mishimoto Dodge Ram radiator features a lightweight two-row core made of 100-percent brazed aluminum and it features strong TIG-welded aluminum end tanks for superior durability and longevity.Every Mishimoto performance radiator is a direct factory fit making installation effortless with no cutting or modification required.Included with the Mishimoto Cummins aluminum radiator is our magnetic drain plug and signature lifetime warranty.
Full aluminum construction including durable TIG-welded end tanks
Features a two-row efficient brazed aluminum core
Increased fluid capacity and optimal heat dissipation
Drain Plug Thread Size: M12 - 1.5
Core Finish: Uncoated
Drain Plug Included: Yes
Overall Height: 35.5 IN
Core Height: 28.1 IN
Core Thickness: 1.34 IN
Core Material: Aluminum
Outlet Location: Bottom Right
Transmission Oil Cooler Included: No
Transmission Oil Cooler Fitting Type: N/A
Radiator Cap Included: Yes
Core Length: 27 IN
Core Row Quantity: 2
Inlet Diameter: 2 IN
Inlet Location: Top Left
Outlet Diameter: 2 IN
Fluid Capacity: 6.39 GA
Down Flow Or Cross Flow Type: Cross Flow
Overall Length: 30.5 IN
Overall Width: 5.63 IN
Install Difficulty: 3
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct fit for the 2003-2009 Dodge 5.9L/6.7L Cummins
SellingPoint02: Full aluminum construction including durable TIG-welded end tanks
SellingPoint03: Features a two-row efficient brazed aluminum core
SellingPoint04: Increased fluid capacity and optimal heat dissipation
SellingPoint05: Provides efficient temperature reduction for towing hauling or during aggressive driving conditions
SellingPoint06: Efficient temperature regulation for both stock and modified trucks
SellingPoint07: Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant providing a safer and more efficient system
SellingPoint08: Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
SellingPoint09: Mishimoto Lifetime Warranty
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: Dodge Ram 2500 I6 (5.9L) 2003-2007--Dodge Ram 2500 I6 (6.7L) 2007-2009--Dodge Ram 3500 I6 (5.9L) 2003-2007--Dodge Ram 3500 I6 (6.7L) 2007-2009--Dodge Ram 4500 I6 (6.7L) 2008-2009--Dodge Ram 5500 I6 (6.7L) 2008-2009
TechSpec Chassis Codes: N/A
TechSpec Core Height (in): 28.1
TechSpec Core Length (in): 27
TechSpec Core Thickness (in): 1.34
TechSpec DPI: 2711
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec Engine Codes: N/A
TechSpec Fluid Capacity (gal): 6.39
TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty
TechSpec Inlet (in): 2
TechSpec Material: Aluminum
TechSpec Note: N/A
TechSpec Outlet (in): 2
TechSpec Overall Height (in): 35.5
TechSpec Overall Length (in): 30.5
TechSpec Overall Width (in): 5.63
TechSpec Rows: 2
