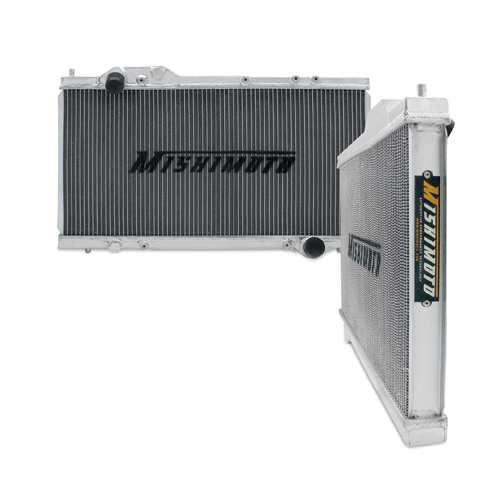

Performance Aluminum Radiator, fits Acura NSX Manual 1990-2005 - Mishimoto - MMRAD-NSX-90

The Mishimoto performance aluminum radiator for the Acura NSX is the ideal upgrade to the stock NSX radiator.Designed and specifically engineered to maximize cooling efficiency by up to 30-percent boost engine functions and protect your car from overheating.Whether you use your Acura for daily driving or take it to the track many people overlook the importance of installing an upgraded radiator in their engine.A stock radiator cannot handle the heat that comes along with having a great deal of horsepower.The Mishimoto Acura NSX radiator features a lightweight dual core 100-percent brazed aluminum and polished end tanks.Every Mishimoto Performance Radiator is a direct OEM fit making installation effortless no cutting or modification is required.
Full aluminum construction including durable TIG-welded end tanks
Features a two-row 1.65-in thick efficient brazed aluminum core
Increased fluid capacity and optimal heat dissipation
Drain Plug Thread Size: M12 - 1.5
Core Finish: Uncoated
Drain Plug Included: Yes
Overall Height: 28 IN
Core Height: 26.77 IN
Core Thickness: 1.65 IN
Core Material: Aluminum
Outlet Location: Bottom Right
Transmission Oil Cooler Included: No
Transmission Oil Cooler Fitting Type: N/A
Radiator Cap Included: No
Core Length: 13.38 IN
Core Row Quantity: 2
Inlet Diameter: 1.5 IN
Inlet Location: Top Left
Outlet Diameter: 1.5 IN
Fluid Capacity: 4.78 GA
Down Flow Or Cross Flow Type: Down Flow
Overall Length: 17.5 IN
Overall Width: 2.15 IN
Install Difficulty: 3
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct fit for the 1990-2005 Acura NSX
SellingPoint02: Full aluminum construction including durable TIG-welded end tanks
SellingPoint03: Features a two-row 1.65-in thick efficient brazed aluminum core
SellingPoint04: Increased fluid capacity and optimal heat dissipation
SellingPoint05: Perfect for use on the street strip or track
SellingPoint06: Ideal replacement for an aging and/or clogged stock radiator
SellingPoint07: Efficient temperature regulation for both stock and forced induction vehicles
SellingPoint08: Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
SellingPoint09: Mishimoto Lifetime Warranty
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: 1995-1999 Acura NSX-T--1999 Acura NSX Alex Zanardi Edition
TechSpec Chassis Codes: NA1--NA2
TechSpec Core Height (in): 26.77
TechSpec Core Length (in): 13.38
TechSpec Core Thickness (in): 1.65
TechSpec DPI: 2032
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec Engine Codes: C30a1--C32b1
TechSpec Fluid Capacity (gal): 4.78
TechSpec Includes: Mishimoto Aluminum Radiator--Magnetic Drain Plug--Mishimoto Lifetime Warranty
TechSpec Inlet (in): 1.5
TechSpec Material: Aluminum
TechSpec Note: This item is for Manual Transmission vehicles. For automatic applications please purchase optional Mishimoto Universal Transmission Cooler Kit.
TechSpec Outlet (in): 1.5
TechSpec Overall Height (in): 28
TechSpec Overall Length (in): 17.5
TechSpec Overall Width (in): 2.15
TechSpec Rows: 2
