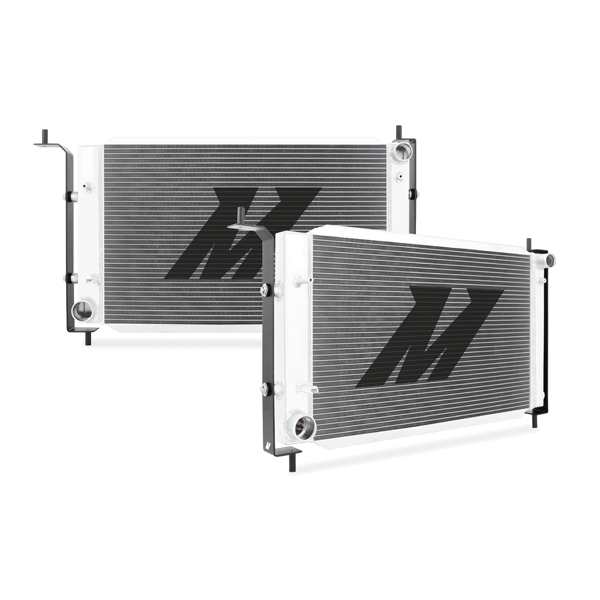

Performance Aluminum Radiator, fits Ford Mustang Manual 1994-1995 - Mishimoto - MMRAD-MUS-94B

Mishimoto has released a revolutionary new radiator for the 1994andndash; 1995 Ford Mustang. The high torque generated by the Mustangs revealed a fatal flaw in the OEM design where the torquing chassis would cause the OEM radiators to separate the endtanks from the cores. Utilizing a patent-pending floating bracket system this radiator was engineered to eliminate the issues found in the OEM design while simultaneously adding cooling capacity and increasing efficiency. The new Mishimoto Mustang radiator is a direct fit and installs in about two hours with no cutting or trimming required. This aluminum radiator like all Mishimoto radiators comes with a 1.3 bar high-pressure radiator cap and is backed by our unparalleled Mishimoto Lifetime Warranty.
Full aluminum construction including durable TIG-welded end tanks
Features a two-row 1.57-in thick efficient brazed aluminum core
Increased fluid capacity and optimal heat dissipation
Drain Plug Thread Size: M12 - 1.5
Core Finish: Uncoated
Drain Plug Included: Yes
Overall Height: 34.8 IN
Core Height: 15.28 IN
Core Thickness: 1.57 IN
Core Material: Aluminum
Outlet Location: Bottom Left
Transmission Oil Cooler Included: No
Transmission Oil Cooler Fitting Type: N/A
Radiator Cap Included: Yes
Core Length: 24.02 IN
Core Row Quantity: 2
Inlet Diameter: 1.5 IN
Inlet Location: Top Right
Outlet Diameter: 1.77 IN
Fluid Capacity: 3.97 GA
Down Flow Or Cross Flow Type: Cross Flow
Overall Length: 20.5 IN
Overall Width: 4.2 IN
Install Difficulty: 3
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Full aluminum construction including durable TIG-welded end tanks
SellingPoint02: Features a two-row 1.57-in thick efficient brazed aluminum core
SellingPoint03: Increased fluid capacity and optimal heat dissipation
SellingPoint04: Perfect for use on the street or strip
SellingPoint05: Efficient temperature regulation for both stock and modified vehicles
SellingPoint06: Utilizes patent-pending radiator stabilizer system which isolates the radiator from the chassis eliminating the potential of chassis flex from impacting the integrity of the radiator
SellingPoint07: Features internal transmission fluid cooler which accepts factory cooler lines
SellingPoint08: Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant providing a safer and more efficient system
SellingPoint09: Includes Magnetic Drain Plug to capture any debris
SellingPoint10: Patent No. US D703 126
SellingPoint11: Mishimoto Lifetime Warranty
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: 1994-1995 Ford Mustang
TechSpec Chassis Codes: SN-95
TechSpec Core Height (in): 15.28
TechSpec Core Length (in): 24.02
TechSpec Core Thickness (in): 1.57
TechSpec DPI: 1488
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec Engine Codes: 302ci (5.0L)--3.8L V6
TechSpec Fluid Capacity (gal): 3.97
TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug w/ Dowty Oil Seal--Left and Right Brackets--(4) - Rubber Bushings and Metal Collars--(4) - M8 Flange Head Bolts--(4) - M8 Washers--Mishimoto Lifetime Warranty--
TechSpec Inlet (in): 1.5
TechSpec Material: Aluminum
TechSpec Note: N/A
TechSpec Outlet (in): 1.77
TechSpec Overall Height (in): 34.8
TechSpec Overall Length (in): 20.5
TechSpec Overall Width (in): 4.2
TechSpec Rows: 2
