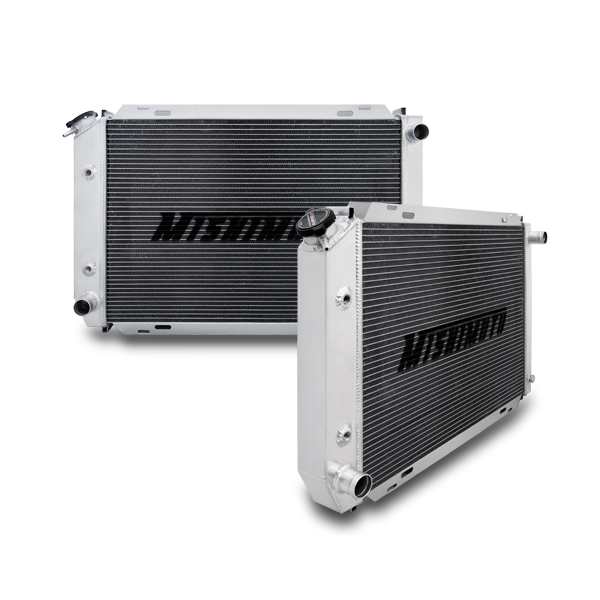

Dual Pass Aluminum Racing Radiator, fits Ford Mustang 1979-1993 - Mishimoto - MMRAD-MUS-79DP

The Mishimoto Mustang Dual Pass Racing Radiator is the ideal upgrade to the stock OEM Mustang radiator.Made with aircraft quality aluminum and specifically engineered to maximize cooling efficiency boost engine functions and protect your car from overheating.Note - May require longer water hoses.
Full aluminum construction including durable TIG-welded end tanks
Features a three-row 2.05-in thick efficient brazed aluminum core
Increased fluid capacity and optimal heat dissipation
Drain Plug Thread Size: M12 - 1.5
Core Finish: Uncoated
Drain Plug Included: Yes
Overall Height: 19.1 IN
Core Height: 16.7 IN
Core Thickness: 2.05 IN
Core Material: Aluminum
Outlet Location: Bottom Right
Transmission Oil Cooler Included: No
Transmission Oil Cooler Fitting Type: N/A
Radiator Cap Included: Yes
Core Length: 24.45 IN
Core Row Quantity: 3
Inlet Diameter: 1.25 IN
Inlet Location: Top Right
Outlet Diameter: 1.5 IN
Fluid Capacity: 3.97 GA
Down Flow Or Cross Flow Type: Cross Flow
Overall Length: 30 IN
Overall Width: 4.25 IN
Install Difficulty: 3
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct fit for the 1979-1993 Ford Mustang 5.0L with relocated lower hose
SellingPoint02: Full aluminum construction including durable TIG-welded end tanks
SellingPoint03: Features a three-row 2.05-in thick efficient brazed aluminum core
SellingPoint04: Increased fluid capacity and optimal heat dissipation
SellingPoint05: Perfect for use on the street and strip
SellingPoint06: Efficient temperature regulation for both stock and modified vehicles
SellingPoint07: Unique dual pass design is precision engineered to provide substantial heat transfer
SellingPoint08: Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant providing a safer and more efficient system
SellingPoint09: Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
SellingPoint10: Mishimoto Lifetime Warranty
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: 1979-1993 Ford Mustang (All)--1980-1988 Ford Thunderbird--1980-1983 Ford Fairmont--1981-1982 Ford Granada--1983-1986 Ford LTD--1978-1983 Mercury Zephyr--1980-1986 Mercury Capri--1980-1988 Mercury Cougar
TechSpec Chassis Codes: N/A
TechSpec Core Height (in): 16.7
TechSpec Core Length (in): 24.45
TechSpec Core Thickness (in): 2.05
TechSpec DPI: 138/556
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec Engine Codes: 302ci (5.0L)
TechSpec Fluid Capacity (gal): 3.97
TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty
TechSpec Inlet (in): 1.25
TechSpec Material: Aluminum
TechSpec Note: This item is for Manual Transmission vehicles. For automatic applications please purchase optional Mishimoto Universal Transmission Cooler Kit--Custom lower hose is required due to the relocated lower hose port
TechSpec Outlet (in): 1.5
TechSpec Overall Height (in): 19.1
TechSpec Overall Length (in): 30
TechSpec Overall Width (in): 4.25
TechSpec Rows: 3
