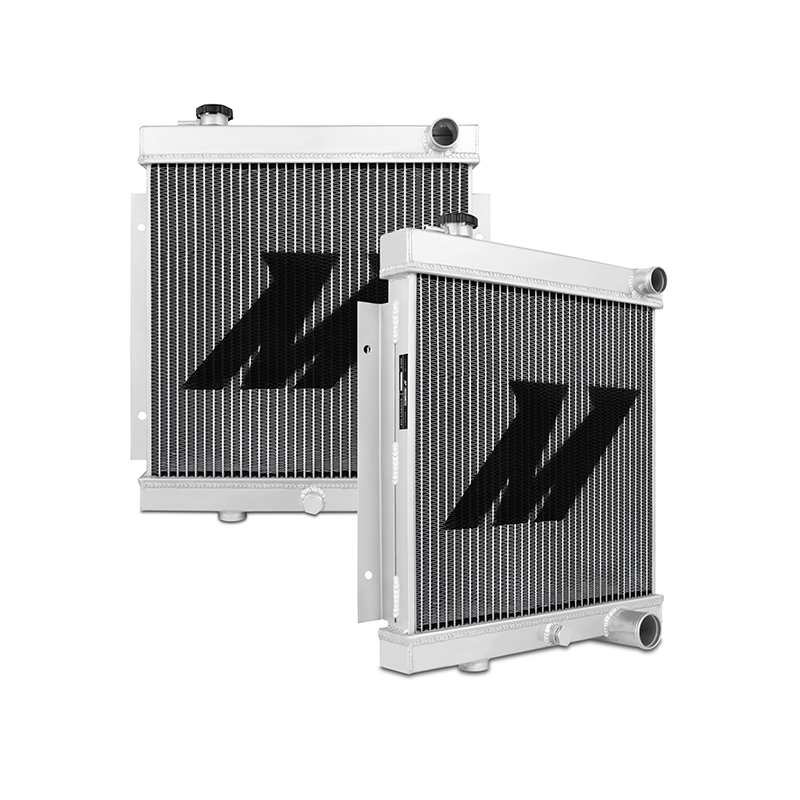

Performance Aluminum Radiator, fits Ford Mustang w/ 289 V8 1964-1966 - Mishimoto - MMRAD-MUS-64

The Mishimoto 1964-1966 Mustang Aluminum Radiator w/ 289 V8 is the ideal upgrade to the stock Mustang radiator.Designed and specifically engineered to maximize cooling efficiency boost engine functions and protect your car from overheating.A stock radiator cannot handle the heat that comes along with having a great deal of horsepower.The Mishimoto '64-'66 Mustang performance radiator features a lightweight dual core 100-percent brazed aluminum and polished end tanks.Every Mishimoto Performance Radiator is a direct OEM fit no cutting or modification is required.
Full aluminum construction including durable TIG-welded end tanks
Features a two-row 1.57-in thick efficient brazed aluminum core
Increased fluid capacity and optimal heat dissipation
Drain Plug Thread Size: M12 - 1.5
Core Finish: Uncoated
Drain Plug Included: Yes
Overall Height: 19.69 IN
Core Height: 16.85 IN
Core Thickness: 1.57 IN
Core Material: Aluminum
Outlet Location: Bottom Right
Transmission Oil Cooler Included: No
Transmission Oil Cooler Fitting Type: N/A
Radiator Cap Included: Yes
Core Length: 16.34 IN
Core Row Quantity: 2
Inlet Diameter: 1.5 IN
Inlet Location: Top Right
Outlet Diameter: 1.97 IN
Fluid Capacity: 4.09 GA
Down Flow Or Cross Flow Type: Down Flow
Overall Length: 21.85 IN
Overall Width: 2.07 IN
Install Difficulty: 3
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct fit for the 1964-1966 Ford Mustang with 289ci V8
SellingPoint02: Full aluminum construction including durable TIG-welded end tanks
SellingPoint03: Features a two-row 1.57-in thick efficient brazed aluminum core
SellingPoint04: Increased fluid capacity and optimal heat dissipation
SellingPoint05: Perfect for use on the street and strip
SellingPoint06: Efficient temperature regulation for both stock and modified vehicles
SellingPoint07: Ideal replacement for an aged and/or clogged stock radiator
SellingPoint08: Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant providing a safer and more efficient system
SellingPoint09: Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
SellingPoint10: Mishimoto Lifetime Warranty
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: 1963-1965 Mercury Comet 260/289--1963-1964 Ford Falcon 260
TechSpec Chassis Codes: N/A
TechSpec Core Height (in): 16.85
TechSpec Core Length (in): 16.34
TechSpec Core Thickness (in): 1.57
TechSpec DPI: 130
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec Engine Codes: N/A
TechSpec Fluid Capacity (gal): 4.09
TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Lifetime Warranty
TechSpec Inlet (in): 1.5
TechSpec Material: Aluminum
TechSpec Note: This item is for Manual Transmission vehicles. For automatic applications please purchase optional Mishimoto Universal Transmission Cooler Kit.
TechSpec Outlet (in): 1.97
TechSpec Overall Height (in): 19.69
TechSpec Overall Length (in): 21.85
TechSpec Overall Width (in): 2.07
TechSpec Rows: 2
