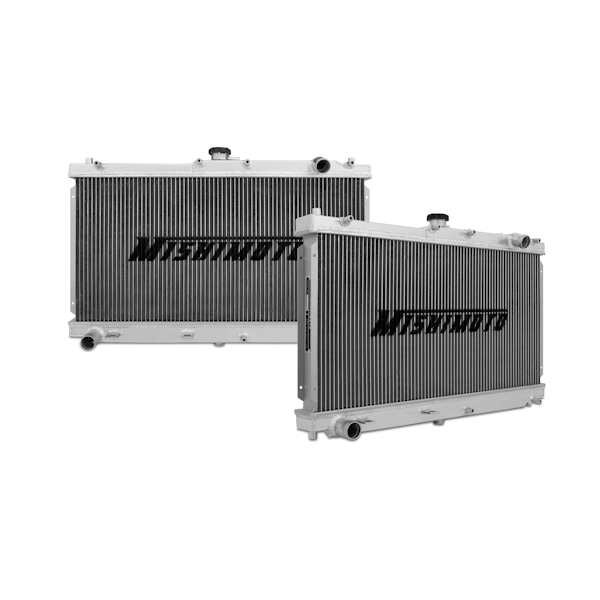

Performance Aluminum Radiator, fits Mazda Miata Manual 1999-2005 - Mishimoto - MMRAD-MIA-99

The Mishimoto 99-05 Mazda Miata radiator is an ideal upgrade for your vehicle.With up to 30-percent greater cooling efficiency than standard radiators precision engineered as a direct OEM fit for smooth installation.By replacing your current Miata radiator with a Mishimoto radiator you will notice lower engine temperatures and better overall performance.All Mishimoto radiators feature a dual core and come with a high-pressure Mishimoto radiator cap polished upper and lower end tanks and a great warranty.Check out the Mishimoto for even greater cooling efficiency.
Full aluminum construction including durable TIG-welded end tanks
Features a two-row 2.05-in thick efficient brazed aluminum core
Ideal replacement for the failure-prone stock radiator
Drain Plug Thread Size: M12 - 1.5
Core Finish: Uncoated
Drain Plug Included: Yes
Overall Height: 26.2 IN
Core Height: 12.8 IN
Core Thickness: 2.05 IN
Core Material: Aluminum
Outlet Location: Bottom Left
Transmission Oil Cooler Included: No
Transmission Oil Cooler Fitting Type: N/A
Radiator Cap Included: Yes
Core Length: 22.17 IN
Core Row Quantity: 2
Inlet Diameter: 1.25 IN
Inlet Location: Top Right
Outlet Diameter: 1.25 IN
Fluid Capacity: 1.79 GA
Down Flow Or Cross Flow Type: Down Flow
Overall Length: 17.2 IN
Overall Width: 2.55 IN
Install Difficulty: 3
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct fit for the 1999-2005 Mazda Miata manual
SellingPoint02: Full aluminum construction including durable TIG-welded end tanks
SellingPoint03: Features a two-row 2.05-in thick efficient brazed aluminum core
SellingPoint04: Ideal replacement for the failure-prone stock radiator
SellingPoint05: Perfect for use on the street track or autocross course
SellingPoint06: Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant providing a safer and more efficient system
SellingPoint07: Included magnetic drain plug captures harmful metal debris to safeguard cooling system performance
SellingPoint08: Mishimoto Lifetime Warranty
SellingPoint09: N/A
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: 2002-2003 Mazda Miata LS--2004-2005 Mazda Miata MazdaSpeed
TechSpec Chassis Codes: NB8C
TechSpec Core Height (in): 12.8
TechSpec Core Length (in): 22.17
TechSpec Core Thickness (in): 2.05
TechSpec DPI: 2268
TechSpec Drain Plug Thread Size: M16 x 0.06
TechSpec Engine Codes: N/A
TechSpec Fluid Capacity (gal): 1.79
TechSpec Includes: Mishimoto Radiator--Magnetic Drain Plug--Mishimoto Radiator Cap--Mishimoto Lifetime Warranty
TechSpec Inlet (in): 1.25
TechSpec Material: N/A
TechSpec Note: This item is for Manual Transmission vehicles. For automatic applications please purchase optional Mishimoto Universal Transmission Cooler Kit.
TechSpec Outlet (in): 1.25
TechSpec Overall Height (in): 26.2
TechSpec Overall Length (in): 17.2
TechSpec Overall Width (in): 2.55
TechSpec Rows: 2
