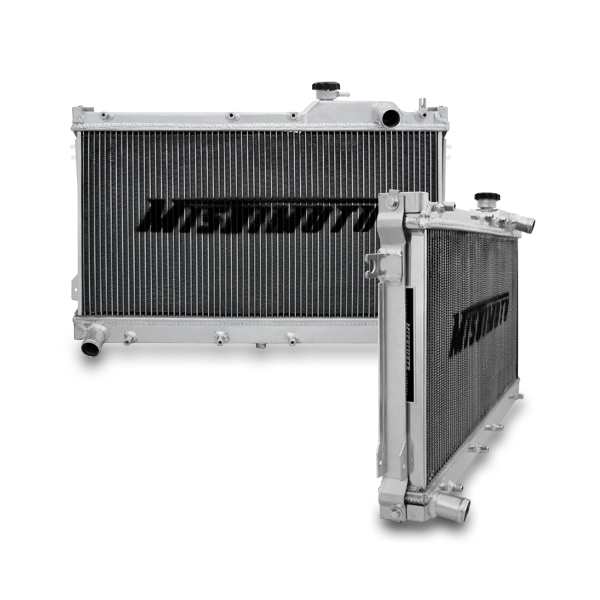

Performance Aluminum Radiator, fits Mazda Miata 1990-1997 - Mishimoto - MMRAD-MIA-90

By replacing your current Miata radiator with a Mishimoto performance aluminum radiator you will undoubtedly notice a cooler more efficient running engine.All Mishimoto Mazda Miata performance aluminum radiators are designed and engineered to maximize cooling efficiency protect your car from the overheating and boost overall engine functions.With its lightweight dual core 100-percent brazed aluminum and polished tank ends installing a direct OEM fit Mishimoto radiator is effortless no cutting or modification is required.All Mishimoto radiators come with a high pressure 1.3 bar Mishimoto radiator cap and a great warranty.Check out the Mazda Miata hose kit for even greater cooling efficiency.
Full aluminum construction including durable TIG-welded end tanks
Features a two-row 1.97-in thick efficient brazed aluminum core
Increased fluid capacity and optimal heat dissipation
Drain Plug Thread Size: M10 - 1.25
Core Finish: Uncoated
Drain Plug Included: Yes
Overall Height: 18 IN
Core Height: 12.6 IN
Core Thickness: 1.97 IN
Core Material: Aluminum
Outlet Location: Bottom Left
Transmission Oil Cooler Included: No
Transmission Oil Cooler Fitting Type: N/A
Radiator Cap Included: Yes
Core Length: 25.12 IN
Core Row Quantity: 2
Inlet Diameter: 1.25 IN
Inlet Location: Top Right
Outlet Diameter: 1.25 IN
Fluid Capacity: 1.79 GA
Down Flow Or Cross Flow Type: Down Flow
Overall Length: 27.8 IN
Overall Width: 2.55 IN
Install Difficulty: 4
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct fit for the 1990-1997 Mazda Miata 1.6L/1.8L
SellingPoint02: Full aluminum construction including durable TIG-welded end tanks
SellingPoint03: Features a two-row 1.97-in thick efficient brazed aluminum core
SellingPoint04: Increased fluid capacity and optimal heat dissipation
SellingPoint05: Ideal replacement for the failure-prone stock radiator
SellingPoint06: Perfect for use on the street track or autocross course
SellingPoint07: Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant providing a safer and more efficient system
SellingPoint08: Included magnetic drain plug captures harmful metal debris to safeguard cooling system performance
SellingPoint09: Mishimoto Lifetime Warranty
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: N/A
TechSpec Chassis Codes: NA6(8)C
TechSpec Core Height (in): 12.6
TechSpec Core Length (in): 25.12
TechSpec Core Thickness (in): 1.97
TechSpec DPI: 1140
TechSpec Drain Plug Thread Size: M10x1.25
TechSpec Engine Codes: N/A
TechSpec Fluid Capacity (gal): 1.79
TechSpec Includes: Mishimoto Radiator--Magnetic Drain Plug--Mishimoto Radiator Cap--Mishimoto Lifetime Warranty
TechSpec Inlet (in): 1.25
TechSpec Material: N/A
TechSpec Note: This item is for Manual Transmission vehicles. For automatic applications please purchase optional Mishimoto Universal Transmission Cooler Kit.
TechSpec Outlet (in): 1.25
TechSpec Overall Height (in): 18
TechSpec Overall Length (in): 27.8
TechSpec Overall Width (in): 2.55
TechSpec Rows: 2
