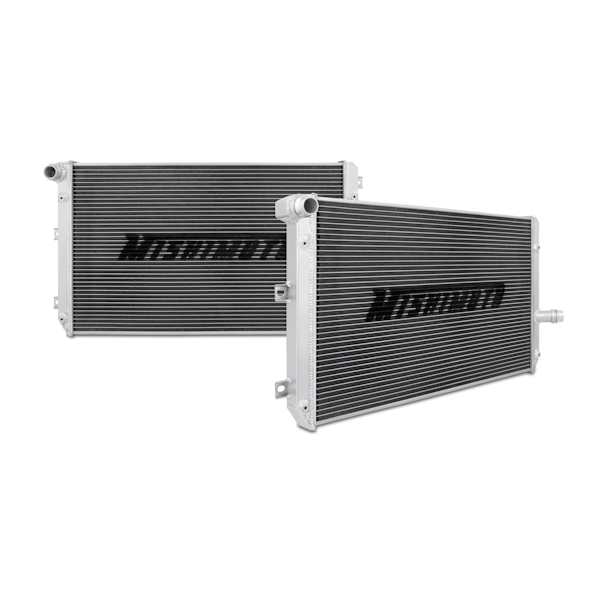

Performance Aluminum Radiator, fits Volkswagen Golf MK5 GTI 2006-2009 - Mishimoto - MMRAD-MAC-06

By replacing your current VW radiator with a Mishimoto performance aluminum radiator you will notice a cooler more efficient running engine.All Mishimoto VW Golf performance aluminum radiators are dual pass engineered to maximize cooling efficiency protect your car from the overheating and boost overall engine functions.With its lightweight dual core 100-percent brazed aluminum and polished tank ends installing a direct OEM fit Mishimoto radiator is effortless no cutting or modification is required.All Mishimoto radiators come with a high pressure 1.3 bar Mishimoto radiator cap and a lifetime warranty.
Full aluminum construction including durable TIG-welded end tanks
Features a two-row 1.57-in thick efficient brazed aluminum core
Features stock-style CNC-machined quick-disconnect inlet and outlet connections which mate perfectly with the stock hoses
Drain Plug Thread Size: M12 - 1.5
Core Finish: Uncoated
Drain Plug Included: Yes
Overall Height: 31.61 IN
Core Height: 15.67 IN
Core Thickness: 1.57 IN
Core Material: Aluminum
Outlet Location: Bottom Right
Transmission Oil Cooler Included: No
Transmission Oil Cooler Fitting Type: N/A
Radiator Cap Included: No
Core Length: 25.6 IN
Core Row Quantity: 2
Inlet Diameter: 1.28 IN
Inlet Location: Top Left
Outlet Diameter: 1.28 IN
Fluid Capacity: 2.27 GA
Down Flow Or Cross Flow Type: Cross Flow
Overall Length: 16.7 IN
Overall Width: 2.07 IN
Install Difficulty: 4
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct fit for the 2006-2009 MK5 Volkswagen Golf GTI 2.0T
SellingPoint02: Full aluminum construction including durable TIG-welded end tanks
SellingPoint03: Features a two-row 1.57-in thick efficient brazed aluminum core
SellingPoint04: Features stock-style CNC-machined quick-disconnect inlet and outlet connections which mate perfectly with the stock hoses
SellingPoint05: Increased fluid capacity and optimal heat dissipation for use on the street and track
SellingPoint06: Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
SellingPoint07: Mishimoto Lifetime Warranty
SellingPoint08: N/A
SellingPoint09: N/A
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: N/A
TechSpec Chassis Codes: Mk5A5PQ35
TechSpec Core Height (in): 15.67
TechSpec Core Length (in): 25.6
TechSpec Core Thickness (in): 1.57
TechSpec DPI: N/A
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec Engine Codes: BPY
TechSpec Fluid Capacity (gal): 2.27
TechSpec Includes: Mishimoto Radiator--Magnetic Drain Plug--Mishimoto Lifetime Warranty
TechSpec Inlet (in): 1.28
TechSpec Material: Aluminum
TechSpec Note: This radiator is only compatible with the FSI motor.----This item is for Manual Transmission vehicles. For automatic applications please purchase optional Mishimoto Universal Transmission Cooler Kit.
TechSpec Outlet (in): 1.28
TechSpec Overall Height (in): 31.61
TechSpec Overall Length (in): 16.7
TechSpec Overall Width (in): 2.07
TechSpec Rows: 2
