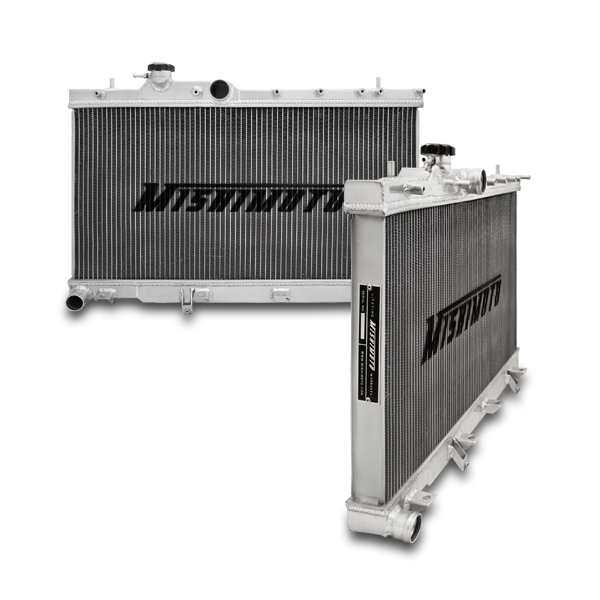

Performance Aluminum Radiator, fits Subaru Legacy 2000-2004 - Mishimoto - MMRAD-LEG-00

By replacing your current Subaru Legacy radiator with a Mishimoto performance aluminum radiator you will notice a cooler more efficient running engine.With its lightweight dual core 100-percent brazed aluminum and polished tank ends installing a direct OEM fit Mishimoto radiator is effortless with no cutting or modification is required.All Mishimoto radiators come with a high pressure 1.3 bar Mishimoto radiator cap and a lifetime warranty
Full aluminum construction including durable TIG-welded end tanks
Ideal replacement for the failure prone stock radiator
Increased fluid capacity and optimal heat dissipation
Drain Plug Thread Size: M12 - 1.5
Core Finish: Uncoated
Drain Plug Included: Yes
Overall Height: 28.03 IN
Core Height: 13.66 IN
Core Thickness: 1.65 IN
Core Material: Aluminum
Outlet Location: Bottom Left
Transmission Oil Cooler Included: No
Transmission Oil Cooler Fitting Type: N/A
Radiator Cap Included: Yes
Core Length: 27.24 IN
Core Row Quantity: 2
Inlet Diameter: 1.5 IN
Inlet Location: Top Left
Outlet Diameter: 1.5 IN
Fluid Capacity: 2.03 GA
Down Flow Or Cross Flow Type: Down Flow
Overall Length: 19.25 IN
Overall Width: 2.15 IN
Install Difficulty: 3
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct fit for the 2000-2004 Subaru Legacy 2.5L
SellingPoint02: Full aluminum construction including durable TIG-welded end tanks
SellingPoint03: Ideal replacement for the failure prone stock radiator
SellingPoint04: Increased fluid capacity and optimal heat dissipation
SellingPoint05: Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant providing a safer and more efficient system
SellingPoint06: Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
SellingPoint07: Mishimoto Lifetime Warranty
SellingPoint08: N/A
SellingPoint09: N/A
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: N/A
TechSpec Chassis Codes: N/A
TechSpec Core Height (in): 13.66
TechSpec Core Length (in): 27.24
TechSpec Core Thickness (in): 1.65
TechSpec DPI: 2331
TechSpec Drain Plug Thread Size: N/A
TechSpec Engine Codes: N/A
TechSpec Fluid Capacity (gal): 2.03
TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug
TechSpec Inlet (in): 1.5
TechSpec Material: Aluminum
TechSpec Note: This item is for Manual Transmission vehicles. For automatic applications please purchase optional Mishimoto Universal Transmission Cooler Kit.----Non-turbocharged models will require blocking of the coolant port on upper passenger side for proper function.
TechSpec Outlet (in): 1.5
TechSpec Overall Height (in): 28.03
TechSpec Overall Length (in): 19.25
TechSpec Overall Width (in): 2.15
TechSpec Rows: 2
