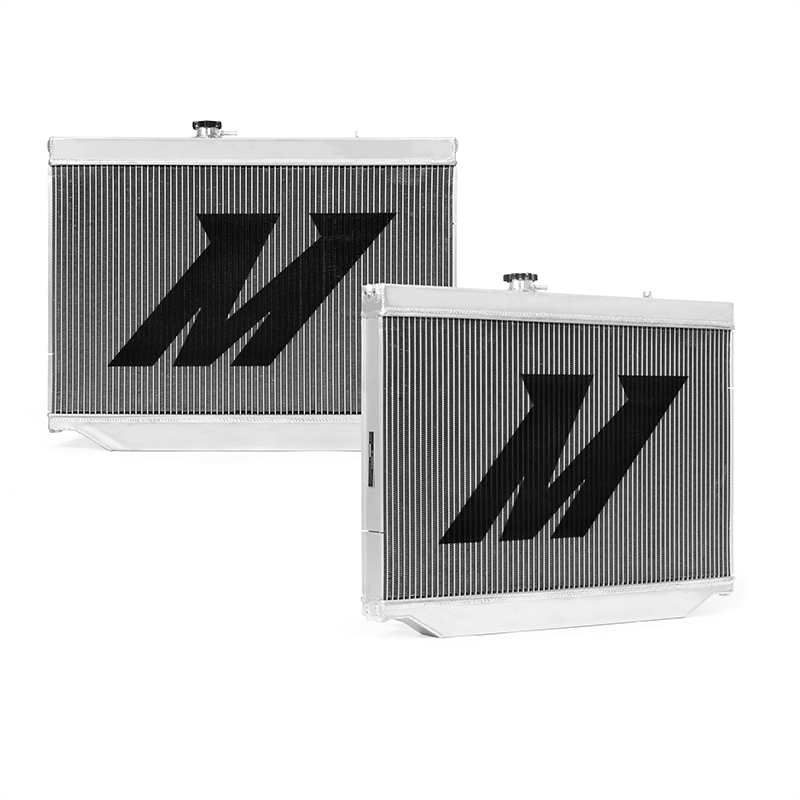

Performance Aluminum Radiator, fits Toyota Land Cruiser J100 (1HZ 1FE) 1998-2007 - Mishimoto - MMRAD-LCR-98

If you're looking to upgrade your Toyota J100/J105 cooling look no further! The Mishimoto 1998-2007 Toyota Land Cruiser J100/J105 Performance Aluminium Radiator is an ideal upgrade for the brittle stock radiator. Our radiator boasts a 19% greater core volume and 29.5% greater coolant capacity to improve cooling efficiency. The Mishimoto Toyota Land Cruiser J100/J105 radiator features durable aircraft-quality aluminium end tanks that are precision TIG-welded to the 56mm-thick core for superior durability. This Land Cruiser radiator also includes a Magnetic Drain Plug to capture metal debris in the cooling system as well as a 1.3 bar high-pressure radiator cap. As with every Mishimoto aluminium radiator this 1998-2007 Toyota Land Cruiser J100/J105 radiator includes the Mishimoto Lifetime Warranty ensuring superior Products quality and craftsmanship for as long as you own the radiator.
Full aluminum construction including durable TIG-welded end tanks
56mm thick two-row core for powerful cooling
29.5-percent increase in fluid capacity over stock radiator for greater cooling efficiency
Drain Plug Thread Size: M12 - 1.5
Core Finish: Uncoated
Drain Plug Included: Yes
Overall Height: 22.25 IN
Core Height: 16.93 IN
Core Thickness: 2.2 IN
Core Material: Aluminum
Outlet Location: Bottom Right
Transmission Oil Cooler Included: Yes
Transmission Oil Cooler Fitting Type: N/A
Radiator Cap Included: Yes
Core Length: 27.64 IN
Core Row Quantity: 2
Inlet Diameter: 0 IN
Inlet Location: Top Left
Outlet Diameter: 0 IN
Fluid Capacity: 3.9 GA
Down Flow Or Cross Flow Type: Down Flow
Overall Length: 28 IN
Overall Width: 6.1 IN
Install Difficulty: 3
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct fit for 1998-2007 Toyota Land Cruiser J100/J105 with 4.2L or 4.5L engines
SellingPoint02: Full aluminum construction including durable TIG-welded end tanks
SellingPoint03: 56mm thick two-row core for powerful cooling
SellingPoint04: 29.5-percent increase in fluid capacity over stock radiator for greater cooling efficiency
SellingPoint05: 19-percent increase in core volume over stock radiator
SellingPoint06: Includes internal transmission cooler to fit with either manual or automatic transmissions
SellingPoint07: Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant providing a safer and more efficient system
SellingPoint08: Mishimoto Lifetime Warranty
SellingPoint09: N/A
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: 1998-2007 Toyota Land Cruiser J100/J105 w/ 1HZ 4.2L Diesel--1998-2007 Toyota Land Cruiser J100/J105 w/ 1FZ 4.5L Petrol
TechSpec Chassis Codes: J100--J105
TechSpec Core Height (in): 16.93
TechSpec Core Length (in): 27.64
TechSpec Core Thickness (in): 2.2
TechSpec DPI: N/A
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec Engine Codes: 1HZ 4.2L Diesel--1FZ 4.5L Petrol
TechSpec Fluid Capacity (gal): 3.9
TechSpec Includes: Mishimoto Aluminum Radiator-- Mishimoto Radiator Cap-- Foam Strip--Mounting Hardware--Mishimoto Lifetime Warranty
TechSpec Inlet (in): N/A
TechSpec Material: Aluminum
TechSpec Note: This radiator uses mounting brackets that are separate from the radiator and the vehicle. The Mishimoto radiator is designed to work with the OEM brackets. If you are replacing an aftermarket radiator you may need to purchase OEM brackets to fit the Mishimoto radiator.
TechSpec Outlet (in): N/A
TechSpec Overall Height (in): 22.25
TechSpec Overall Length (in): 28
TechSpec Overall Width (in): 6.1
TechSpec Rows: 2
