3-Row Performance Aluminum Radiator, fits Toyota Land Cruiser FJ40 1958-1984 - Mishimoto - MMRAD-LCR-58X

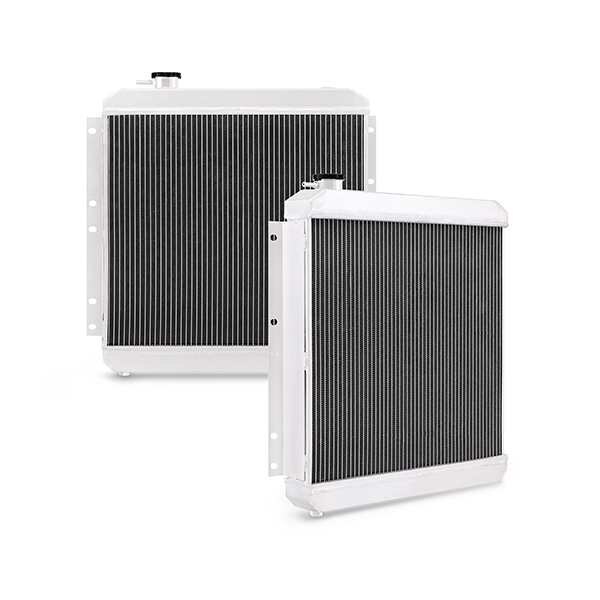

If you're looking to upgrade your Toyota FJ40 parts look no further! The Mishimoto 1958--1984 Toyota Land Cruiser FJ40 radiator is an ideal upgrade for the brittle stock radiator and provides your Cruiser with enhanced reliability and improved cooling efficiency. The Mishimoto FJ40 radiator is manufactured using durable aircraft-quality aluminum end tanks precision TIG-welded to an efficient brazed aluminum core. The inlet and outlets provide precise leak-free connections. This Land Cruiser radiator also includes a Magnetic Drain Plug which effectively removes metal fragments circulating in the cooling system. As with every Mishimoto aluminum radiator this FJ40 radiator includes the Mishimoto Lifetime Warranty ensuring superior product quality and craftsmanship.
All-aluminum construction with durable TIG-welded end tanks
Features an internal transmission cooler to provide optimal fluid temperatures for automatic transmissions
3-row core
Drain Plug Thread Size: M12 - 1.5
Core Finish: Uncoated
Drain Plug Included: Yes
Overall Height: 20 IN
Core Height: 17.1 IN
Core Thickness: 2 IN
Core Material: Aluminum
Outlet Location: Bottom Right
Transmission Oil Cooler Included: Yes
Transmission Oil Cooler Fitting Type: N/A
Radiator Cap Included: Yes
Core Length: 19.4 IN
Core Row Quantity: 3
Inlet Diameter: 1.5 IN
Inlet Location: Top Left
Outlet Diameter: 1.5 IN
Fluid Capacity: 4.99 GA
Down Flow Or Cross Flow Type: Down Flow
Overall Length: 22.75 IN
Overall Width: 5.1 IN
Install Difficulty: N/A
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: All-aluminum construction with durable TIG-welded end tanks
SellingPoint02: Features an internal transmission cooler to provide optimal fluid temperatures for automatic transmissions
SellingPoint03: 3-row core
SellingPoint04: Increased coolant capacity and superior heat dissipation
SellingPoint05: Billet aluminum fill neck
SellingPoint06: Brazed aluminum core
SellingPoint07: Includes magnetic drain plug to capture metallic debris and fragments in cooling system
SellingPoint08: Mishimoto Lifetime Warranty
SellingPoint09: N/A
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: 1958-1984 Toyota Land Cruiser FJ40 (3.9L V6 4.2L V6)--1958-1980 Toyota Land Cruiser (3.9L V6 4.2L V6)
TechSpec Chassis Codes: N/A
TechSpec Core Height (in): 17.1
TechSpec Core Length (in): 19.4
TechSpec Core Thickness (in): 2
TechSpec DPI: 180
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec Engine Codes: (3.9L) V6--(4.2L) V6
TechSpec Fluid Capacity (gal): 4.99
TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty
TechSpec Inlet (in): 1.5
TechSpec Material: Aluminum
TechSpec Note: Transmission Cooler Thread Info:--On Radiator: Female 1/4-inch BSPP
TechSpec Outlet (in): 1.5
TechSpec Overall Height (in): 20
TechSpec Overall Length (in): 22.75
TechSpec Overall Width (in): 5.1
TechSpec Rows: 3
