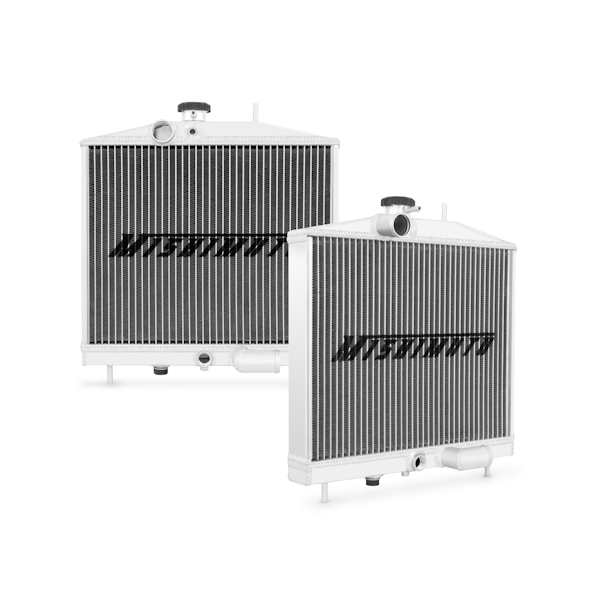

Performance Aluminum Radiator, fits Honda Civic EG W/K-Swap 1992-1995 - Mishimoto - MMRAD-K20-EG

Mishimoto is proud to release a brand new radiator for EG chassis Civics with K-Series engine swaps.Our half size radiator is designed specifically for your swapped vehicle with high performance driving in mind.This radiator is a direct drop in unit that does not require any trimming drilling or mount alterations.The Mishimoto radiator will simplify a cooling solution for your K-swap and includes ports for the fan switch and coolant temperature sensor. All Mishimoto radiators include a high pressure 1.3 bar Mishimoto radiator cap and a lifetime warranty.
Designed specifically for the 1992-1995 Honda Civic EG chassis with K-series engine swap
Provides a bolt-in cooling solution simplifying the engine swap process
Full aluminum construction with durable TIG-welded end tanks
Drain Plug Thread Size: M12 - 1.5
Core Finish: Uncoated
Drain Plug Included: Yes
Overall Height: 15.04 IN
Core Height: 11.61 IN
Core Thickness: 1.57 IN
Core Material: Aluminum
Outlet Location: Bottom Center
Transmission Oil Cooler Included: No
Transmission Oil Cooler Fitting Type: N/A
Radiator Cap Included: Yes
Core Length: 14.88 IN
Core Row Quantity: 2
Inlet Diameter: 1.25 IN
Inlet Location: Top Left
Outlet Diameter: 1.25 IN
Fluid Capacity: 0 GA
Down Flow Or Cross Flow Type: Down Flow
Overall Length: 16.73 IN
Overall Width: 4.02 IN
Install Difficulty: 3
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Designed specifically for the 1992-1995 Honda Civic EG chassis with K-series engine swap
SellingPoint02: Provides a bolt-in cooling solution simplifying the engine swap process
SellingPoint03: Full aluminum construction with durable TIG-welded end tanks
SellingPoint04: Features a two-row 1.57-in thick efficient brazed aluminum core
SellingPoint05: Substantial fluid capacity and optimal heat dissipation
SellingPoint06: Provides efficient heat exchange for naturally aspirated and forced induction vehicles
SellingPoint07: Includes threaded fan switch port to function with stock sensor
SellingPoint08: Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant providing a safer and more efficient system
SellingPoint09: Included magnetic drain plug captures harmful metal debris to safeguard cooling system performance
SellingPoint10: Mishimoto Lifetime Warranty
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: 1992-1995 Honda Civic EG--1993-1997 Honda Del Sol
TechSpec Chassis Codes: N/A
TechSpec Core Height (in): 11.61
TechSpec Core Length (in): 14.88
TechSpec Core Thickness (in): 1.57
TechSpec DPI: N/A
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec Engine Codes: K20
TechSpec Fluid Capacity (gal): N/A
TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug w/ Dowty Oil Seal--Mishimoto Lifetime Warranty
TechSpec Inlet (in): 1.25
TechSpec Material: N/A
TechSpec Note: N/A
TechSpec Outlet (in): 1.25
TechSpec Overall Height (in): 15.04
TechSpec Overall Length (in): 16.73
TechSpec Overall Width (in): 4.02
TechSpec Rows: 2
