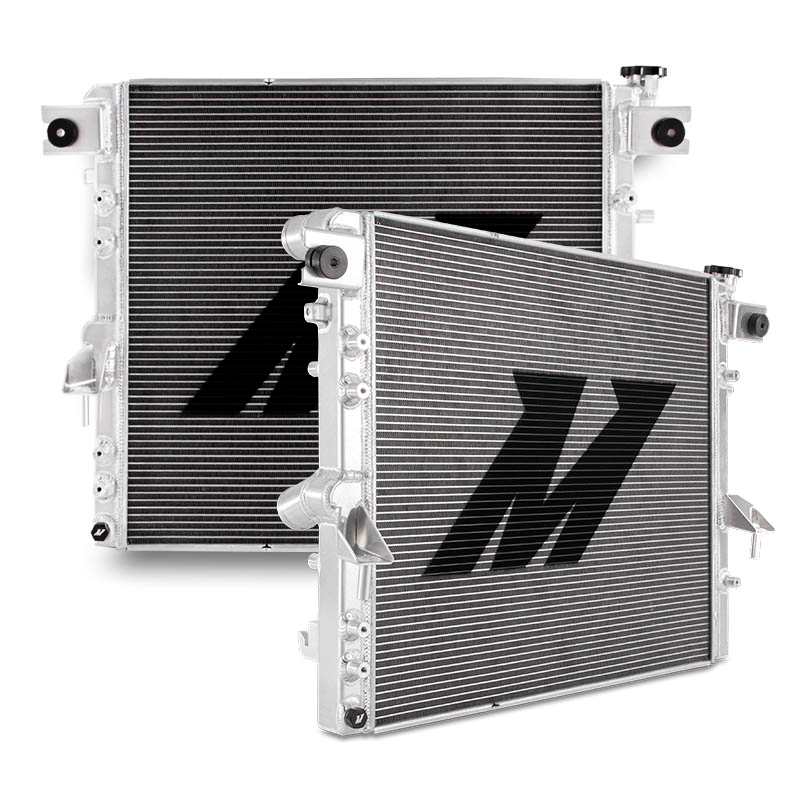

Performance Aluminum Radiator, fits Jeep Wrangler JK HEMI Conversion 2007-2018 - Mishimoto - MMRAD-JK-HEMI

What's better than a Wrangler JK that can go anywhere any time? A JK that can go anywhere anytime with a HEMI under the hood. And even better than a JK with a HEMI under the hood is a JK with a cool HEMI under the hood. That's why We've developed a performance aluminum radiator for your HEMI-swapped 2007-2018 Jeep Wrangler JK. This radiator includes all the benefits of our direct-fit JK aluminum performance radiator including an 18-percent greater core volume fin area and external tube area and a 13-percent increase in coolant capacity over the stock radiator. For even more cooling this radiator utilizes a dual-pass design to keep coolant in the radiator longer. Of course reliability is also a major concern for any Wrangler owner. Mishimoto has devoted countless hours of RandD to bring the JK market a stronger more reliable radiator. Our HEMI conversion radiator features extruded internally strutted tubes to help combat flex within the core. These strutted tubes provide the radiator with greater rigidity and durability reducing the potential for cracks and leaks. Just like our other Wrangler JK products this radiator is a direct fit and accommodates the stock JK radiator fan A/C condenser and transmission cooler. As with all our products this 2007-2018 Jeep Wrangler JK HEMI Conversion Performance Aluminum Radiator is backed by Mishimoto's Lifetime Warranty for unparalleled peace of mind.
Extruded tubes with internal struts for increased strength and pressure tolerance
18-percent increase in core volume fin surface area and external tube area over stock Wrangler radiator
13-percent increase in coolant capacity over stock Wrangler radiator
Drain Plug Thread Size: M12 - 1.5
Core Finish: Uncoated
Drain Plug Included: Yes
Overall Height: 21.9 IN
Core Height: 20.66 IN
Core Thickness: 1.26 IN
Core Material: Aluminum
Outlet Location: Right
Transmission Oil Cooler Included: No
Transmission Oil Cooler Fitting Type: N/A
Radiator Cap Included: Yes
Core Length: 22 IN
Core Row Quantity: 1
Inlet Diameter: 1.6 IN
Inlet Location: Top Right
Outlet Diameter: 1.6 IN
Fluid Capacity: 0 GA
Down Flow Or Cross Flow Type: Cross Flow
Overall Length: 29.6 IN
Overall Width: 6.2 IN
Install Difficulty: 3
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct fit for the 2007-2018 Jeep Wrangler JK with HEMI conversion
SellingPoint02: Extruded tubes with internal struts for increased strength and pressure tolerance
SellingPoint03: 18-percent increase in core volume fin surface area and external tube area over stock Wrangler radiator
SellingPoint04: 13-percent increase in coolant capacity over stock Wrangler radiator
SellingPoint05: Dual-pass for effective cooling
SellingPoint06: 100-percent brazed aluminum core
SellingPoint07: TIG-welded to perfection
SellingPoint08: Includes 19 psi high-pressure radiator cap effectively raising the boiling point of engine coolant and providing a safer more efficient system
SellingPoint09: Includes magnetic drain plug to capture any metallic debris/fragments in your cooling system
SellingPoint10: Mishimoto Lifetime Warranty
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: 2007-2018 Jeep Wrangler JK w/ HEMI conversion
TechSpec Chassis Codes: JK
TechSpec Core Height (in): 20.66
TechSpec Core Length (in): 22
TechSpec Core Thickness (in): 1.26
TechSpec DPI: N/A
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec Engine Codes: N/A
TechSpec Fluid Capacity (gal): N/A
TechSpec Includes: Mishimoto Radiator-- Magnetic Drain Plug--(2) Rubber Isolator Bushings--Mounting Hardware--Mishimoto Lifetime Warranty
TechSpec Inlet (in): 1.6
TechSpec Material: Aluminum
TechSpec Note: Correct hoses for your specific conversion must be purchased separately. Please refer to your conversion manufacturer for recommended part numbers.
TechSpec Outlet (in): 1.6
TechSpec Overall Height (in): 21.9
TechSpec Overall Length (in): 29.6
TechSpec Overall Width (in): 6.2
TechSpec Rows: 1
