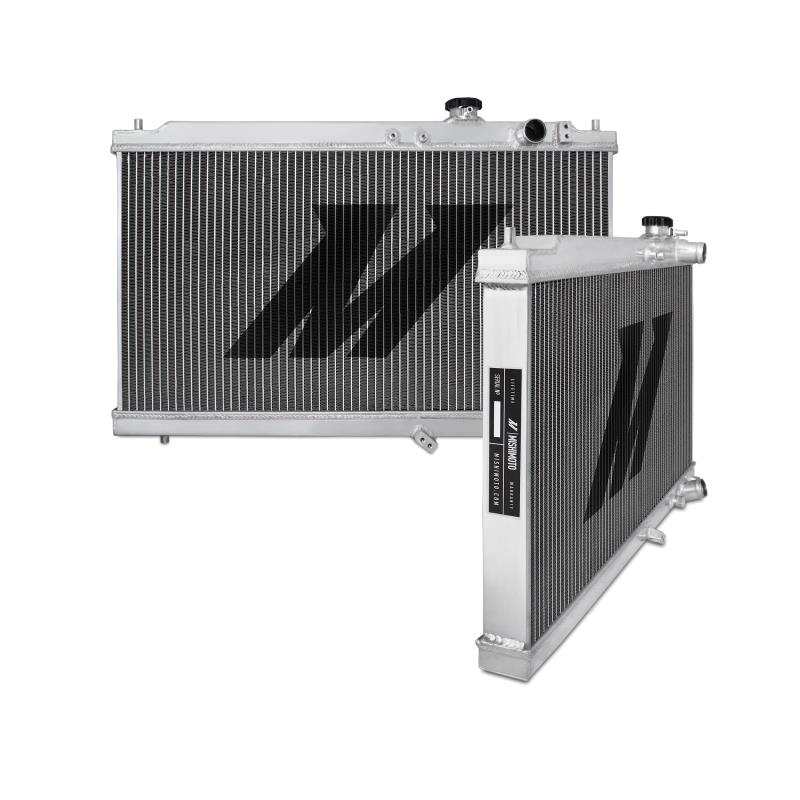

X-Line Performance Aluminum Radiator, fits Acura Integra 1994-2001 - Mishimoto - MMRAD-INT-94X

Whether you take your Integra to the track or use it as a daily driver an upgraded cooling system is essential in maintaining a well balanced efficiently running engine.The Mishimoto performance aluminum radiator is the ideal upgrade to the stock Integra radiator especially for those looking to enhance the overall performance and lifetime of their engine.The triple core of the X-Line radiator is 25-percent thicker than a standard Mishimoto radiator.Thanks to a direct OEM fit installation is effortless with no cutting or modification is required.All Mishimoto Integra radiators are designed and engineered to maximize cooling efficiency and most importantly protect your Integra from overheating.All Mishimoto radiators come with a high pressure 1.3 bar Mishimoto radiator cap and a great warranty.This radiator is a perfect match for the Mishimoto 1994-2001 Integra hose kit.
Premium radiator has 3-row core for improved strength and reliability.
16-percent thinner-than-stock tubes allow for more surface contact
Greater density of rows for higher cooling capacity.
Drain Plug Thread Size: M12 - 1.5
Core Finish: Uncoated
Drain Plug Included: Yes
Overall Height: 26.5 IN
Core Height: 25.9 IN
Core Thickness: 2.05 IN
Core Material: Aluminum
Outlet Location: Bottom Right
Transmission Oil Cooler Included: No
Transmission Oil Cooler Fitting Type: N/A
Radiator Cap Included: Yes
Core Length: 13.78 IN
Core Row Quantity: 3
Inlet Diameter: 1.25 IN
Inlet Location: Top Right
Outlet Diameter: 1.25 IN
Fluid Capacity: 0 GA
Down Flow Or Cross Flow Type: Down Flow
Overall Length: 18.3 IN
Overall Width: 2.55 IN
Install Difficulty: 3
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Premium radiator has 3-row core for improved strength and reliability.
SellingPoint02: 16-percent thinner-than-stock tubes allow for more surface contact
SellingPoint03: Greater density of rows for higher cooling capacity.
SellingPoint04: More contact points for additional heat transfer.
SellingPoint05: 3-row design creates more air turbulence maximizing cooling efficiency.
SellingPoint06: Includes magnetic drain plug
SellingPoint07: Includes a 1.3 Bar High-Pressure Radiator Cap
SellingPoint08: Lifetime warranty
SellingPoint09: N/A
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: 1994-2001 Acura Integra GSR--1995-1996 Acura Integra SE--1997-2001 Acura Integra Type-R--1994-1998 Acura Integra RS--1997-2001 Acura Integra GS
TechSpec Chassis Codes: DC2 - Integra GSR/Type R 3dr--DC4 - Integra LS/SE/GS/RS 3dr--DB7 - Integra LS/GS/RS 4dr--DB8 - Integra GSR 4dr
TechSpec Core Height (in): 25.9
TechSpec Core Length (in): 13.78
TechSpec Core Thickness (in): 2.05
TechSpec DPI: 1741/1742
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec Engine Codes: B18b1--B18c1--B18c5
TechSpec Fluid Capacity (gal): N/A
TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty
TechSpec Inlet (in): 1.25
TechSpec Material: Aluminum
TechSpec Note: This item is for Manual Transmission vehicles. For automatic applications please purchase optional Mishimoto Universal Transmission Cooler Kit .--------This item is not compatible the OEM or Mishimoto Fan Shroud. Mishimoto recommends the purchase of the Mishimoto electric fans and the Mishimoto fan mount kits for proper fitment.
TechSpec Outlet (in): 1.25
TechSpec Overall Height (in): 26.5
TechSpec Overall Length (in): 18.3
TechSpec Overall Width (in): 2.55
TechSpec Rows: 3
