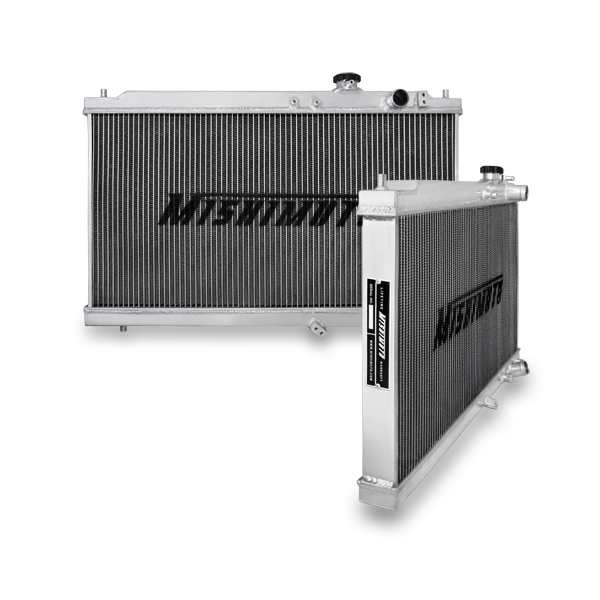

Performance Aluminum Radiator, fits Acura Integra 1994-2001 - Mishimoto - MMRAD-INT-94

Whether you take your Integra to the track or use it as a daily driver an upgraded cooling system is essential in maintaining a well balanced efficiently running engine.The Mishimoto performance aluminum radiator is the ideal upgrade to the stock Integra radiator especially for those looking to enhance the overall performance and lifetime of their engine.With a direct OEM fit installation is effortless no cutting or modification is required.All Mishimoto Integra radiators are designed and engineered to maximize cooling efficiency and most importantly protect your Integra from overheating.All Mishimoto radiators come with a high pressure 1.3 bar Mishimoto radiator cap and a great warranty.A perfect match for the Mishimoto 1994-2001 Integra hose kit.
Full aluminum construction with durable TIG-welded end tanks
Features a two-row 1.65-in thick extremely efficient brazed aluminum core
Increased fluid capacity and superior heat dissipation
Drain Plug Thread Size: M12 - 1.5
Core Finish: Uncoated
Drain Plug Included: Yes
Overall Height: 26.5 IN
Core Height: 25.9 IN
Core Thickness: 1.65 IN
Core Material: Aluminum
Outlet Location: Bottom Right
Transmission Oil Cooler Included: No
Transmission Oil Cooler Fitting Type: N/A
Radiator Cap Included: Yes
Core Length: 13.78 IN
Core Row Quantity: 2
Inlet Diameter: 1.25 IN
Inlet Location: Top Right
Outlet Diameter: 1.25 IN
Fluid Capacity: 1.4 GA
Down Flow Or Cross Flow Type: Down Flow
Overall Length: 18.3 IN
Overall Width: 2.15 IN
Install Difficulty: 3
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct fit for the 1994-2001 Acura Integra 1.8L
SellingPoint02: Full aluminum construction with durable TIG-welded end tanks
SellingPoint03: Features a two-row 1.65-in thick extremely efficient brazed aluminum core
SellingPoint04: Increased fluid capacity and superior heat dissipation
SellingPoint05: Provides optimal heat exchange for stock and modified vehicles
SellingPoint06: Ideal for use on the street or track
SellingPoint07: Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant providing a safer and more efficient system
SellingPoint08: Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
SellingPoint09: Mishimoto Lifetime Warranty
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: 1994-2001 Acura Integra GSR--1995-1996 Acura Integra SE--1997-2010 Acura Integra Type-R--1994-1998 Acura Integra RS--1997-2001 Acura Integra GS
TechSpec Chassis Codes: DC2 - Integra GSR/Type R 3dr--DC4 - Integra LS/SE/GS/RS 3dr--DB7 - Integra LS/GS/RS 4dr--DB8 - Integra GSR 4dr
TechSpec Core Height (in): 25.9
TechSpec Core Length (in): 13.78
TechSpec Core Thickness (in): 1.65
TechSpec DPI: 1741/1742
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec Engine Codes: B18b1--B18c1--B18c5
TechSpec Fluid Capacity (gal): 1.4
TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty
TechSpec Inlet (in): 1.25
TechSpec Material: N/A
TechSpec Note: This item is for Manual Transmission vehicles. For automatic applications please purchase optional Mishimoto Universal Transmission Cooler Kit .----This item is not directly compatible the OEM fan shroud. The Mishimoto fan shroud can be used in conjunction with the OEM exhaust manifold. If an aftermarket exhaust manifold is installed please purchase the optional Mishimoto electric fans and the Mishimoto fan mount kits.
TechSpec Outlet (in): 1.25
TechSpec Overall Height (in): 26.5
TechSpec Overall Length (in): 18.3
TechSpec Overall Width (in): 2.15
TechSpec Rows: 2
