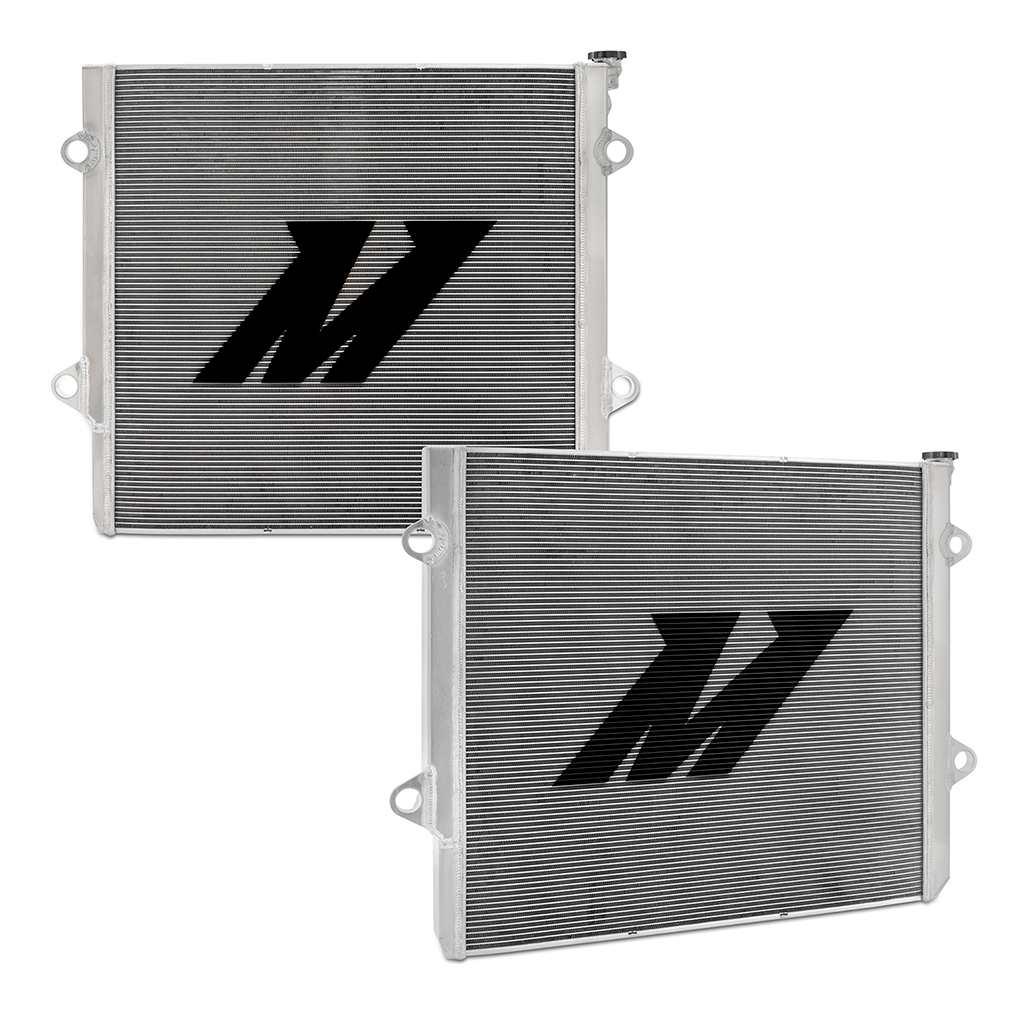

Performance Aluminum Radiator, fits Lexus GX460 4.6L V8 2010-2023 - Mishimoto - MMRAD-GX460-10

Whether you are out on the trails wheeling or taking down miles along the local interstate upgrading your radiator to the Mishimoto performance aluminum radiator for the 2010-2023 Lexus GX460 is a smart investment for improving your vehicle's performance and longevity. For those who use their 2010-2023 Lexus GX460 for off-roading this radiator can handle the additional strain and heat generated during these activities providing better reliability and performance in rugged conditions. Over time the factory radiator can develop issues such as leaks corrosion or clogging. Upgrading to a new Mishimoto performance aluminum radiator can prevent these problems before they occur saving you from potential breakdowns on the trail. Our direct-fit radiator features a 40mm thick core for increased cooling capacity and a 40% core volume increase over stock. Constructed entirely from aluminum with durable TIG-welded end tanks it includes an efficient in-tank liquid-to-liquid stacked plate transmission cooler for optimal transmission fluid temperature control. The radiator also comes with a magnetic drain plug to capture metallic debris in your cooling system and is backed by the Mishimoto Lifetime Warranty for peace of mind.
40mm thick core provides increased cooling capacity
Full aluminum construction with durable TIG-welded end tanks
Billet aluminum fill neck
Drain Plug Thread Size: M12 - 1.5
Core Finish: Uncoated
Drain Plug Included: Yes
Overall Height: 26.75 IN
Core Height: 25.22 IN
Core Thickness: 1.57 IN
Core Material: Aluminum
Outlet Location: Bottom Right
Transmission Oil Cooler Included: Yes
Transmission Oil Cooler Fitting Type: N/A
Radiator Cap Included: Yes
Core Length: 25.59 IN
Core Row Quantity: 1
Inlet Diameter: 1.5 IN
Inlet Location: Top Left
Outlet Diameter: 1.5 IN
Fluid Capacity: 3.3 GA
Down Flow Or Cross Flow Type: Cross Flow
Overall Length: 32.66 IN
Overall Width: 3.82 IN
Install Difficulty: 3
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct Fit for Lexus GX460 4.6L V8 2010-2023
SellingPoint02: 40mm thick core provides increased cooling capacity
SellingPoint03: Full aluminum construction with durable TIG-welded end tanks
SellingPoint04: Billet aluminum fill neck
SellingPoint05: Efficient in-tank liquid-to-liquid stacked plate transmission cooler provides optimal control of transmission fluid temperatures
SellingPoint06: Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
SellingPoint07: Mishimoto Lifetime Warranty
SellingPoint08: N/A
SellingPoint09: N/A
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: 2010-2023 Lexus GX460 V8 4.6L
TechSpec Chassis Codes: J150--N280
TechSpec Core Height (in): 25.22
TechSpec Core Length (in): 25.59
TechSpec Core Thickness (in): 1.57
TechSpec DPI: 13210
TechSpec Drain Plug Thread Size: M12X1.5
TechSpec Engine Codes: 1UR-FE
TechSpec Fluid Capacity (gal): 3.3
TechSpec Includes: (1) Aluminum Radiator-- (1) 1.3 Bar Radiator Cap-- (3) M6 X 1.0 X 12 Hex Head Bolts-- Mishimoto Lifetime Warranty
TechSpec Inlet (in): 1.5
TechSpec Material: Aluminum
TechSpec Note: N/A
TechSpec Outlet (in): 1.5
TechSpec Overall Height (in): 26.75
TechSpec Overall Length (in): 32.66
TechSpec Overall Width (in): 3.82
TechSpec Rows: 1
