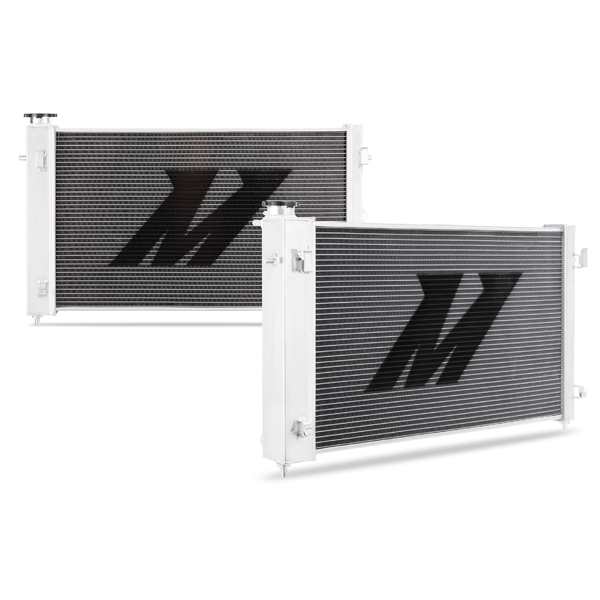

Performance Aluminum Radiator, fits Pontiac GTO 2005-2006 - Mishimoto - MMRAD-GTO-05

Keep your Pontiac GTO on the road and out of the shop by upgrading to the Mishimoto Pontiac GTO Performance Aluminum Radiator. Stock plastic radiators are prone to significant wear from constant temperature variation. Our radiator is constructed from high-quality aluminum for optimal heat dissipation and superior reliability. This radiator features a large efficient and robust 2-row brazed aluminum core which provides optimal coolant temperatures on the street and track. The Mishimoto Pontiac GTO Performance Aluminum Radiator features an in-tank transmission fluid cooler compatible with stock transmission cooler lines making this a true bolt-on performance radiator. This radiator includes a Mishimoto Magnetic Oil Drain Plug M12 x 1.5 which removes any metal fragments from your coolant system. For further cooling system protection this radiator includes the Mishimoto 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of your coolant providing a safer and more efficient system. This radiator also features an increase in capacity of 0.64 L of fluid and provides a proven reduction in coolant temperatures of 15 degrees Fahrenheit. Whether you are making a pull down the highway or cruising through the mountains the Mishimoto Pontiac GTO Performance Aluminum Radiator will keep your GTO cool. As with all our products this radiator includes the Mishimoto Lifetime Warranty ensuring superior product quality and craftsmanship.
Reduces coolant temperatures by 15 F (6 C)
Large two-row brazed aluminum core increases fluid capacity by 0.64 L and provides ideal coolant temperatures on and off the track
All-aluminum construction with TIG-welded end tanks provides optimal heat dissipation and reliability
Drain Plug Thread Size: M12 - 1.5
Core Finish: Uncoated
Drain Plug Included: Yes
Overall Height: 31.95 IN
Core Height: 17 IN
Core Thickness: 1.96 IN
Core Material: Aluminum
Outlet Location: Bottom Right
Transmission Oil Cooler Included: No
Transmission Oil Cooler Fitting Type: N/A
Radiator Cap Included: Yes
Core Length: 26.55 IN
Core Row Quantity: 2
Inlet Diameter: 1.375 IN
Inlet Location: Left
Outlet Diameter: 1.375 IN
Fluid Capacity: 3.58 GA
Down Flow Or Cross Flow Type: Cross Flow
Overall Length: 19.65 IN
Overall Width: 6.38 IN
Install Difficulty: 3
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct fit for the 2005-2006 Pontiac GTO
SellingPoint02: Reduces coolant temperatures by 15 F (6 C)
SellingPoint03: Large two-row brazed aluminum core increases fluid capacity by 0.64 L and provides ideal coolant temperatures on and off the track
SellingPoint04: All-aluminum construction with TIG-welded end tanks provides optimal heat dissipation and reliability
SellingPoint05: Applicable for both manual and automatic vehicles
SellingPoint06: Includes magnetic drain plug and 1.3 bar high-pressure radiator cap
SellingPoint07: Mishimoto Lifetime Warranty
SellingPoint08: N/A
SellingPoint09: N/A
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: 2005-2006 Vauxhall Monaro (5.7L/6.0L)--2005-2006 Holden Monaro (6.0L Engine Only)
TechSpec Chassis Codes: N/A
TechSpec Core Height (in): 17
TechSpec Core Length (in): 26.55
TechSpec Core Thickness (in): 1.96
TechSpec DPI: 2987
TechSpec Drain Plug Thread Size: M12
TechSpec Engine Codes: LS-2 (6.0L)
TechSpec Fluid Capacity (gal): 3.58
TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty
TechSpec Inlet (in): 1.375
TechSpec Material: N/A
TechSpec Note: This item is for manual and automatic transmission vehicles. This radiator will fit with Svede and other aftermarket OTR cold-air intakes.----Due to the added thickness of the Mishimoto radiator the clip securing the radiator cover to the electric fan shroud will need to be trimmed for proper fitment. The remaining clips securing the radiator cover to the core support will sufficiently secure it in position.
TechSpec Outlet (in): 1.375
TechSpec Overall Height (in): 31.95
TechSpec Overall Length (in): 19.65
TechSpec Overall Width (in): 6.38
TechSpec Rows: 2
