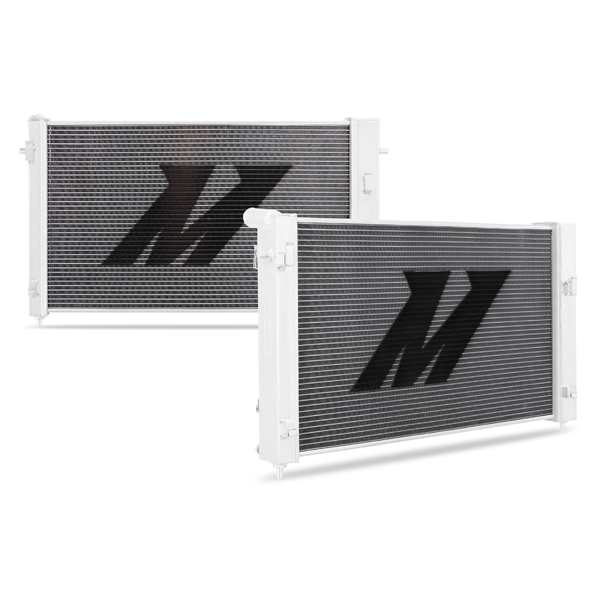

Performance Aluminum Radiator, fits Pontiac GTO 2004 - Mishimoto - MMRAD-GTO-04

Treat your modern muscle car to a dose of reliability with the Mishimoto Pontiac GTO Performance Aluminum Radiator. This radiator is engineered specifically for the 2004 Pontiac GTO with efficient cooling in mind. For optimal heat dissipation and reliability this radiator features an all-aluminum construction including TIG-welded end tanks and a fully brazed 2-row core. This large efficient and robust core provides an increase in capacity of 0.64 L and a reduction in coolant temperatures of 15+ degrees Fahrenheit making it ideal for use on and off the track. This radiator features an in-tank transmission fluid cooler compatible with stock transmission cooler lines making this a true bolt-in performance radiator. This radiator also includes the Mishimoto Magnetic Oil Drain Plug M12 x 1.5 which removes any metal fragments from your coolant system. Whether you are making a pass down the strip or kicking the back tires out at an autocross our radiator will keep your GTO cool. As with all our products this radiator includes the Mishimoto Lifetime Warranty ensuring superior product quality and craftsmanship.
Reduces coolant temperatures by 15 F (6 C)
Large two-row brazed aluminum core increases fluid capacity by 0.64 L and provides ideal coolant temperatures on and off the track
All-aluminum construction with TIG-welded end tanks provides optimal heat dissipation and reliability
Drain Plug Thread Size: M12 - 1.5
Core Finish: Uncoated
Drain Plug Included: Yes
Overall Height: 32.6 IN
Core Height: 17 IN
Core Thickness: 1.96 IN
Core Material: Aluminum
Outlet Location: Bottom Left
Transmission Oil Cooler Included: No
Transmission Oil Cooler Fitting Type: N/A
Radiator Cap Included: No
Core Length: 26.55 IN
Core Row Quantity: 2
Inlet Diameter: 1.375 IN
Inlet Location: Top Right
Outlet Diameter: 1.375 IN
Fluid Capacity: 3.58 GA
Down Flow Or Cross Flow Type: Cross Flow
Overall Length: 18.65 IN
Overall Width: 5.55 IN
Install Difficulty: 3
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct fit for the 2004 Pontiac GTO
SellingPoint02: Reduces coolant temperatures by 15 F (6 C)
SellingPoint03: Large two-row brazed aluminum core increases fluid capacity by 0.64 L and provides ideal coolant temperatures on and off the track
SellingPoint04: All-aluminum construction with TIG-welded end tanks provides optimal heat dissipation and reliability
SellingPoint05: Applicable for both manual and automatic vehicles
SellingPoint06: Includes magnetic drain plug
SellingPoint07: Mishimoto Lifetime Warranty
SellingPoint08: N/A
SellingPoint09: N/A
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: 2004 Vauxhall Monaro (5.7L Engine Only)--2001-2004 Holden Monaro (5.7L Engine Only)
TechSpec Chassis Codes: N/A
TechSpec Core Height (in): 17
TechSpec Core Length (in): 26.55
TechSpec Core Thickness (in): 1.96
TechSpec DPI: 2754
TechSpec Drain Plug Thread Size: M12
TechSpec Engine Codes: LS-1 (5.7L)
TechSpec Fluid Capacity (gal): 3.58
TechSpec Includes: Mishimoto Radiator--Magnetic Drain Plug--Mishimoto Lifetime Warranty
TechSpec Inlet (in): 1.375
TechSpec Material: N/A
TechSpec Note: This item is for manual and automatic transmission vehicles.----Due to the added thickness of the Mishimoto radiator the clip securing the radiator cover to the electric fan shroud will need to be trimmed for proper fitment. The remaining clips securing the radiator cover to the core support will sufficiently secure it in position.
TechSpec Outlet (in): 1.375
TechSpec Overall Height (in): 32.6
TechSpec Overall Length (in): 18.65
TechSpec Overall Width (in): 5.55
TechSpec Rows: 2
