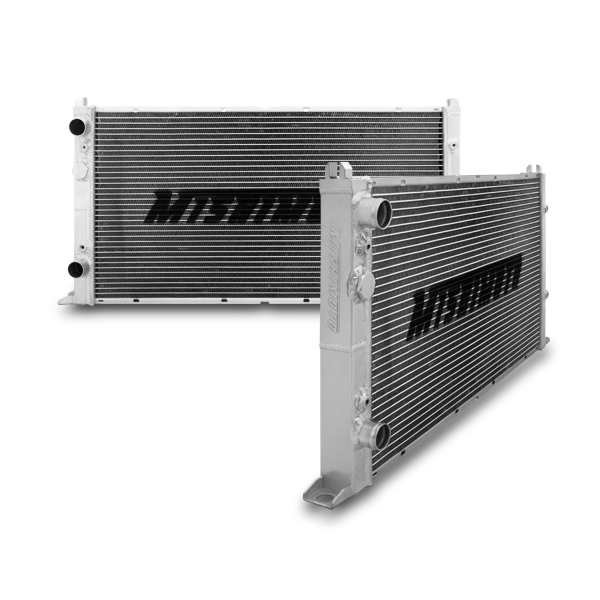

Performance Aluminum Radiator, fits Volkswagen Golf VR6 1994-1998 - Mishimoto - MMRAD-GLF-94

By replacing your current VW radiator with a Mishimoto performance aluminum radiator you will undoubtedly notice a cooler more efficient running engine.All Mishimoto Volkswagen Golf performance radiators are designed and engineered to maximize cooling efficiency protect your car from the overheating and boost overall engine functions.With its lightweight dual core 100-percent brazed aluminum and polished tank ends installing a direct OEM fit Mishimoto radiator is effortless no cutting or modification is required.
Full aluminum construction with durable TIG-welded end tanks
Features a two-row 1.57-in thick efficient brazed aluminum core
Increased fluid capacity and superior heat dissipation
Drain Plug Thread Size: M12 - 1.5
Core Finish: Uncoated
Drain Plug Included: Yes
Overall Height: 29.92 IN
Core Height: 13.7 IN
Core Thickness: 1.57 IN
Core Material: Aluminum
Outlet Location: Bottom Left
Transmission Oil Cooler Included: No
Transmission Oil Cooler Fitting Type: N/A
Radiator Cap Included: No
Core Length: 24.6 IN
Core Row Quantity: 2
Inlet Diameter: 1.25 IN
Inlet Location: Top Left
Outlet Diameter: 1.25 IN
Fluid Capacity: 2.99 GA
Down Flow Or Cross Flow Type: Cross Flow
Overall Length: 15.35 IN
Overall Width: 2.07 IN
Install Difficulty: 3
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct fit for the 1994-1998 Volkswagen Golf w/ VR6 Engine
SellingPoint02: Full aluminum construction with durable TIG-welded end tanks
SellingPoint03: Features a two-row 1.57-in thick efficient brazed aluminum core
SellingPoint04: Increased fluid capacity and superior heat dissipation
SellingPoint05: Provides optimal heat exchange for both stock and forced induction vehicles
SellingPoint06: Mishimoto Lifetime Warranty
SellingPoint07: N/A
SellingPoint08: N/A
SellingPoint09: N/A
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: 1994-1999 Jetta VR6
TechSpec Chassis Codes: Mk3A3
TechSpec Core Height (in): 13.7
TechSpec Core Length (in): 24.6
TechSpec Core Thickness (in): 1.57
TechSpec DPI: N/A
TechSpec Drain Plug Thread Size: N/A
TechSpec Engine Codes: AAA
TechSpec Fluid Capacity (gal): 2.99
TechSpec Includes: Mishimoto Radiator--Mishimoto Lifetime Warranty
TechSpec Inlet (in): 1.25
TechSpec Material: Aluminum
TechSpec Note: This item is for Manual Transmission vehicles. For automatic applications please purchase optional Mishimoto Universal Transmission Cooler Kit.
TechSpec Outlet (in): 1.25
TechSpec Overall Height (in): 29.92
TechSpec Overall Length (in): 15.35
TechSpec Overall Width (in): 2.07
TechSpec Rows: 2
