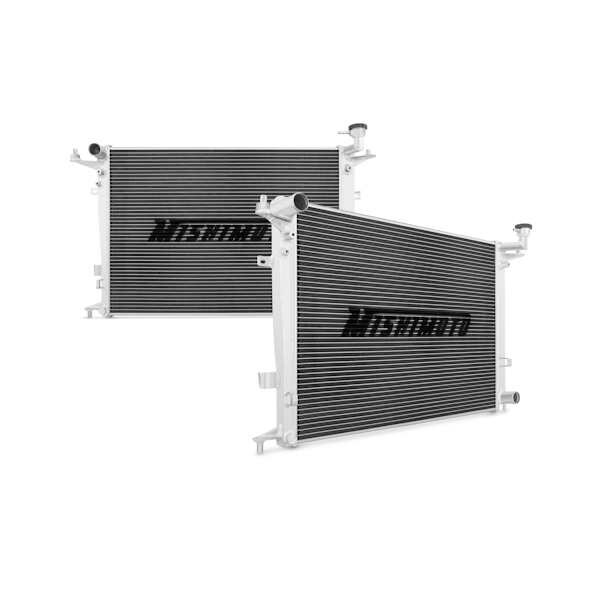

Performance Aluminum Radiator, fits Hyundai Genesis Coupe 3.8 2010-2012 - Mishimoto - MMRAD-GEN6-10

Mishimoto has developed a performance aluminum radiator available for the 2010-2012 Hyundai Genesis Coupe 3.8. This is the ideal upgrade to your stock 2010-2012 Hyundai Genesis Coupe 3.8 radiator. Having a high-displacement V6 produces a great amount of heat; by replacing your current 2010-2012 Hyundai Genesis Coupe 3.8 radiator with a top of the line Mishimoto performance aluminum radiator you will undoubtedly notice a cooler more efficient running engine.Our testing showed a 30 degree decrease in temperatures over stock.The new application is specifically designed and engineered as a direct OEM fit with no modification required for easy installation.
Full aluminum construction with durable TIG-welded end tanks
Features a two-row 1.34-in thick efficient brazed aluminum core
Increased fluid capacity and superior heat dissipation
Drain Plug Thread Size: M12 - 1.5
Core Finish: Uncoated
Drain Plug Included: Yes
Overall Height: 33.1 IN
Core Height: 19.21 IN
Core Thickness: 1.34 IN
Core Material: Aluminum
Outlet Location: Bottom Right
Transmission Oil Cooler Included: No
Transmission Oil Cooler Fitting Type: N/A
Radiator Cap Included: Yes
Core Length: 25.12 IN
Core Row Quantity: 2
Inlet Diameter: 1.46 IN
Inlet Location: Top Left
Outlet Diameter: 1.46 IN
Fluid Capacity: 2.87 GA
Down Flow Or Cross Flow Type: Cross Flow
Overall Length: 20.9 IN
Overall Width: 5.4 IN
Install Difficulty: 3
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct fit for the 2010-2012 Hyundai Genesis Coupe 3.8
SellingPoint02: Full aluminum construction with durable TIG-welded end tanks
SellingPoint03: Features a two-row 1.34-in thick efficient brazed aluminum core
SellingPoint04: Increased fluid capacity and superior heat dissipation
SellingPoint05: Proven 50-percent increase in radiator efficiency compared to the stock unit
SellingPoint06: Provides optimal heat exchange for both stock and forced induction vehicles
SellingPoint07: Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant providing a safer and more efficient system
SellingPoint08: Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
SellingPoint09: Mishimoto Lifetime Warranty
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: 2010-2012 Hyundai Genesis 3.8L V6
TechSpec Chassis Codes: BK
TechSpec Core Height (in): 19.21
TechSpec Core Length (in): 25.12
TechSpec Core Thickness (in): 1.34
TechSpec DPI: 13059
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec Engine Codes: 3.8L Lambda V6
TechSpec Fluid Capacity (gal): 2.87
TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Bleeder Plug--Mishimoto Lifetime Warranty
TechSpec Inlet (in): 1.46
TechSpec Material: Aluminum
TechSpec Note: This item is for Manual Transmission vehicles. For automatic applications please purchase optional Mishimoto Universal Transmission Cooler Kit.
TechSpec Outlet (in): 1.46
TechSpec Overall Height (in): 33.1
TechSpec Overall Length (in): 20.9
TechSpec Overall Width (in): 5.4
TechSpec Rows: 2
