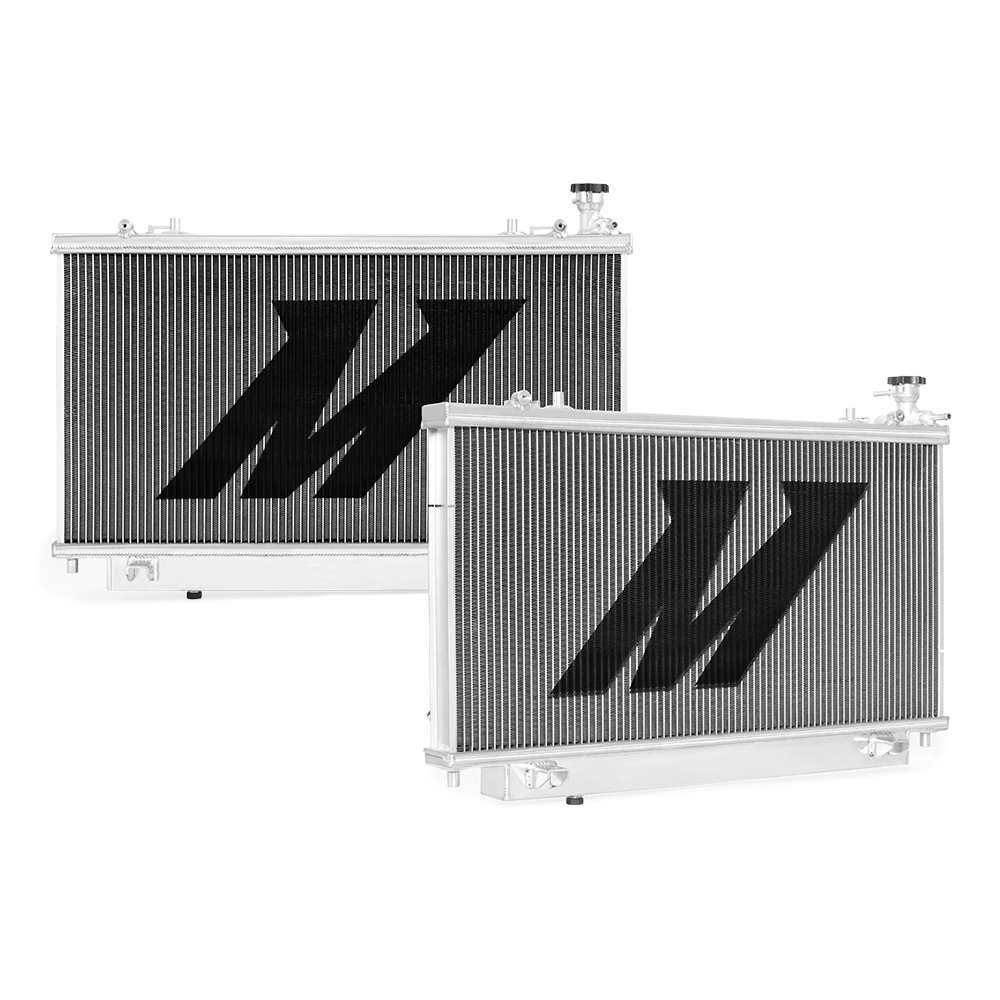

Performance Aluminum Radiator, fits Pontiac G8 2008-2009 - Mishimoto - MMRAD-G8-08

Give some extra cooling power to the V8 under the hood of your 2008-2009 Pontiac G8 with this Mishimoto Performance Aluminum Radiator. Our radiator replaces the stock thin core and plastic end tanks with a 2.2 inch-thick core and fully TIG-welded aluminum construction for maximum durability. Our custom-engineered two-row core provides all the cooling your 6.0L V8 needs for everyday commuting thrashing some back roads or a day at the track. The Mishimoto 2008-2009 Pontiac GTO Performance Aluminum Radiator is available in a polished finish and provides optimal cooling for both manual and automatic vehicles. This radiator also includes the Mishimoto Lifetime Warranty for a lifetime of worry-free cooling.
39-percent increase in core volume
All-aluminum construction including durable TIG-welded end tanks
Features a two-row 56mm-thick core for maximum cooling
Drain Plug Thread Size: M12 - 1.5
Core Finish: Uncoated
Drain Plug Included: Yes
Overall Height: 32.4 IN
Core Height: 15.1 IN
Core Thickness: 2.2 IN
Core Material: Aluminum
Outlet Location: Bottom Right
Transmission Oil Cooler Included: No
Transmission Oil Cooler Fitting Type: N/A
Radiator Cap Included: Yes
Core Length: 29.4 IN
Core Row Quantity: 2
Inlet Diameter: 0 IN
Inlet Location: Top Left
Outlet Diameter: 0 IN
Fluid Capacity: 0 GA
Down Flow Or Cross Flow Type: Down Flow
Overall Length: 15.1 IN
Overall Width: 5.9 IN
Install Difficulty: 3
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct fit for the 2008-2009 Pontiac G8
SellingPoint02: 39-percent increase in core volume
SellingPoint03: All-aluminum construction including durable TIG-welded end tanks
SellingPoint04: Features a two-row 56mm-thick core for maximum cooling
SellingPoint05: Provides effective temperature reduction on the street track or drag strip
SellingPoint06: Increased fluid capacity for improved heat dissipation
SellingPoint07: Efficient temperature regulation for both stock and modified vehicles
SellingPoint08: Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
SellingPoint09: Includes 19 PSI High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant providing a safer and more efficient system
SellingPoint10: Mishimoto Lifetime Warranty
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: 2008-2009 Pontiac G8 V8
TechSpec Chassis Codes: Zeta
TechSpec Core Height (in): 15.1
TechSpec Core Length (in): 29.4
TechSpec Core Thickness (in): 2.2
TechSpec DPI: N/A
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec Engine Codes: L98--L76--L77
TechSpec Fluid Capacity (gal): N/A
TechSpec Includes: Aluminum Radiator-- Radiator Cap-- Magnetic Drain Plug--Mishimoto Lifetime Warranty
TechSpec Inlet (in): N/A
TechSpec Material: Aluminum
TechSpec Note: This radiator has not been tested on 2009.5 or GXP models.
TechSpec Outlet (in): N/A
TechSpec Overall Height (in): 32.4
TechSpec Overall Length (in): 15.1
TechSpec Overall Width (in): 5.9
TechSpec Rows: 2
