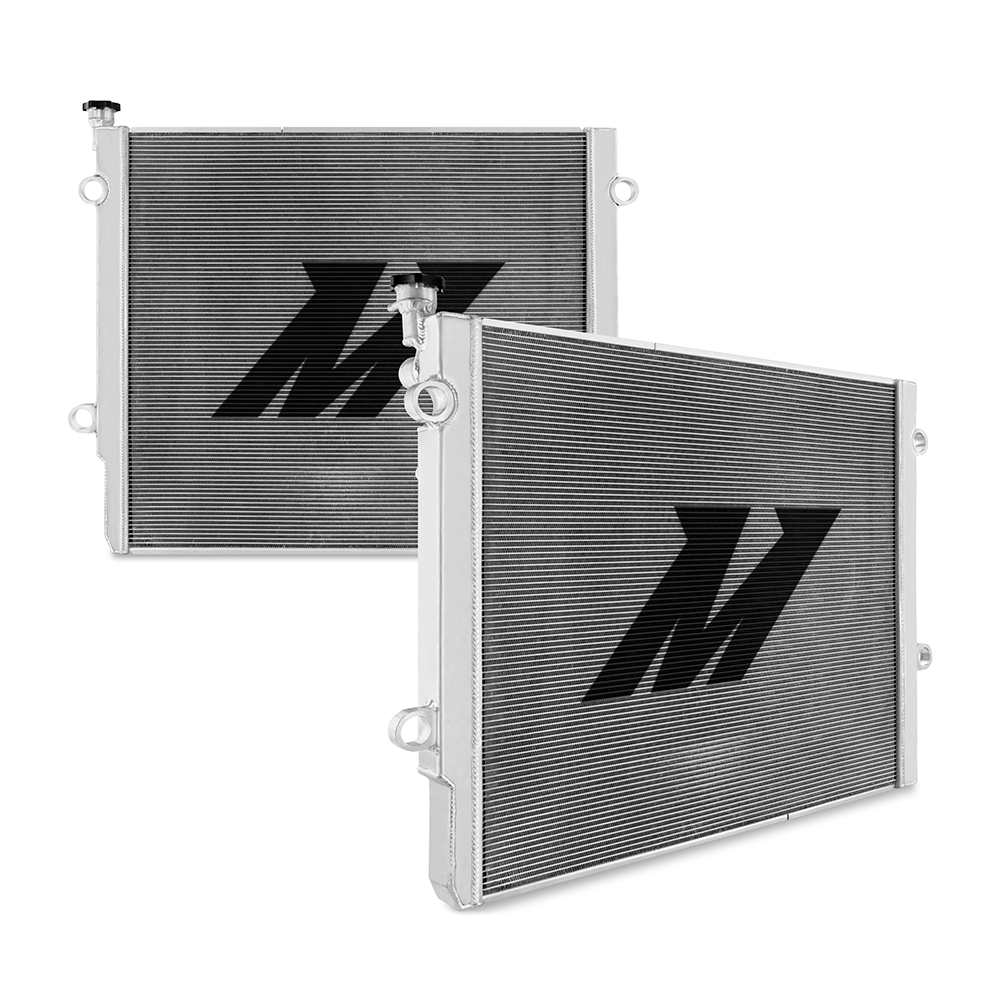

Performance Aluminum Radiator, fits Toyota FJ Cruiser 07-14 / 4Runner 03-09 - Mishimoto - MMRAD-FJ-07

The 2007-2014 Toyota FJ Cruiser has become a cult icon in the off-road community. Bred from a long line of four-wheel-drive vehicles designed to withstand the rigors of war the FJ Cruiser is over-engineered in true Toyota fashion to be one of the best off-road vehicles of all time. But the one thing Toyota couldn't engineer around is heat. The FJ's 4.0L 1GR-FE V6 engine pumps out up to 278 lb-ft of torque and a lot of heat especially when slowly crawling up steep rock faces. Low road speeds mean low airflow through the radiator which makes expelling all that heat difficult. But after 13 years of trails and fording muddy water low airflow can be compounded by clogged radiator fins. Unless you're somebody who religiously power washes your cooling stack every weekend chances are clogged fins are hampering your engine cooling. Not to mention it doesn't matter how much airflow your radiator gets if there's a tree branch through it. Luckily Mishimoto has the solution to both situations. Our aluminum radiator for the 2007-2014 Toyota FJ Cruiser is an easy solution to a leaking damaged or just plain beat up stock radiator. Our all-aluminum radiator boasts a 35-percent increase in core volume and a 153-percent increase in fin surface area. So even if you don't clean it every weekend our radiator will still cool your FJ better than the stock radiator. Our end tanks are made from solid aluminum and precision TIG-welded to the core to withstand anything the trail can throw at it. Like all our aluminum radiators this 2007-2014 FJ is covered by our Mishimoto Lifetime Warranty.
35-percent increase in core volume over stock radiator
153-percent increase in fin surface area over stock radiator
52-percent increase in coolant capacity
Drain Plug Thread Size: M12 - 1.5
Core Finish: Uncoated
Drain Plug Included: Yes
Overall Height: 0 IN
Core Height: 23.48 IN
Core Thickness: 1.41 IN
Core Material: Aluminum
Outlet Location: Bottom Left
Transmission Oil Cooler Included: No
Transmission Oil Cooler Fitting Type: N/A
Radiator Cap Included: Yes
Core Length: 25.59 IN
Core Row Quantity: 2
Inlet Diameter: 1.25 IN
Inlet Location: Top Right
Outlet Diameter: 1.25 IN
Fluid Capacity: 2.9 GA
Down Flow Or Cross Flow Type: Cross Flow
Overall Length: 0 IN
Overall Width: 0 IN
Install Difficulty: 2
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct fit for 2007-2014 Toyota FJ Cruiser and 2003-2009 Toyota 4Runner 4.0L
SellingPoint02: 35-percent increase in core volume over stock radiator
SellingPoint03: 153-percent increase in fin surface area over stock radiator
SellingPoint04: 52-percent increase in coolant capacity
SellingPoint05: Full aluminum construction with durable TIG-welded end tanks
SellingPoint06: Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
SellingPoint07: Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant providing a safer and more efficient system
SellingPoint08: Mishimoto Lifetime Warranty
SellingPoint09: N/A
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: 2007-2014 Toyota FJ Cruiser 4.0L--2003-2009 Toyota 4Runner 4.0L
TechSpec Chassis Codes: N/A
TechSpec Core Height (in): 23.48
TechSpec Core Length (in): 25.59
TechSpec Core Thickness (in): 1.41
TechSpec DPI: N/A
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec Engine Codes: N/A
TechSpec Fluid Capacity (gal): 2.9
TechSpec Includes: N/A
TechSpec Inlet (in): 1.25
TechSpec Material: Aluminum
TechSpec Note: N/A
TechSpec Outlet (in): 1.25
TechSpec Overall Height (in): N/A
TechSpec Overall Length (in): N/A
TechSpec Overall Width (in): N/A
TechSpec Rows: 2
