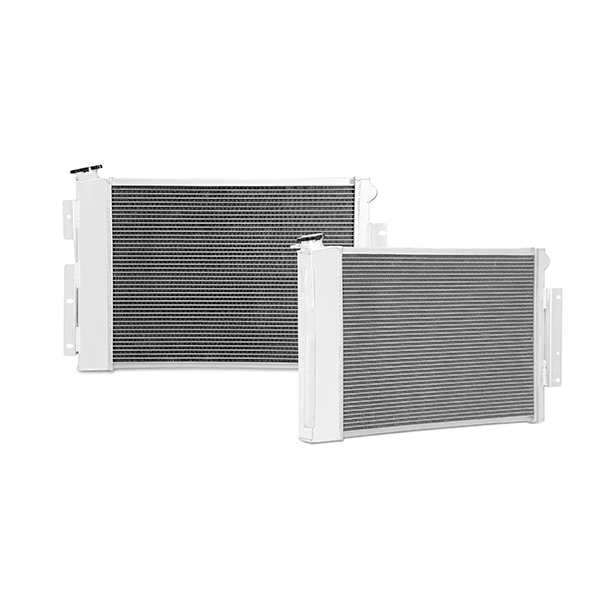

3-Row Performance Aluminum Radiator, fits Chevrolet Camaro 1967-1969 - Mishimoto - MMRAD-FIR-67X

An ideal upgrade for the brittle stock radiator the Mishimoto 1967--1969 Pontiac Firebird X-Line Performance Aluminum Radiator provides your car with enhanced reliability and improved cooling efficiency. Whether you want an all-aluminum 1968 Firebird radiator for daily driving or the extra cooling power from a 3-row 1969 Firebird radiator to take to the track don't overlook the importance of installing an upgraded radiator in your engine. A stock classic car radiator cannot handle the heat that comes along with impressive horsepower. This Firebird radiator is manufactured using durable aircraft-quality aluminum end tanks precision TIG-welded to an efficient brazed aluminum core. The inlet and outlets provide precise leak-free connections. Each Firebird radiator also includes a magnetic oil drain plug which effectively removes metal fragments circulating in the cooling system. As with all our products every classic car radiator includes the Mishimoto Lifetime Warranty ensuring superior product quality and craftsmanship.
All-aluminum construction provides increased heat and pressure tolerance better heat dissipation increased durability improved cooling efficiency and improved structural rigidity
3-row core
Billet aluminum fill neck
Drain Plug Thread Size: M12 - 1.5
Core Finish: Uncoated
Drain Plug Included: Yes
Overall Height: 30.2 IN
Core Height: 16.9 IN
Core Thickness: 2.5 IN
Core Material: Aluminum
Outlet Location: Bottom Right
Transmission Oil Cooler Included: Yes
Transmission Oil Cooler Fitting Type: N/A
Radiator Cap Included: Yes
Core Length: 22.8 IN
Core Row Quantity: 3
Inlet Diameter: 1.5 IN
Inlet Location: Top Left
Outlet Diameter: 1.75 IN
Fluid Capacity: 6.51 GA
Down Flow Or Cross Flow Type: Cross Flow
Overall Length: 19.3 IN
Overall Width: 5 IN
Install Difficulty: N/A
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: All-aluminum construction provides increased heat and pressure tolerance better heat dissipation increased durability improved cooling efficiency and improved structural rigidity
SellingPoint02: 3-row core
SellingPoint03: Billet aluminum fill neck
SellingPoint04: Increased coolant capacity directly results in better cooling efficiency and reduced engine temperatures
SellingPoint05: Brazed aluminum core
SellingPoint06: Features an internal transmission cooler to provide optimal fluid temperatures for automatic transmissions
SellingPoint07: Includes magnetic drain plug
SellingPoint08: Mishimoto Lifetime Warranty
SellingPoint09: N/A
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: 1967-1969 Pontiac Firebird 326ci (5.3L) V8 350ci (5.7L) V8 400ci (6.6L) V8
TechSpec Chassis Codes: N/A
TechSpec Core Height (in): 16.9
TechSpec Core Length (in): 22.8
TechSpec Core Thickness (in): 2.5
TechSpec DPI: 370
TechSpec Drain Plug Thread Size: 1/4-18 NPT
TechSpec Engine Codes: 326ci (5.3L) V8--350ci (5.7L) V8--400ci (6.6L) V8
TechSpec Fluid Capacity (gal): 6.51
TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty
TechSpec Inlet (in): 1.5
TechSpec Material: Aluminum
TechSpec Note: Transmission Cooler Thread Info:--On Radiator: Female 1/4-inch BSPP
TechSpec Outlet (in): 1.75
TechSpec Overall Height (in): 30.2
TechSpec Overall Length (in): 19.3
TechSpec Overall Width (in): 5
TechSpec Rows: 3
