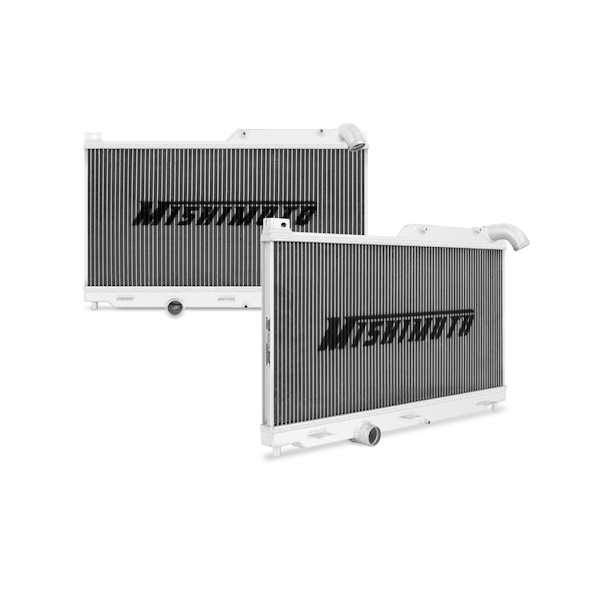

Performance Aluminum Radiator, fits Mazda RX-7 1993-1995 - Mishimoto - MMRAD-FD-93

The FD RX-7 is a unique sports car combining gorgeous body lines a well-balanced chassis and a high-revving rotary engine.Rotary engines are known to produce extreme temperatures under the hood necessitating a reliable and efficient cooling system.Mishimoto has developed an all-new aluminum radiator specifically engineered for the 1993in2002 Mazda RX-7.Mishimoto radiators are constructed from durable aircraft-quality aluminum and feature 100-percent brazed aluminum cores.This radiator features TIG-welded end tanks polished to a flawless finish producing a perfect blend of performance and style.The Mishimoto RX-7 radiator improves cooling efficiency and heat dissipation for the ultimate upgrade to extend the life of your 13B.This radiator exhibits factory fitment for an easy installation and includes the Mishimoto lifetime warranty.
100-percent all-aluminum construction
Increased core size for additional cooling capacity over OEM
TIG-welded for increased durability
Drain Plug Thread Size: M12 - 1.5
Core Finish: Uncoated
Drain Plug Included: Yes
Overall Height: 17.2 IN
Core Height: 12.3 IN
Core Thickness: 1.03 IN
Core Material: Aluminum
Outlet Location: Bottom Left
Transmission Oil Cooler Included: No
Transmission Oil Cooler Fitting Type: N/A
Radiator Cap Included: No
Core Length: 24.9 IN
Core Row Quantity: 1
Inlet Diameter: 1.5 IN
Inlet Location: Top Right
Outlet Diameter: 1.5 IN
Fluid Capacity: 2.6 GA
Down Flow Or Cross Flow Type: Down Flow
Overall Length: 25.5 IN
Overall Width: 5.12 IN
Install Difficulty: 3
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: 100-percent all-aluminum construction
SellingPoint02: Increased core size for additional cooling capacity over OEM
SellingPoint03: TIG-welded for increased durability
SellingPoint04: Retains OEM fitment
SellingPoint05: Brazed aluminum core
SellingPoint06: Polished aluminum end tanks
SellingPoint07: Lifetime Warranty
SellingPoint08: N/A
SellingPoint09: N/A
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: N/A
TechSpec Chassis Codes: FD3S
TechSpec Core Height (in): 12.3
TechSpec Core Length (in): 24.9
TechSpec Core Thickness (in): 1.03
TechSpec DPI: 1725
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec Engine Codes: 13B
TechSpec Fluid Capacity (gal): 2.6
TechSpec Includes: Mishimoto Radiator--Mishimoto Lifetime Warranty--Magnetic Drain Plug
TechSpec Inlet (in): 1.5
TechSpec Material: N/A
TechSpec Note: N/A
TechSpec Outlet (in): 1.5
TechSpec Overall Height (in): 17.2
TechSpec Overall Length (in): 25.5
TechSpec Overall Width (in): 5.12
TechSpec Rows: 1
