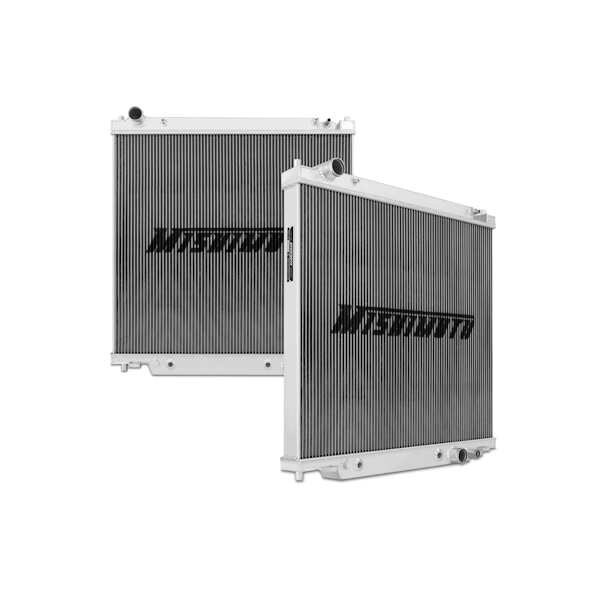

Performance Aluminum Radiator, fits Ford F-Series 5.4/6.8/7.3L 1999-2005 - Mishimoto - MMRAD-F2D-99

The 7.3 Powerstroke is well known for its reliability and longevity so why not pair an amazing engine with a radiator that can keep up! Mishimoto has released a performance aluminum radiator for the 1999-2003 Ford 7.3L Powerstroke. The Mishimoto Powerstroke aluminum radiator is an ideal upgrade for your work truck mud truck or modified pull truck. Whatever the use of your truck the Mishimoto radiator will keep your engine cool with its brazed aluminum core and TIG-welded end tanks for superior reliability and performance. The Mishimoto 7.3L radiator is precision-engineered for exact factory fitment; it bolts right up to the stock fan shroud allowing for easy installation. Have a gas-powered Super Duty or Excursion in your fleet? We've got you covered too as this radiator is a direct replacement for the 5.4L and 6.8L Triton models as well! Included with the Mishimoto Powerstroke aluminum radiator is our magnetic drain plug and signature Lifetime Warranty.
Full aluminum construction with durable TIG-welded end tanks
Features a two-row 2.2-in thick brazed aluminum core providing ideal fluid temperature regulation
Increased fluid capacity and superior heat dissipation
Drain Plug Thread Size: M12 - 1.5
Core Finish: Uncoated
Drain Plug Included: Yes
Overall Height: 30 IN
Core Height: 26.5 IN
Core Thickness: 2.2 IN
Core Material: Aluminum
Outlet Location: Bottom Right
Transmission Oil Cooler Included: No
Transmission Oil Cooler Fitting Type: N/A
Radiator Cap Included: No
Core Length: 29.4 IN
Core Row Quantity: 2
Inlet Diameter: 1.77 IN
Inlet Location: Top Left
Outlet Diameter: 1.77 IN
Fluid Capacity: 9.25 GA
Down Flow Or Cross Flow Type: Down Flow
Overall Length: 31.7 IN
Overall Width: 4.7 IN
Install Difficulty: 3
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct fit for 1999-2005 F-250 350 450 550 and Excursion with the 5.4L 6.8L and 7.3L
SellingPoint02: Full aluminum construction with durable TIG-welded end tanks
SellingPoint03: Features a two-row 2.2-in thick brazed aluminum core providing ideal fluid temperature regulation
SellingPoint04: Increased fluid capacity and superior heat dissipation
SellingPoint05: Perfect upgrade to the stock plastic end tank radiator
SellingPoint06: Ideal for trucks transporting heavy loads towing and/or driving in extreme environments
SellingPoint07: Included magnetic drain plug captures harmful metal debris to safeguard cooling system performance
SellingPoint08: Mishimoto Lifetime Warranty
SellingPoint09: N/A
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: 1999-2004 Ford F-250 w/ 5.4L/6.8L/7.3L--1999-2004 Ford F-350 w/ 5.4L/6.8L/7.3L--1999-2004 Ford F-450 w/ 6.8L/7.3L--1999-2003 Ford F-550 w/ 6.8L/7.3L--2000-2005 Ford Excursion w/ 5.4L/6.8L/7.3
TechSpec Chassis Codes: N/A
TechSpec Core Height (in): 29.84
TechSpec Core Length (in): 26.46
TechSpec Core Thickness (in): 2.2
TechSpec DPI: 2171
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec Engine Codes: N/A
TechSpec Fluid Capacity (gal): 9.25
TechSpec Includes: Mishimoto Radiator-- Magnetic Drain Plug--(4) Transmission Adapters--Mishimoto Lifetime Warranty
TechSpec Inlet (in): 1.77
TechSpec Material: Aluminum
TechSpec Note: The transmission cooler fittings are: 1/2”-20 SAE and 5/8”-18 SAE female flare fittings. This product comes with two adapters of each size to ensure fitment with your vehicle
TechSpec Outlet (in): 1.77
TechSpec Overall Height (in): 31.73
TechSpec Overall Length (in): 30.21
TechSpec Overall Width (in): 4.69
TechSpec Rows: 2
