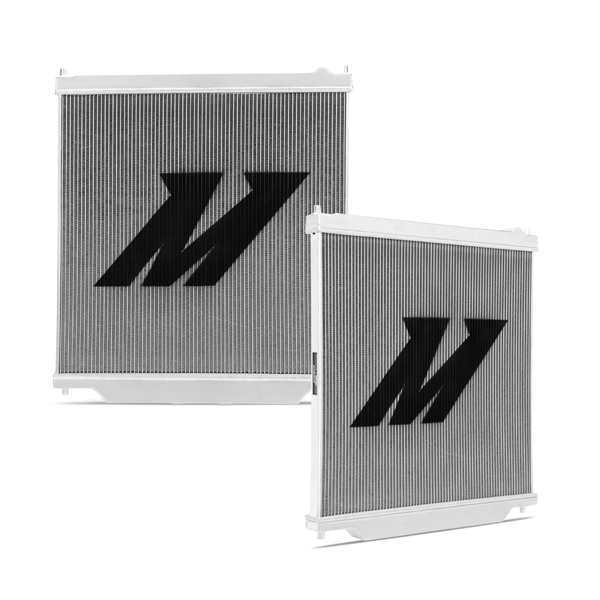

Performance Aluminum Radiator, fits Ford 6.0L Powerstroke 2003-2007 - Mishimoto - MMRAD-F2D-60

Mishimoto has released a direct-fit performance aluminum radiator for the 2003-2007 Ford 6.0L Powerstroke. The Mishimoto performance aluminum radiator for the Ford 6.0L is the ideal upgrade for the factory radiator. This radiator is designed and engineered to maximize cooling efficiency boost engine functions and protect your truck from overheating. Whether you use your truck for daily driving or as a powerhouse for hauling and towing you don't want to overlook the importance of installing an upgraded radiator for your high-performance diesel. The Mishimoto 6.0L Powerstroke Radiator features a lightweight two-row core made of 100-percent brazed aluminum and it features strong TIG-welded aluminum end tanks for superior durability and longevity. Every Mishimoto performance radiator is a direct factory fit making installation effortless with no cutting or modification required. As with all our products this radiator is protected by the Mishimoto Lifetime Warranty.
Full aluminum construction with durable TIG-welded end tanks
Two-row 1.88-in thick brazed aluminum core providing ideal fluid temperatures
Increased fluid capacity and superior heat dissipation
Drain Plug Thread Size: M12 - 1.5
Core Finish: Uncoated
Drain Plug Included: Yes
Overall Height: 34.7 IN
Core Height: 28.54 IN
Core Thickness: 1.88 IN
Core Material: Aluminum
Outlet Location: Bottom Right
Transmission Oil Cooler Included: No
Transmission Oil Cooler Fitting Type: N/A
Radiator Cap Included: No
Core Length: 29.06 IN
Core Row Quantity: 2
Inlet Diameter: 1.77 IN
Inlet Location: Top Left
Outlet Diameter: 1.97 IN
Fluid Capacity: 7.76 GA
Down Flow Or Cross Flow Type: Down Flow
Overall Length: 29.9 IN
Overall Width: 4.5 IN
Install Difficulty: 3
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct fit for 2003-2007 Ford trucks equipped with the 6.0L Powerstroke
SellingPoint02: Full aluminum construction with durable TIG-welded end tanks
SellingPoint03: Two-row 1.88-in thick brazed aluminum core providing ideal fluid temperatures
SellingPoint04: Increased fluid capacity and superior heat dissipation
SellingPoint05: Perfect upgrade to the factory plastic end tank radiator
SellingPoint06: Ideal for trucks transporting heavy loads towing and/or driving in extreme environments
SellingPoint07: Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
SellingPoint08: Mishimoto Lifetime Warranty
SellingPoint09: N/A
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: 2003-2007 Ford F-250 w/ 6.0L Powerstroke--2003-2007 Ford F-350 w/ 6.0L Powerstroke--2003-2007 Ford F-450 w/ 6.0L Powerstroke
TechSpec Chassis Codes: N/A
TechSpec Core Height (in): 28.54
TechSpec Core Length (in): 29.06
TechSpec Core Thickness (in): 1.88
TechSpec DPI: 2741
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec Engine Codes: N/A
TechSpec Fluid Capacity (gal): 7.76
TechSpec Includes: Mishimoto Radiator--Magnetic Drain Plug w/ Dowty Oil Seal--Mishimoto Lifetime Warranty
TechSpec Inlet (in): 1.77
TechSpec Material: Aluminum
TechSpec Note: N/A
TechSpec Outlet (in): 1.97
TechSpec Overall Height (in): 34.7
TechSpec Overall Length (in): 29.9
TechSpec Overall Width (in): 4.5
TechSpec Rows: 2
