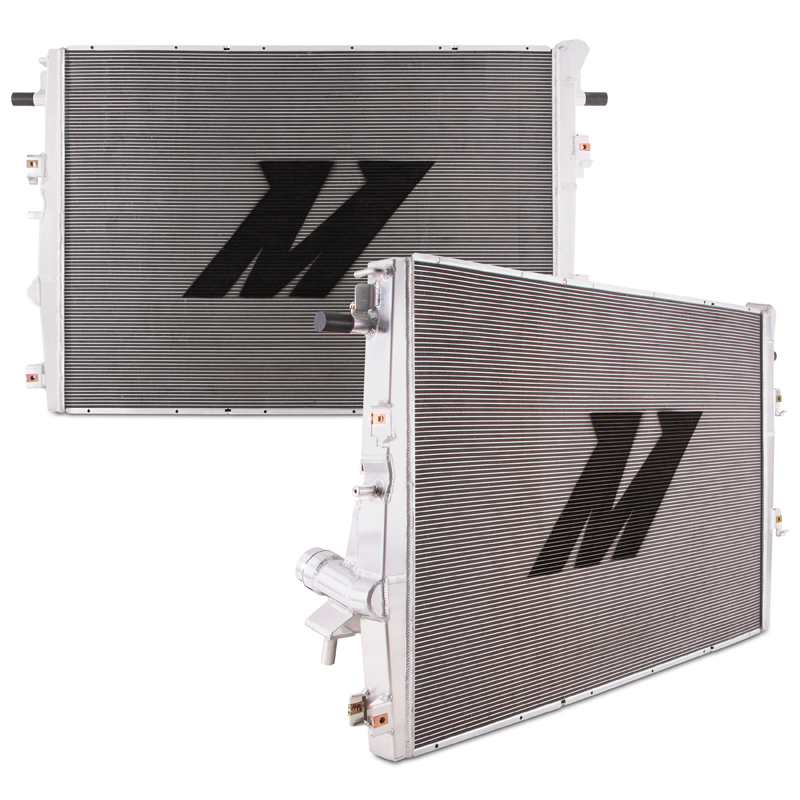

Performance Aluminum Radiator, Primary, fits Ford 6.7L Powerstroke 2017+ - Mishimoto - MMRAD-F2D-17

Mishimoto is excited to expand our line of Ford Powerstroke cooling products to the 2017+ 6.7L Powerstroke with our all-aluminum direct-fit radiator. We've taken our experience with previous generations of Powerstroke cooling products and combined it to create a larger stronger and more capable primary radiator for the 2017+ 6.7L Powerstroke. Extruded tubes with internal struts help distribute stress and provide greater strength and pressure tolerance. Our rubberized upper mounting peg design is carried over from our 6.4L and previous generation 6.7L Powerstroke radiators as well. These rubberized pegs help absorb frame flex and redirect it away from the radiator's core. Increased reliability wasn't our only goal for this 6.7L Powerstroke radiator however. The 14-percent increase in core volume 68-percent increase in surface area and 62-percent increase in coolant capacity add up to a radiator that's capable of cooling even the most demanding truck. Of course this 2017+ 6.7L Powerstroke primary radiator is backed by our Mishimoto Lifetime Warranty so you never have to worry about buying another radiator again.
Extruded tubes with internal struts for increased strength and pressure tolerance
Incorporates co-molded aluminum/rubber mounting pegs to reduce the truck's torque transfer to the radiator
37-percent increase in coolant capacity
Drain Plug Thread Size: M12 - 1.5
Core Finish: Uncoated
Drain Plug Included: Yes
Overall Height: 30 IN
Core Height: 27.75 IN
Core Thickness: 1.88 IN
Core Material: Aluminum
Outlet Location: Bottom Right
Transmission Oil Cooler Included: No
Transmission Oil Cooler Fitting Type: N/A
Radiator Cap Included: No
Core Length: 38.38 IN
Core Row Quantity: 2
Inlet Diameter: 0 IN
Inlet Location: Top Left
Outlet Diameter: 0 IN
Fluid Capacity: 9.5 GA
Down Flow Or Cross Flow Type: Cross Flow
Overall Length: 48 IN
Overall Width: 7.75 IN
Install Difficulty: 3
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct fit for the 2017+ Ford 6.7L Powerstroke
SellingPoint02: Extruded tubes with internal struts for increased strength and pressure tolerance
SellingPoint03: Incorporates co-molded aluminum/rubber mounting pegs to reduce the truck’s torque transfer to the radiator
SellingPoint04: 37-percent increase in coolant capacity
SellingPoint05: 20-percent increase in fin surface area
SellingPoint06: 10-percent increase in core volume over stock radiator
SellingPoint07: CNC-machined quick-disconnect inlet and outlet for perfect fitment and function
SellingPoint08: Mishimoto Lifetime Warranty
SellingPoint09: N/A
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: 2017+ Ford Super Duty w/ 6.7L Powerstroke
TechSpec Chassis Codes: N/A
TechSpec Core Height (in): 27.75
TechSpec Core Length (in): 38.38
TechSpec Core Thickness (in): 1.88
TechSpec DPI: N/A
TechSpec Drain Plug Thread Size: N/A
TechSpec Engine Codes: N/A
TechSpec Fluid Capacity (gal): 9.5
TechSpec Includes: Mishimoto Radiator-- Mishimoto Magnetic Drain Plug--Mounting Hardware--Mishimoto Lifetime Warranty
TechSpec Inlet (in): N/A
TechSpec Material: Aluminum
TechSpec Note: N/A
TechSpec Outlet (in): N/A
TechSpec Overall Height (in): 30
TechSpec Overall Length (in): 48
TechSpec Overall Width (in): 7.75
TechSpec Rows: 2
