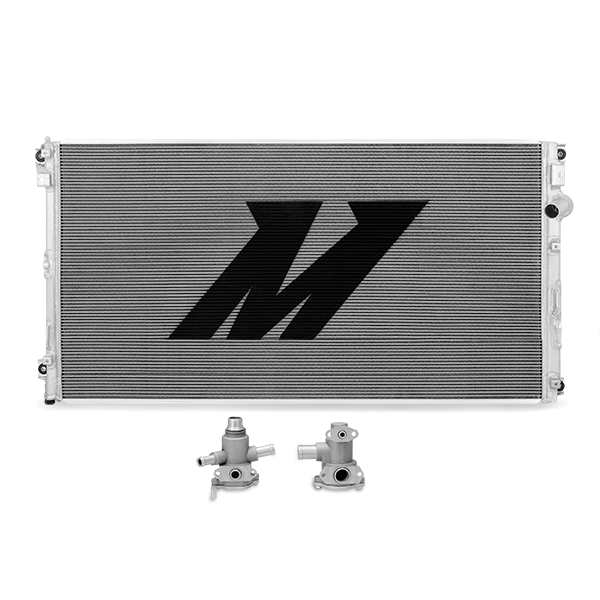

Performance Aluminum Secondary Radiator, fits Ford 6.7L Powerstroke 2011-2016 - Mishimoto - MMRAD-F2D-11S

Upgrade your truck with the Mishimoto 6.7 Powerstroke Aluminum Secondary Radiator to keep your truck on the road and running cool. The 6.7L Powerstroke has two separate cooling systems with this radiator cooling the secondary system which maintains ideal temperatures for the transmission cooler EGR cooler fuel cooler and most importantly the liquid-to-air charge air cooler. This 6.7 Powerstroke Secondary Radiator is constructed from high-quality aircraft-grade aluminum with a 100-percent brazed aluminum core 19-percent thicker than factory. During testing we saw at coolant temperature reduction of at least 7 F and a 7 reduction in charge air temperatures. Our 6.7 Powerstroke aluminum secondary radiator features strong TIG-welded aluminum end tanks for superior durability and longevity that will keep your 6.7 Powerstroke on the road and out of the shop. The Mishimoto Ford 6.7 Powerstroke aluminum radiator retains factory fitment fitting both the factory and Mishimoto Aluminum Radiators for an easy installation process. As with all our Powerstroke performance parts this aluminum radiator is protected by the Mishimoto Lifetime Warranty.
Reduces coolant temperatures by up to 7F
Reduces charge air cooler temperatures by up to 6F
Reduces transmission fuel and EGR temperatures
Drain Plug Thread Size: M12 - 1.5
Core Finish: Uncoated
Drain Plug Included: Yes
Overall Height: 22 IN
Core Height: 21 IN
Core Thickness: 1.96 IN
Core Material: Aluminum
Outlet Location: Left
Transmission Oil Cooler Included: No
Transmission Oil Cooler Fitting Type: N/A
Radiator Cap Included: No
Core Length: 39.4 IN
Core Row Quantity: 2
Inlet Diameter: 0 IN
Inlet Location: Right
Outlet Diameter: 0 IN
Fluid Capacity: 0 GA
Down Flow Or Cross Flow Type: Cross Flow
Overall Length: 48 IN
Overall Width: 0 IN
Install Difficulty: 4
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct fit for the 2011-2016 6.7L Powerstroke
SellingPoint02: Reduces coolant temperatures by up to 7F
SellingPoint03: Reduces charge air cooler temperatures by up to 6F
SellingPoint04: Reduces transmission fuel and EGR temperatures
SellingPoint05: Removable thermostat housings
SellingPoint06: 27-percent increase in fin area
SellingPoint07: 19-percent thicker core than factory
SellingPoint08: 16-percent increase in cooling tube surface area
SellingPoint09: 100-percent brazed aluminum core
SellingPoint10: TIG-welded to perfection
SellingPoint11: Fits with factory and Mishimoto Primary radiators
SellingPoint12: Included magnetic drain plug captures harmful metal debris to safeguard cooling system performance
SellingPoint13: Mishimoto Lifetime Warranty
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: 2011-2016 Ford F-250 w/ 6.7L Powerstroke--2011-2016 Ford F-350 w/ 6.7L Powerstroke--2011-2016 Ford F-450 w/ 6.7L Powerstroke--2011-2016 Ford F-550 w/ 6.7L Powerstroke
TechSpec Chassis Codes: N/A
TechSpec Core Height (in): 21
TechSpec Core Length (in): 39.4
TechSpec Core Thickness (in): 1.96
TechSpec DPI: 13339
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec Engine Codes: N/A
TechSpec Fluid Capacity (gal): N/A
TechSpec Includes: Mishimoto Radiator--(2) Cast Thermostat Housings-- Magnetic Drain Plug w/ Dowty Oil Seal--(4) Rubber Bushings and Metal Collars--(3) Hardware Packs--Mishimoto Lifetime Warranty
TechSpec Inlet (in): N/A
TechSpec Material: Aluminum
TechSpec Note: N/A
TechSpec Outlet (in): N/A
TechSpec Overall Height (in): 22
TechSpec Overall Length (in): 48
TechSpec Overall Width (in): N/A
TechSpec Rows: 2
