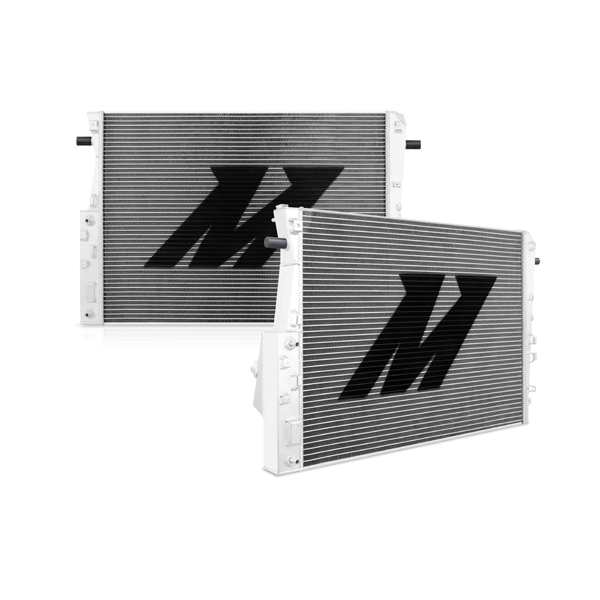

Performance Aluminum Radiator, fits Ford 6.4L Powerstroke 2008-2010 - Mishimoto - MMRAD-F2D-08V2

The 2008-2010 6.4L Ford Powerstroke is plagued with radiator and cooling issues with no effective solution available-until now. Upgrade your truck with the Mishimoto 6.4L Powerstroke aluminum radiator to put an end to puddles of coolant under your truck. Mishimoto radiators are constructed from high-quality aircraft-grade aluminum with a 100-percent brazed aluminum core. Our 6.4L radiator features strong TIG-welded aluminum end tanks for superior durability and longevity that will keep your Powerstroke on the road and out of the shop. The Mishimoto performance radiator retains factory fitment for an easy installation process and includes a magnetic drain plug to catch any debris in your cooling system. As with all our products this radiator is protected by the Mishimoto Lifetime Warranty.
Enhanced second generation product design
Dual-molded aluminum/rubber mounting pegs to reduce torque transfer to the radiator
Internally strutted tubes for increased strength against high pressure and temperature
Drain Plug Thread Size: M12 - 1.5
Core Finish: Uncoated
Drain Plug Included: Yes
Overall Height: 28.7 IN
Core Height: 37.01 IN
Core Thickness: 2.76 IN
Core Material: Aluminum
Outlet Location: Bottom Right
Transmission Oil Cooler Included: No
Transmission Oil Cooler Fitting Type: N/A
Radiator Cap Included: No
Core Length: 27.48 IN
Core Row Quantity: 2
Inlet Diameter: 0 IN
Inlet Location: Top Left
Outlet Diameter: 0 IN
Fluid Capacity: 8.36 GA
Down Flow Or Cross Flow Type: Cross Flow
Overall Length: 45.7 IN
Overall Width: 8.9 IN
Install Difficulty: 3
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Enhanced second generation product design
SellingPoint02: Direct fit for the 2008-2010 Ford 6.4L Powerstroke
SellingPoint03: Dual-molded aluminum/rubber mounting pegs to reduce torque transfer to the radiator
SellingPoint04: Internally strutted tubes for increased strength against high pressure and temperature
SellingPoint05: Strengthened top and bottom core support plates prevent core torquing and bending
SellingPoint06: Inlet and outlet have CNC-machined OEM-style quick-disconnects
SellingPoint07: 100-percent brazed aluminum core
SellingPoint08: TIG-welded to perfection
SellingPoint09: Includes magnetic drain plug
SellingPoint10: US Patent Numbers D717 702 ZL 201430130878.8
SellingPoint11: Mishimoto Lifetime Warranty
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: 2008-2010 Ford F-250 w/ 6.4L Powerstroke--2008-2010 Ford F-350 w/ 6.4L Powerstroke--2008-2010 Ford F-450 w/ 6.4L Powerstroke--2008-2010 Ford F-550 w/ 6.4L Powerstroke
TechSpec Chassis Codes: N/A
TechSpec Core Height (in): 37.01
TechSpec Core Length (in): 27.48
TechSpec Core Thickness (in): 2.76
TechSpec DPI: 13022
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec Engine Codes: N/A
TechSpec Fluid Capacity (gal): 8.36
TechSpec Includes: Mishimoto Radiator--Magnetic Drain Plug w/ Dowty Oil Seal--(2) Rubber Mounting Pegs--(8) M6 x 1.0 x 14mm Bolts--Mishimoto Lifetime Warranty
TechSpec Inlet (in): N/A
TechSpec Material: Aluminum
TechSpec Note: N/A
TechSpec Outlet (in): N/A
TechSpec Overall Height (in): 28.7
TechSpec Overall Length (in): 45.7
TechSpec Overall Width (in): 8.9
TechSpec Rows: 2
