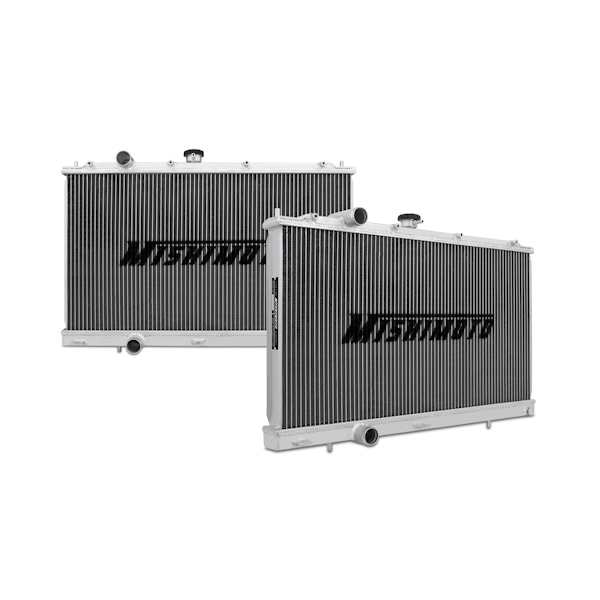

Performance Aluminum Radiator, fits Mitsubishi Lancer Evolution 4/5/6 1996-2001 - Mishimoto - MMRAD-EVO-456

Having a turbo set up in your vehicle produces a great amount of heat.By replacing your current stock Evolution radiator with a top of the line Mishimoto performance radiator you will undoubtedly notice a cooler more efficient running engine.All Mishimoto Evolution performance aluminum radiators are designed and engineered to maximize cooling efficiency boost engine functions and most importantly protect your car from the overheating.With its lightweight dual core 100-percent brazed aluminum and polished tank ends installation is effortless with a direct OEM fit no cutting or modification is required.
Robotic TIG-welding
Brushed aluminum finish
Includes magnetic drain plug with dowty seal
Drain Plug Thread Size: M12 - 1.5
Core Finish: Uncoated
Drain Plug Included: Yes
Overall Height: 28.1 IN
Core Height: 27.24 IN
Core Thickness: 2.05 IN
Core Material: Aluminum
Outlet Location: Bottom Left
Transmission Oil Cooler Included: No
Transmission Oil Cooler Fitting Type: N/A
Radiator Cap Included: Yes
Core Length: 14.8 IN
Core Row Quantity: 2
Inlet Diameter: 1.4 IN
Inlet Location: Top Left
Outlet Diameter: 1.4 IN
Fluid Capacity: 1.79 GA
Down Flow Or Cross Flow Type: Down Flow
Overall Length: 19.3 IN
Overall Width: 2.55 IN
Install Difficulty: 3
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Robotic TIG-welding
SellingPoint02: Brushed aluminum finish
SellingPoint03: Includes magnetic drain plug with dowty seal
SellingPoint04: Direct fit for the 1996-2000 Mitsubishi Lancer Evolution
SellingPoint05: Includes 1.3 bar high-pressure radiator cap
SellingPoint06: Includes 1/8-in NPT port for use with additional temperature sensors
SellingPoint07: Lifetime Warranty
SellingPoint08: N/A
SellingPoint09: N/A
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: N/A
TechSpec Chassis Codes: CN9A (4) CP9A (5/6)
TechSpec Core Height (in): 27.24
TechSpec Core Length (in): 14.8
TechSpec Core Thickness (in): 2.05
TechSpec DPI: N/A
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec Engine Codes: 4G63T
TechSpec Fluid Capacity (gal): 1.79
TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty
TechSpec Inlet (in): 1.4
TechSpec Material: N/A
TechSpec Note: This item is for Manual Transmission vehicles. For automatic applications please purchase optional Mishimoto Universal Transmission Cooler Kit.
TechSpec Outlet (in): 1.4
TechSpec Overall Height (in): 28.1
TechSpec Overall Length (in): 19.3
TechSpec Overall Width (in): 2.55
TechSpec Rows: 2
