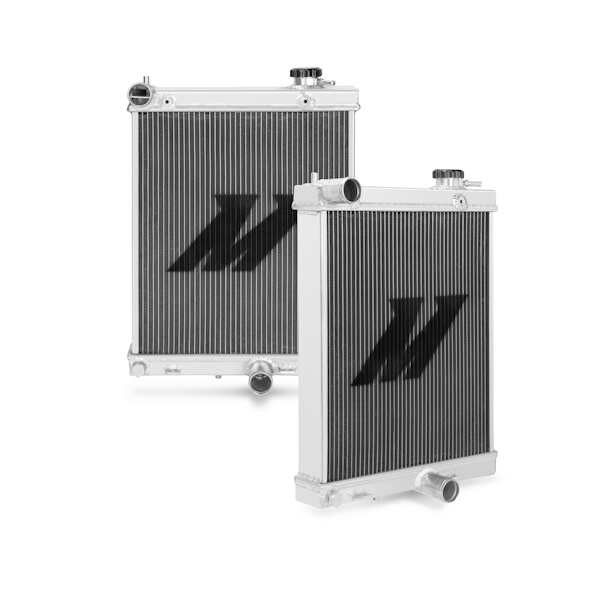

Performance Aluminum Radiator, Half-Size, fits Mitsubishi Lancer Evo 2001-2007 - Mishimoto - MMRAD-EVO-01H

Freeing up engine bay space for a front-facing or large turbocharger can be a challenge in the Mitsubishi Lancer Evolution. Keep your high-horsepower Evo cool with the Mishimoto Lancer Evolution 7/8/9 Half-Size Performance Aluminum Radiator. This radiator features full-aluminum construction with precision TIG-welded end tanks for superior heat dissipation and durability. The large 2.05-inch thick brazed aluminum core provides clearance for upgraded turbocharger setups while maintaining optimal coolant temperatures for runs at the drag strip or through the autocross course. This radiator features a unique internal baffle that provides superior fluid dispersion resulting in lower coolant temperatures. Included with this radiator is a Mishimoto Magnetic Oil Drain Plug M12 x 1.5 with high-quality dowty seal for removal of any metal fragments in your cooling system. The radiator also includes a Mishimoto 1.3 Bar High-Pressure Radiator Cap that effectively raises the boiling point of coolant to create a safer and more efficient system. The Mishimoto Lancer Evolution Half-Size Performance Aluminum Radiator works perfectly with factory coolant hoses or a Mishimoto silicone Radiator Hose Kit and includes an upper radiator stay making this a hassle-free bolt-on installation. Installing a capable fan solution is easy with the Mishimoto radiator thanks to the incorporated stock shroud-mounting points. Optionally a slim fan can be installed for improved clearance. This radiator includes the Mishimoto Lifetime Warranty ensuring superior product quality and craftsmanship.
Half-size design provides clearance for large twin-scroll and forward-facing turbocharger setups
All-aluminum construction with TIG-welded end tanks
2.05-in thick brazed aluminum core provides optimal cooling and superior durability
Drain Plug Thread Size: M12 - 1.5
Core Finish: Uncoated
Drain Plug Included: Yes
Overall Height: 19.4 IN
Core Height: 15 IN
Core Thickness: 2.05 IN
Core Material: Aluminum
Outlet Location: Bottom Center
Transmission Oil Cooler Included: No
Transmission Oil Cooler Fitting Type: N/A
Radiator Cap Included: Yes
Core Length: 13.38 IN
Core Row Quantity: 3
Inlet Diameter: 1.38 IN
Inlet Location: Top Left
Outlet Diameter: 1.38 IN
Fluid Capacity: 1.79 GA
Down Flow Or Cross Flow Type: Down Flow
Overall Length: 14 IN
Overall Width: 4.4 IN
Install Difficulty: 3
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct fit for the 2001-2007 Mitsubishi Lancer Evolution
SellingPoint02: Half-size design provides clearance for large twin-scroll and forward-facing turbocharger setups
SellingPoint03: All-aluminum construction with TIG-welded end tanks
SellingPoint04: 2.05-in thick brazed aluminum core provides optimal cooling and superior durability
SellingPoint05: Internal baffle provides exceptional fluid dispersion throughout the core and optimal cooling efficiency
SellingPoint06: Applicable for use with stock or Mishimoto silicone radiator hoses
SellingPoint07: Includes mounting points for stock fan shroud
SellingPoint08: Includes magnetic drain plug with dowty seal 1.3 bar high-pressure radiator cap and upper radiator aluminum stay
SellingPoint09: Mishimoto Lifetime Warranty
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: N/A
TechSpec Chassis Codes: CT9-A
TechSpec Core Height (in): 15
TechSpec Core Length (in): 13.38
TechSpec Core Thickness (in): 2.05
TechSpec DPI: N/A
TechSpec Drain Plug Thread Size: M12
TechSpec Engine Codes: 4G63
TechSpec Fluid Capacity (gal): 1.79
TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Upper Radiator Aluminum Stay--Mishimoto Lifetime Warranty
TechSpec Inlet (in): 1.38
TechSpec Material: N/A
TechSpec Note: N/A
TechSpec Outlet (in): 1.38
TechSpec Overall Height (in): 19.4
TechSpec Overall Length (in): 14
TechSpec Overall Width (in): 4.4
TechSpec Rows: 3
