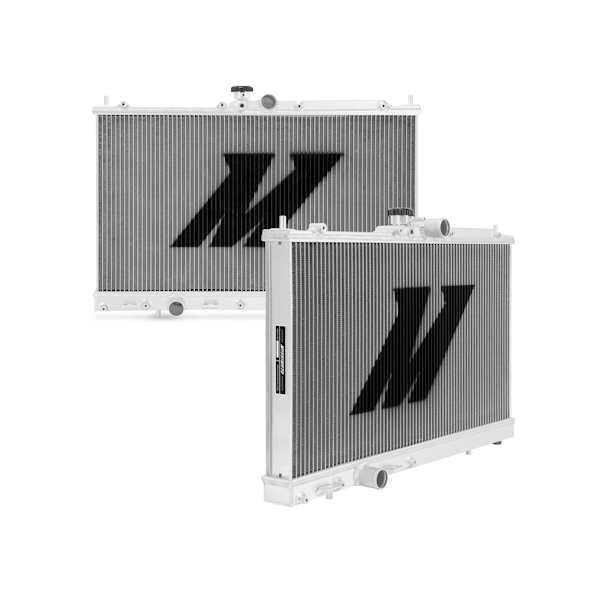

Performance Aluminum Radiator, fits Mitsubishi Lancer Evolution 7/8/9 2001-2007 - Mishimoto - MMRAD-EVO-01

Having trouble keeping coolant temperatures under control in your stock or modified Evo? Whether you are making passes at the strip or boosting up the local hill climb course retaining optimal coolant temperatures is key to preserving the life of your engine. The Mishimoto Lancer Evolution Performance Aluminum Radiator is an ideal upgrade for the stock radiator with plastic end tanks. The Mishimoto radiator features full aluminum construction which provides increased heat and pressure tolerance improved heat dissipation increased durability and improved cooling efficiency. Mishimoto radiators are constructed using a 100-percent brazed aluminum core with robust TIG-welded end tanks which result in maximum reliability superior structural rigidity and consistent performance in even the most demanding environments. This radiator is engineered to retain OEM fitment for the Mitsubishi Evolution 7 8 and 9 for hassle-free bolt-in fitment. With a core thickness of nearly 2 inches this radiator dwarfs the factory heat exchanger and is perfect for use with vehicles utilizing upgraded turbochargers or for stock vehicles in need of a reliable replacement. This performance radiator includes a high-pressure 1.3 bar radiator cap which effectively raises the boiling point of coolant to create a safer and more efficient system. This radiator also includes a magnetic drain plug with dowty seal which removes circulating metal fragments from the cooling system providing further engine protection. As with all our products this radiator includes the Mishimoto Lifetime Warranty ensuring superior product quality and craftsmanship.
Full-aluminum construction provides increased heat and pressure tolerance improved heat dissipation increased durability and improved cooling efficiency
Manufactured with robust TIG-welded end tanks for improved structural rigidity
Constructed with a 100-percent brazed aluminum core for maximum reliability
Drain Plug Thread Size: M12 - 1.5
Core Finish: Uncoated
Drain Plug Included: Yes
Overall Height: 28.2 IN
Core Height: 27.08 IN
Core Thickness: 1.97 IN
Core Material: Aluminum
Outlet Location: Bottom Left
Transmission Oil Cooler Included: No
Transmission Oil Cooler Fitting Type: N/A
Radiator Cap Included: Yes
Core Length: 14.76 IN
Core Row Quantity: 2
Inlet Diameter: 1.4 IN
Inlet Location: Top Center
Outlet Diameter: 1.4 IN
Fluid Capacity: 1.79 GA
Down Flow Or Cross Flow Type: Down Flow
Overall Length: 19.5 IN
Overall Width: 2.47 IN
Install Difficulty: 3
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Full-aluminum construction provides increased heat and pressure tolerance improved heat dissipation increased durability and improved cooling efficiency
SellingPoint02: Manufactured with robust TIG-welded end tanks for improved structural rigidity
SellingPoint03: Constructed with a 100-percent brazed aluminum core for maximum reliability
SellingPoint04: Substantial core thickness provides increased coolant capacity which directly results in improved cooling efficiency and engine temperature reduction
SellingPoint05: Engineered to original equipment specifications for the 2001-2007 Mitsubishi Lancer Evolution 7/8/9
SellingPoint06: Mishimoto Lifetime Warranty ensures product quality and craftsmanship
SellingPoint07: N/A
SellingPoint08: N/A
SellingPoint09: N/A
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: N/A
TechSpec Chassis Codes: CT9A
TechSpec Core Height (in): 27.08
TechSpec Core Length (in): 14.76
TechSpec Core Thickness (in): 1.97
TechSpec DPI: 2448
TechSpec Drain Plug Thread Size: N/A
TechSpec Engine Codes: 4G63T
TechSpec Fluid Capacity (gal): 1.79
TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--1/8-inch NPT Plug--Mishimoto Lifetime Warranty
TechSpec Inlet (in): 1.4
TechSpec Material: N/A
TechSpec Note: This item is for Manual Transmission vehicles. For automatic applications please purchase optional Mishimoto Universal Transmission Cooler Kit.
TechSpec Outlet (in): 1.4
TechSpec Overall Height (in): 28.2
TechSpec Overall Length (in): 19.5
TechSpec Overall Width (in): 2.47
TechSpec Rows: 2
