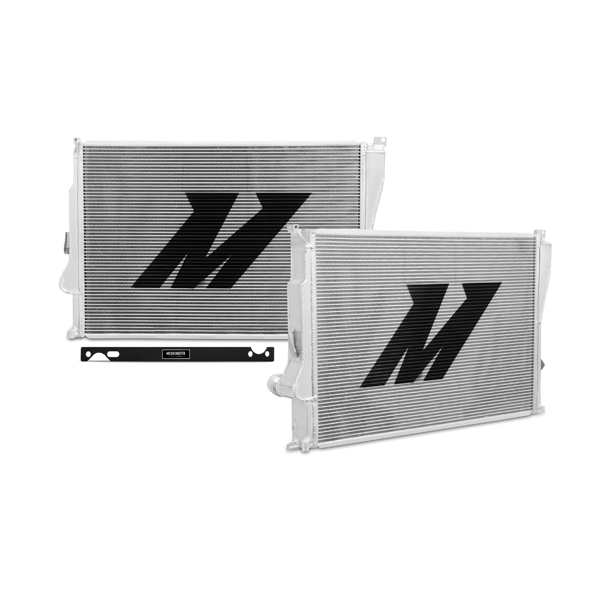

Performance Aluminum Radiator, fits BMW E46 M3 2001-2006 - Mishimoto - MMRAD-E46-01

The S54 is an incredible feat of engineering. Smooth power delivery individual throttle bodies and an 8 000 rpm redline makes for an unforgettable driving experience. As with any BMW maintenance is key to extending the life of your vehicle and ensuring that you're getting a driving experience rivaled by very few other vehicles on the road. As many of these vehicles see frequent track time the team at Mishimoto felt a need to develop a performance aluminum radiator that would not only provide improved durability but also deliver the efficiency needed for track driving. Our team of engineers developed an extremely dense core that provides a greater number of coolant tubes and a very dense fin composition. This allows for more heat transfer contact points which results in greater heat exchange and improved efficiency. Additionally this dense core provides a 32-percent increase in coolant surface area a 15-percent increase in air surface area and a 25-percent increase in coolant capacity. All of these factors will contribute to lower temperatures and greater heat rejection ideal for those in warm climates and track use. This radiator is designed as a complete bolt-in fit requiring no modification for fitment with the stock fan and shrouding. Our end tanks are constructed from high quality aluminum TIG-welded to a 100-percent brazed aluminum core. Not only does this aid in heat transfer but it provides the reliability needed for years of service. This radiator is also applicable with most aftermarket supercharger kits providing the cooling power needed for power levels above stock. As with all our products the Mishimoto E46 M3 Performance Aluminum Radiator includes the Mishimoto Lifetime Warranty ensuring superior product quality and craftsmanship.
Fully brazed aluminum core with TIG-welded end tanks
Fits perfectly with stock clutch fan or Mishimoto electric fan shroud
Precision designed
Drain Plug Thread Size: M12 - 1.5
Core Finish: Uncoated
Drain Plug Included: Yes
Overall Height: 27.4 IN
Core Height: 16.14 IN
Core Thickness: 1.9 IN
Core Material: Aluminum
Outlet Location: Bottom Right
Transmission Oil Cooler Included: No
Transmission Oil Cooler Fitting Type: N/A
Radiator Cap Included: No
Core Length: 22.83 IN
Core Row Quantity: 2
Inlet Diameter: 0 IN
Inlet Location: Top Left
Outlet Diameter: 0 IN
Fluid Capacity: 2.51 GA
Down Flow Or Cross Flow Type: Cross Flow
Overall Length: 17 IN
Overall Width: 4.4 IN
Install Difficulty: 3
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct fit for the 2001-2006 BMW E46 M3
SellingPoint02: Fully brazed aluminum core with TIG-welded end tanks
SellingPoint03: Fits perfectly with stock clutch fan or Mishimoto electric fan shroud
SellingPoint04: Precision designed
SellingPoint05: CNC-machined quick-disconnect fittings mate perfectly with stock hoses
SellingPoint06: Track-tested design
SellingPoint07: 32-percent increase in coolant surface area
SellingPoint08: 15-percent increase in air surface area
SellingPoint09: 25-percent increase in coolant capacity
SellingPoint10: Works with most aftermarket supercharger kits
SellingPoint11: Includes fan tool for clutch fan removal
SellingPoint12: 1/8-in NPT port for easy installation of sensors
SellingPoint13: Mishimoto Lifetime Warranty
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: 2001-2006 BMW E46 M3
TechSpec Chassis Codes: E46
TechSpec Core Height (in): 16.14
TechSpec Core Length (in): 22.83
TechSpec Core Thickness (in): 1.9
TechSpec DPI: N/A
TechSpec Drain Plug Thread Size: N/A
TechSpec Engine Codes: S54
TechSpec Fluid Capacity (gal): 2.51
TechSpec Includes: Mishimoto Radiator--Fan Tool-- Black 1/8-inch NPT Plug--(5) M6 x 1.0 x 16mm Flange Hex Bolts--Mishimoto Lifetime Warranty
TechSpec Inlet (in): N/A
TechSpec Material: N/A
TechSpec Note: N/A
TechSpec Outlet (in): N/A
TechSpec Overall Height (in): 27.4
TechSpec Overall Length (in): 17
TechSpec Overall Width (in): 4.4
TechSpec Rows: 2
