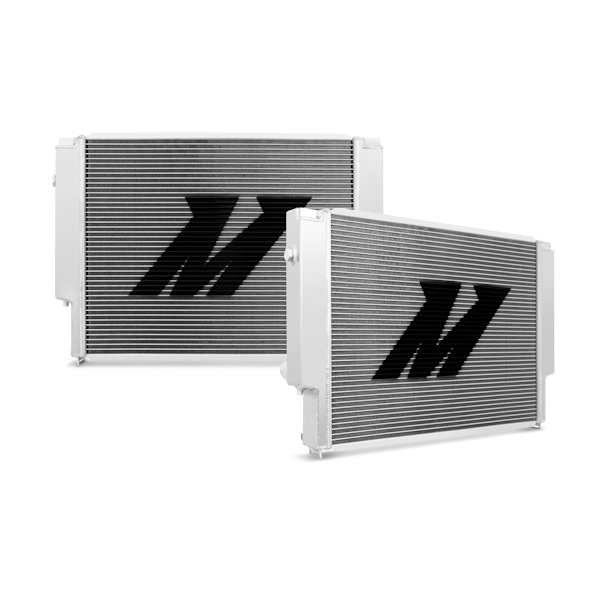

X-Line Performance Aluminum Radiator, fits BMW E30/E36 1988-1999 - Mishimoto - MMRAD-E36-92X

An ideal upgrade for the brittle stock radiator the Mishimoto E30/E36 X-Line Performance Aluminum Radiator provides your vehicle with enhanced reliability and improved cooling efficiency. BMWs are known to have frequent cooling-related failures due to the use of numerous plastic components throughout the system. A simple coolant leak can result in overheating accelerated engine wear or head gasket failure. Whether you have a daily-driven E36 M3 or an M20 spinning a large turbocharger this radiator provides ideal temperatures on and off the track. Most people overlook the importance of installing an upgraded radiator in their vehicle. This X-Line Performance Aluminum Radiator reduces coolant temperature by 30 degrees Fahrenheit (16.62 degrees Celsius) and is 20-percent more efficient than the stock radiator. Along with providing an increased coolant capacity of 91-percent this radiator improves heat dissipation which is beneficial for both stock and modified applications.
20-percent more efficient than stock radiator
Reduces coolant temperatures by 30 F (16.6 C)
91-percent increase in coolant capacity
Drain Plug Thread Size: M12 - 1.5
Core Finish: Uncoated
Drain Plug Included: Yes
Overall Height: 18.7 IN
Core Height: 17.24 IN
Core Thickness: 2.25 IN
Core Material: Aluminum
Outlet Location: Bottom Right
Transmission Oil Cooler Included: No
Transmission Oil Cooler Fitting Type: N/A
Radiator Cap Included: No
Core Length: 21.77 IN
Core Row Quantity: 3
Inlet Diameter: 1.57 IN
Inlet Location: Top Left
Outlet Diameter: 1.57 IN
Fluid Capacity: 5.22 GA
Down Flow Or Cross Flow Type: Cross Flow
Overall Length: 26.8 IN
Overall Width: 4.1 IN
Install Difficulty: 3
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct fit for the BMW E30/E36
SellingPoint02: 20-percent more efficient than stock radiator
SellingPoint03: Reduces coolant temperatures by 30 F (16.6 C)
SellingPoint04: 91-percent increase in coolant capacity
SellingPoint05: 73-percent increase in core thickness
SellingPoint06: 100-percent brazed aluminum core
SellingPoint07: TIG-welded to perfection
SellingPoint08: Includes a Mishimoto magnetic oil drain plug with high-quality dowty seal
SellingPoint09: Mishimoto Lifetime Warranty
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: 1988-1991 BMW 325I--1992-1995 BMW 325I/IC/IS--1995-1999 BMW M3--1996-1998 BMW 328I/IC/IS--1998-1999 BMW 323IC/IS
TechSpec Chassis Codes: E30--E36
TechSpec Core Height (in): 17.24
TechSpec Core Length (in): 21.77
TechSpec Core Thickness (in): 2.25
TechSpec DPI: N/A
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec Engine Codes: S52--M52--M50TU--M20B25--S50
TechSpec Fluid Capacity (gal): 5.22
TechSpec Includes: Mishimoto Radiator--Magnetic Drain Plug w/ Dowty Oil Seal-- M14 Sensor Bung w/ Dowty Oil Seal--(2) M6 x 1.0 x 16mm Flange Hex Bolts--Mishimoto Lifetime Warranty
TechSpec Inlet (in): 1.57
TechSpec Material: Aluminum
TechSpec Note: This item is for Manual Transmission and Automatic Transmission vehicles. It features threaded rivet provisions for the automatic transmission cooler.--------Stock E30 fan shroud does not fit with this product.--------This product will require conversion brackets for mounting Euro oil cooler
TechSpec Outlet (in): 1.57
TechSpec Overall Height (in): 18.7
TechSpec Overall Length (in): 26.8
TechSpec Overall Width (in): 4.1
TechSpec Rows: 3
