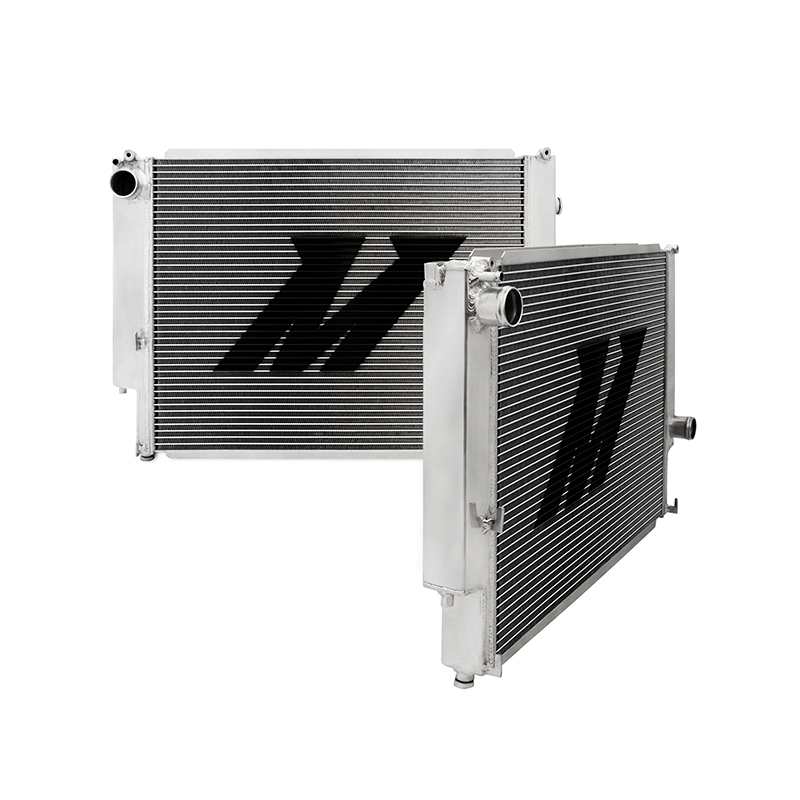

Performance Aluminum Radiator, fits BMW E30/E36 1988-1999 - Mishimoto - MMRAD-E36-92

An ideal upgrade for the brittle stock BMW radiator the Mishimoto E30/E36 Performance Aluminum Radiator provides your vehicle with enhanced reliability and improved cooling efficiency. BMWs are known to have frequent cooling-related failures due to the use of numerous plastic components throughout the system. A simple coolant leak can result in overheating accelerated engine wear or head gasket failure. Whether you have a daily-driven E36 M3 or an M20 spinning a large turbocharger this E30 and E36 radiator provides ideal temperatures on and off the track. Most people overlook the importance of installing an upgraded radiator in their vehicle. Along with providing increased coolant capacity this BMW radiator improves heat dissipation which is beneficial for both stock and modified applications.----The Mishimoto E30/E36 Performance Aluminum Radiator is manufactured using durable aircraft-quality aluminum end tanks precision TIG-welded to an efficient brazed aluminum core. The inlet and outlets provide precise leak-free connections and all factory overflow and temperature sensor ports are present on the Mishimoto E30 and E36 radiator for use with stock sensors and hoses. This BMW radiator also includes a M12 x 1.5 Magnetic Oil Drain Plug with Dowty seal which effectively removes metal fragments circulating in the cooling system. The Mishimoto BMW Performance Aluminum Radiator incorporates mounting points for the factory external automatic transmission cooler and it is a direct bolt-on fit for all 6-cylinder E30/E36 models from 1988 to 1991. As with all our BMW parts this aluminum BMW radiator includes the Mishimoto Lifetime Warranty ensuring superior product quality and craftsmanship.
Full aluminum construction with durable TIG-welded end tanks
Two-row 1.57-in thick brazed aluminum core providing ideal fluid temperatures on the street or track
Functions with stock mechanical fan and stock shrouding
Drain Plug Thread Size: M12 - 1.5
Core Finish: Uncoated
Drain Plug Included: Yes
Overall Height: 18.3 IN
Core Height: 17.13 IN
Core Thickness: 1.57 IN
Core Material: Aluminum
Outlet Location: Bottom Right
Transmission Oil Cooler Included: No
Transmission Oil Cooler Fitting Type: N/A
Radiator Cap Included: No
Core Length: 21.46 IN
Core Row Quantity: 2
Inlet Diameter: 1.5 IN
Inlet Location: Top Left
Outlet Diameter: 1.57 IN
Fluid Capacity: 3.13 GA
Down Flow Or Cross Flow Type: Cross Flow
Overall Length: 26.3 IN
Overall Width: 2.07 IN
Install Difficulty: 3
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct fit for the 1988-1999 BMW E30/E36 W/ 6 Cylinder engine
SellingPoint02: Full aluminum construction with durable TIG-welded end tanks
SellingPoint03: Two-row 1.57-in thick brazed aluminum core providing ideal fluid temperatures on the street or track
SellingPoint04: Functions with stock mechanical fan and stock shrouding
SellingPoint05: Includes threaded port for the stock temperature sensor
SellingPoint06: Perfect for use with stock modified forced induction or swapped vehicles
SellingPoint07: Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
SellingPoint08: Mishimoto Lifetime Warranty
SellingPoint09: N/A
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: 1995-1999 BMW M3--1998-1999 BMW 323IC/IS--1988-1991 BMW 325I--1992-1995 BMW 325I/IC/IS--1996-1998 BMW 328I/IC/IS
TechSpec Chassis Codes: E30--E36
TechSpec Core Height (in): 17.13
TechSpec Core Length (in): 21.46
TechSpec Core Thickness (in): 1.57
TechSpec DPI: 9751841
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec Engine Codes: S52--M52--M50TU--M20B25andlt br?--S50
TechSpec Fluid Capacity (gal): 3.13
TechSpec Includes: Mishimoto Radiator--Magnetic Drain Plug--Mishimoto Lifetime Warranty
TechSpec Inlet (in): 1.5
TechSpec Material: N/A
TechSpec Note: This radiator design was based on USDM BMW Part Number 17111723784. Please ensure proper fitment with your vehicle before installing for Euro-spec imported vehicles.----E36: This item is for Manual Transmission and Automatic Transmission vehicles. It features threaded rivet provisions for the automatic transmission cooler.----E30: This item is for Manual Transmission vehicles. For automatic applications please purchase optional Mishimoto transmission cooler (P/N: MMTC-U). Stock E30 fan shroud does not fit with this product
TechSpec Outlet (in): 1.57
TechSpec Overall Height (in): 18.3
TechSpec Overall Length (in): 26.3
TechSpec Overall Width (in): 2.07
TechSpec Rows: 2
