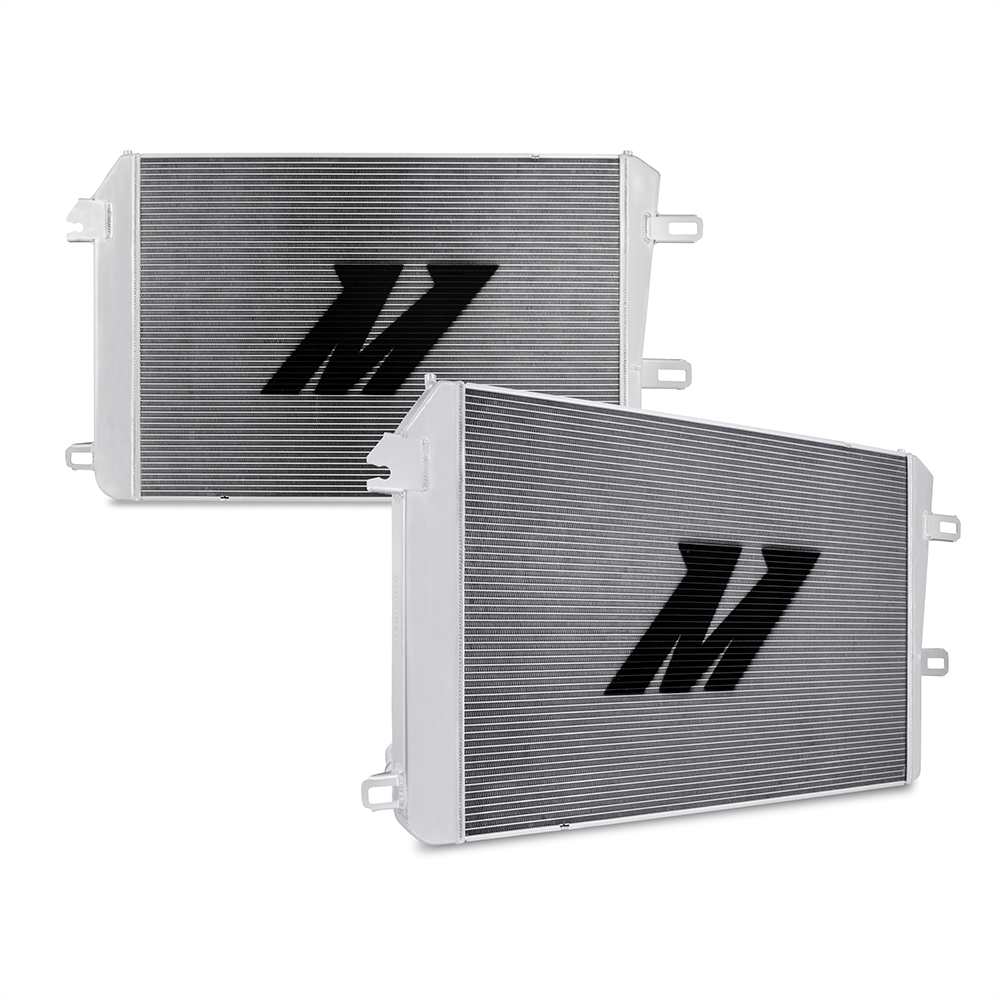

Performance Aluminum Radiator, fits Chevrolet/GMC 6.6L Duramax 2006-2010 - Mishimoto - MMRAD-DMAX-06

Mishimoto has released a direct-fit performance aluminum radiator for the 2006-2010 Chevrolet/GMC 6.6L Duramax.Mishimoto performance radiators are manufactured from high-quality aircraft-grade aluminum with a 100-percent brazed aluminum core and polished end tanks.The Mishimoto 6.6L Duramax performance radiator offers increased cooling efficiency and the all-aluminum TIG-welded construction provides a rugged design that can take the abuse of any environment or terrain.Pair your Mishimoto 6.6L Duramax aluminum radiator with our silicone coolant hose kit for the ultimate in cooling performance and reliability.The Mishimoto 6.6L Duramax aluminum radiator retains factory fitment and requires no modification to your truck.Whether you use your Duramax for tearing up the drag strip or working at the job site you can trust the Mishimoto performance radiator to keep your truck cool.As with all our products this radiator is protected by the Mishimoto lifetime warranty.
Full aluminum design with durable TIG-welded construction
Features a two-row 2.21-in thick brazed aluminum core providing ideal fluid temperatures on the street or track
Features a CNC-machined quick disconnect outlet for use with the stock hose connection
Drain Plug Thread Size: M12 - 1.5
Core Finish: Uncoated
Drain Plug Included: Yes
Overall Height: 24.8 IN
Core Height: 23.54 IN
Core Thickness: 2.21 IN
Core Material: Aluminum
Outlet Location: Bottom Right
Transmission Oil Cooler Included: No
Transmission Oil Cooler Fitting Type: N/A
Radiator Cap Included: No
Core Length: 33.86 IN
Core Row Quantity: 2
Inlet Diameter: 1.81 IN
Inlet Location: Top Left
Outlet Diameter: 0 IN
Fluid Capacity: 6.09 GA
Down Flow Or Cross Flow Type: Cross Flow
Overall Length: 45.1 IN
Overall Width: 5.9 IN
Install Difficulty: 5
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct fit for 2006-2010 Chevrolet/GMC trucks equipped with the 6.6L Duramax
SellingPoint02: Full aluminum design with durable TIG-welded construction
SellingPoint03: Features a two-row 2.21-in thick brazed aluminum core providing ideal fluid temperatures on the street or track
SellingPoint04: Features a CNC-machined quick disconnect outlet for use with the stock hose connection
SellingPoint05: Ideal replacement for an aged clogged or leaking stock radiator
SellingPoint06: Efficient fluid temperature reduction and superior heat dissipation makes this radiator ideal for use when hauling towing and/or in warm climates
SellingPoint07: Included magnetic drain plug captures harmful metal debris to safeguard cooling system performance
SellingPoint08: Mishimoto Lifetime Warranty
SellingPoint09: N/A
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: 2006-2010 Chevrolet Silverado 2500 HD w/ 6.6L Duramax LBZ/LMM--2006-2010 Chevrolet Silverado 3500 HD w/ 6.6L Duramax LBZ/LMM--2006-2010 GMC Sierra 2500 HD w/ 6.6L Duramax LBZ/LMM--2006-2010 GMC Sierra 3500 HD w/ 6.6L Duramax LBZ/LMM
TechSpec Chassis Codes: N/A
TechSpec Core Height (in): 23.54
TechSpec Core Length (in): 33.86
TechSpec Core Thickness (in): 2.21
TechSpec DPI: 2857
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec Engine Codes: N/A
TechSpec Fluid Capacity (gal): 6.09
TechSpec Includes: Mishimoto Radiator-- Magnetic Drain Plug--Mishimoto Lifetime Warranty
TechSpec Inlet (in): 1.81
TechSpec Material: Aluminum
TechSpec Note: This radiator was designed to fit with the most updated lower hose from Chevrolet/GMC with a larger O-ring. 2006-2007 model-year owners will need to purchase the Mishimoto radiator hose kit or the 2008-2010 OEM lower hose (part #25841843) from Chevrolet/GMC.
TechSpec Outlet (in): N/A
TechSpec Overall Height (in): 24.8
TechSpec Overall Length (in): 45.1
TechSpec Overall Width (in): 5.9
TechSpec Rows: 2
