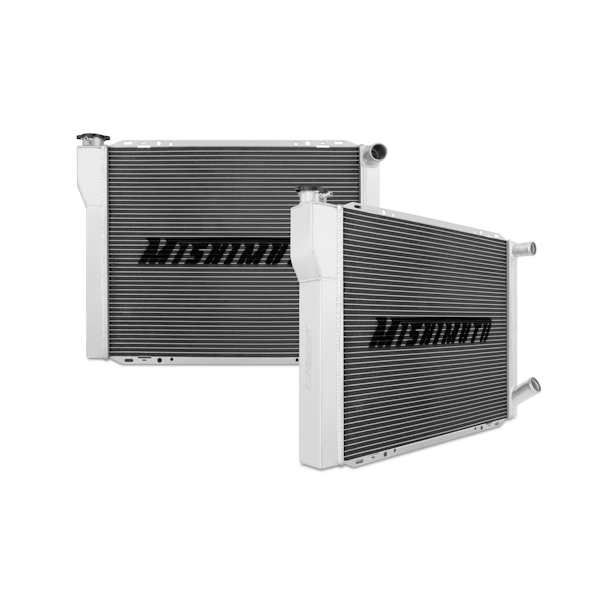

Universal Dual Pass Race Radiator - Mishimoto - MMRAD-DBP-26

Mishimoto'sports 27in x 19in x 3in Dual Pass Race Radiator.Perfect for any vehicle competing in motorsports.Made with aircraft quality aluminum and specifically engineered to maximize cooling efficiency boost engine functions and protect your car from overheating.
Universal fitment for projects requiring exceptional fluid cooling
Unique dual pass design is precision engineered to provide substantial heat transfer
Full aluminum construction with brazed core for optimal durability and pressure tolerance
Drain Plug Thread Size: M12 - 1.5
Core Finish: Uncoated
Drain Plug Included: Yes
Overall Height: 20 IN
Core Height: 18.43 IN
Core Thickness: 2.2 IN
Core Material: Aluminum
Outlet Location: Bottom Right
Transmission Oil Cooler Included: No
Transmission Oil Cooler Fitting Type: N/A
Radiator Cap Included: Yes
Core Length: 22.24 IN
Core Row Quantity: 2
Inlet Diameter: 1.5 IN
Inlet Location: Top Right
Outlet Diameter: 1.77 IN
Fluid Capacity: 0 GA
Down Flow Or Cross Flow Type: Cross Flow
Overall Length: 27 IN
Overall Width: 3 IN
Install Difficulty: 3
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Universal fitment for projects requiring exceptional fluid cooling
SellingPoint02: Unique dual pass design is precision engineered to provide substantial heat transfer
SellingPoint03: Full aluminum construction with brazed core for optimal durability and pressure tolerance
SellingPoint04: 1.3 Bar High-Pressure Radiator Cap raises the coolant boiling point providing a safer and more efficient system
SellingPoint05: Efficient two-row core measuring 55mm thick provides substantial fluid capacity and superior fluid temperature reduction
SellingPoint06: Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
SellingPoint07: Mishimoto Lifetime Warranty
SellingPoint08: N/A
SellingPoint09: N/A
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: N/A
TechSpec Chassis Codes: N/A
TechSpec Core Height (in): 18.43
TechSpec Core Length (in): 22.24
TechSpec Core Thickness (in): 2.2
TechSpec DPI: N/A
TechSpec Drain Plug Thread Size: N/A
TechSpec Engine Codes: N/A
TechSpec Fluid Capacity (gal): N/A
TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Mishimoto Lifetime Warranty
TechSpec Inlet (in): 1.5
TechSpec Material: Aluminum
TechSpec Note: This item is for Manual Transmission vehicles. For automatic applications please purchase optional Mishimoto Universal Transmission Cooler Kit.
TechSpec Outlet (in): 1.77
TechSpec Overall Height (in): 20
TechSpec Overall Length (in): 27
TechSpec Overall Width (in): 3
TechSpec Rows: 2
