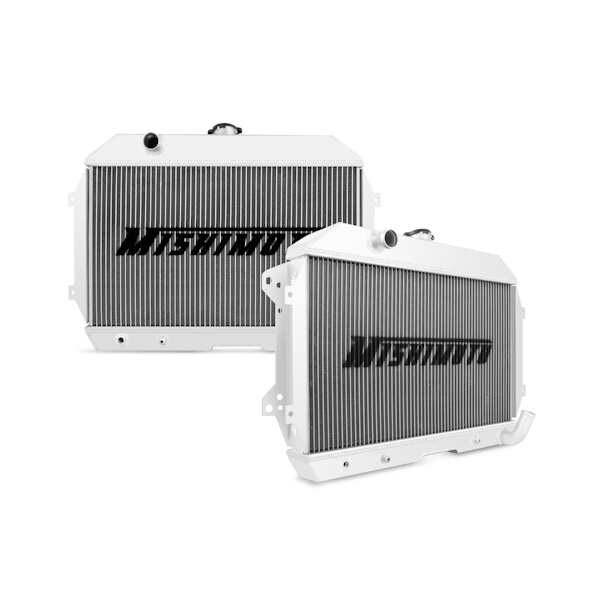

Performance Aluminum Radiator, fits Datsun 240Z 1970-1973 - Mishimoto - MMRAD-DATS-70

The Mishimoto performance aluminum radiator for the Datsun 240Z is the ideal update to the stock Datsun radiator.The last thing you want is to be limited by an old worn out radiator during a hot day at the strip or when you're stuck in traffic.Our engineers know that and our design reflects this by utilizing all-aluminum construction and added fluid capacity to increase cooling efficiency.With polished end tanks and a signature Mishimoto radiator cap the Mishimoto Datsun 240Z radiator looks as good as it performs!
Full aluminum design with durable TIG-welded construction
Features a two-row 1.65-in thick brazed aluminum core providing ideal fluid temperatures on the street or track
Ideal replacement for an aged clogged or leaking stock radiator
Drain Plug Thread Size: M12 - 1.5
Core Finish: Uncoated
Drain Plug Included: Yes
Overall Height: 27.3 IN
Core Height: 13.58 IN
Core Thickness: 1.65 IN
Core Material: Aluminum
Outlet Location: Bottom Right
Transmission Oil Cooler Included: No
Transmission Oil Cooler Fitting Type: N/A
Radiator Cap Included: Yes
Core Length: 23.15 IN
Core Row Quantity: 2
Inlet Diameter: 1.38 IN
Inlet Location: Top Left
Outlet Diameter: 1.38 IN
Fluid Capacity: 2.39 GA
Down Flow Or Cross Flow Type: Down Flow
Overall Length: 19.16 IN
Overall Width: 6.2 IN
Install Difficulty: 3
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct fit for the 1970-1973 Datsun 240Z and 1974-1975 Datsun 260Z
SellingPoint02: Full aluminum design with durable TIG-welded construction
SellingPoint03: Features a two-row 1.65-in thick brazed aluminum core providing ideal fluid temperatures on the street or track
SellingPoint04: Ideal replacement for an aged clogged or leaking stock radiator
SellingPoint05: Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant providing a safer and more efficient system
SellingPoint06: Included magnetic drain plug captures harmful metal debris to safeguard cooling system performance
SellingPoint07: Mishimoto Lifetime Warranty
SellingPoint08: N/A
SellingPoint09: N/A
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: 1970-1973 Datsun 240Z--1974-1975 Datsun 260Z
TechSpec Chassis Codes: S30
TechSpec Core Height (in): 13.58
TechSpec Core Length (in): 23.15
TechSpec Core Thickness (in): 1.65
TechSpec DPI: 110
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec Engine Codes: L24--L26
TechSpec Fluid Capacity (gal): 2.39
TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty
TechSpec Inlet (in): 1.38
TechSpec Material: Aluminum
TechSpec Note: N/A
TechSpec Outlet (in): 1.38
TechSpec Overall Height (in): 27.3
TechSpec Overall Length (in): 19.16
TechSpec Overall Width (in): 6.2
TechSpec Rows: 2
