Secondary Race Radiator, fits Honda Civic Type R 2017-2021 - Mishimoto - MMRAD-CTR-17S

It's no secret now that while the 2017-2021 Civic Type R is designed to attack the track it can?t always stand up to the heat. Nothing is quite as frustrating as having to cut your track time short or pull off to the shoulder on a canyon carve due to simmering coolant. Luckily Mishimoto is here to give the FK8's cooling system the backup it needs with our 2017-2021 Honda Civic Type R Secondary Race Radiator kit. Employing the use of one of our smaller but efficient radiator designs we mounted an additional heat exchanger behind the K20C1 with robust steel brackets tapping in after the Civic?s heater core. Utilizing the air flow generated through the engine bay the Secondary Race Radiator generates additional cooling power for the already overworked stock radiator keeping you on the track longer. In addition to the supplementary cooling power the 2017-2021 Honda Civic Type R Secondary Race Radiator also increases the overall coolant capacity. The Mishimoto Lifetime Warranty is also included with the radiator kit to keep your CTR cool and you worry free.
Incorporates additional radiator into factory cooling system for increased engine cooling
Utilizes factory aerodynamics for airflow to unique mounting location
Full aluminum construction with durable TIG-welded end tanks
Drain Plug Thread Size: M12 - 1.5
Core Finish: Uncoated
Drain Plug Included: Yes
Overall Height: 0 IN
Core Height: 5.04 IN
Core Thickness: 0 IN
Core Material: Aluminum
Outlet Location: Bottom Left
Transmission Oil Cooler Included: No
Transmission Oil Cooler Fitting Type: N/A
Radiator Cap Included: No
Core Length: 11.03 IN
Core Row Quantity: 1
Inlet Diameter: 0.63 IN
Inlet Location: Top Left
Outlet Diameter: 0.63 IN
Fluid Capacity: 0.17 GA
Down Flow Or Cross Flow Type: Cross Flow
Overall Length: 0 IN
Overall Width: 0 IN
Install Difficulty: 3
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct fit for the 2017-2021 Honda Civic Type R
SellingPoint02: Incorporates additional radiator into factory cooling system for increased engine cooling
SellingPoint03: Utilizes factory aerodynamics for airflow to unique mounting location
SellingPoint04: Full aluminum construction with durable TIG-welded end tanks
SellingPoint05: Robust mounting bracket design for worry-free installation
SellingPoint06: Increases coolant capacity
SellingPoint07: Mishimoto Lifetime Warranty
SellingPoint08: N/A
SellingPoint09: N/A
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: 2017+ Honda Civic Type R
TechSpec Chassis Codes: FK8
TechSpec Core Height (in): 5.04
TechSpec Core Length (in): 11.03
TechSpec Core Thickness (in): N/A
TechSpec DPI: N/A
TechSpec Drain Plug Thread Size: N/A
TechSpec Engine Codes: K20C1
TechSpec Fluid Capacity (gal): 0.17

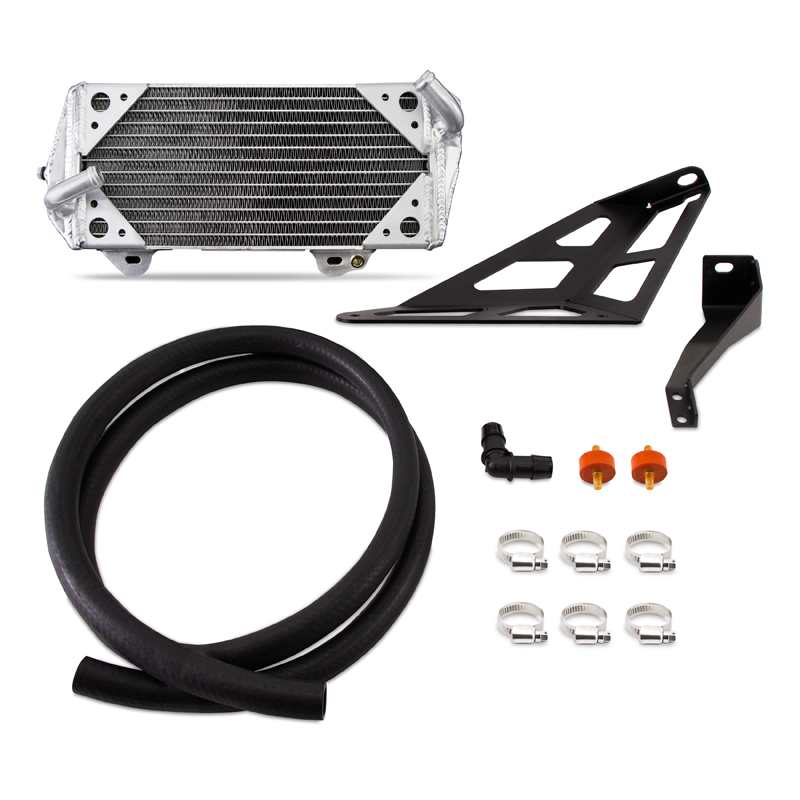

TechSpec Includes: Secondary Race Radiator-- Mounting Bracket Set-- Heater Hose-- 90 Barbed Hose Adapter--(6) Worm Gear Clamps--Mounting Hardware--Mishimoto Lifetime Warranty
TechSpec Inlet (in): 0.63
TechSpec Material: Aluminum
TechSpec Note: N/A
TechSpec Outlet (in): 0.63
TechSpec Overall Height (in): N/A
TechSpec Overall Length (in): N/A
TechSpec Overall Width (in): N/A
TechSpec Rows: 1
