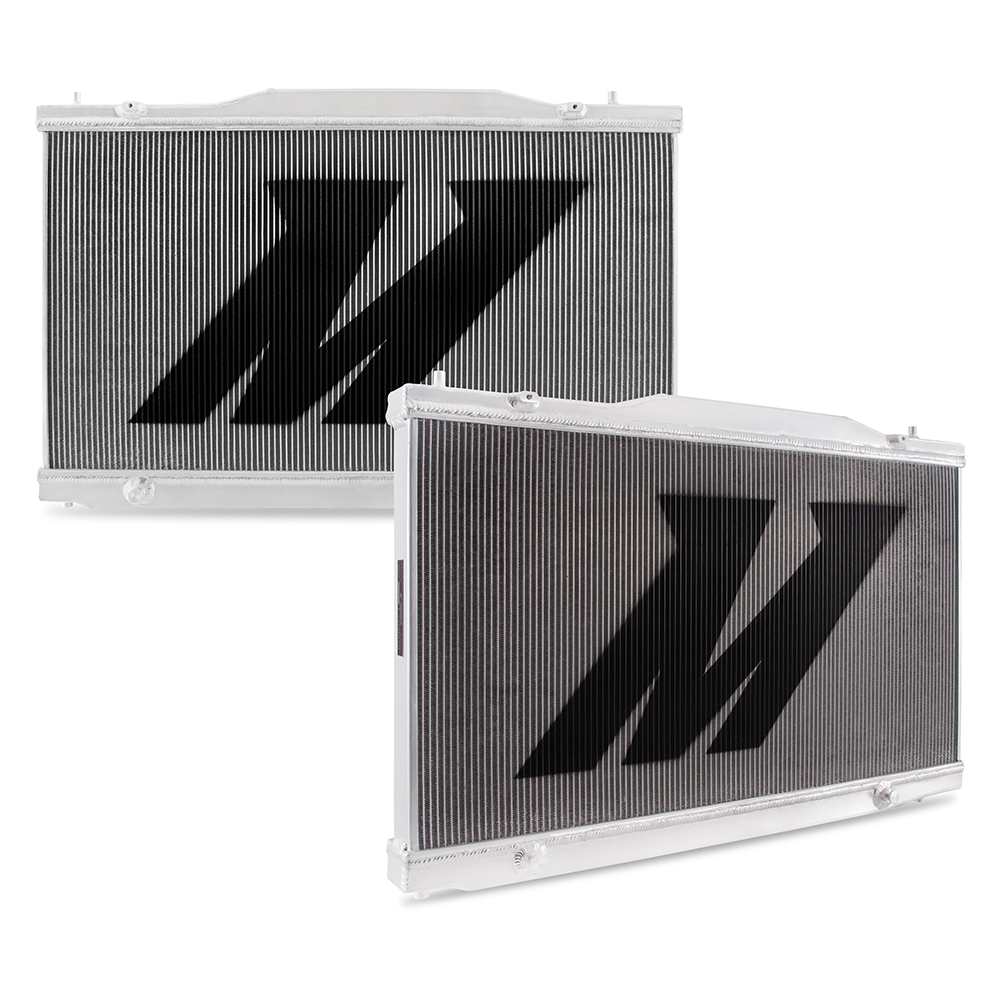

Performance Aluminum Radiator, fits Honda Civic Type R 2017-2021 - Mishimoto - MMRAD-CTR-17

Give your CTR the cooling power it desperately needs with the Mishimoto 2017-2021 Honda Civic Type R Performance Aluminum Radiator. Honda's top-rung Civic took the hot-hatchback world by storm but there's still one thing that's holding it back heat. The K20C1 is quite the powerhouse in the Civic but the stock cooling system just can't keep up. Mishimoto is here with a more durable and efficient cooling solution for your FK8. For starters we ditched the skinny core and plastic end tanks for a full aluminum TIG-welded construction sure to stand up to abuse on the street track or drag strip. Our design also features a 1.57in thick core increasing core volume by 48-percent and external fin surface area by 102-percent for maximum heat dissipation properties. Our core also incorporates strutted tubes for maximum durability. The 2017-2021 Honda Civic Type R Performance Aluminum Radiator is available in a polished finish and includes our magnetic drain plug to collect any metallic debris in your cooling system This radiator is covered under the Mishimoto Lifetime Warranty for a worry-free installation.
48-percent increase in core volume
102-percent increase in fin surface area
Features a 1.57-in thick efficiently brazed aluminum core
Drain Plug Thread Size: M12 - 1.5
Core Finish: Uncoated
Drain Plug Included: Yes
Overall Height: 18.1 IN
Core Height: 14.8 IN
Core Thickness: 1.57 IN
Core Material: Aluminum
Outlet Location: Bottom Left
Transmission Oil Cooler Included: No
Transmission Oil Cooler Fitting Type: N/A
Radiator Cap Included: No
Core Length: 26.7 IN
Core Row Quantity: 1
Inlet Diameter: 0 IN
Inlet Location: Top Left
Outlet Diameter: 0 IN
Fluid Capacity: 1.24 GA
Down Flow Or Cross Flow Type: Down Flow
Overall Length: 27.9 IN
Overall Width: 4 IN
Install Difficulty: 3
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct fit for the 2017-2021 Honda Civic Type R
SellingPoint02: 48-percent increase in core volume
SellingPoint03: 102-percent increase in fin surface area
SellingPoint04: Features a 1.57-in thick efficiently brazed aluminum core
SellingPoint05: Full aluminum construction including durable TIG-welded end tanks
SellingPoint06: Strutted tubes for maximum durability
SellingPoint07: Increased fluid capacity for optimal heat dissipation
SellingPoint08: Efficient temperature regulation for both stock and modified vehicles
SellingPoint09: Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
SellingPoint10: Mishimoto Lifetime Warranty
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: 2017-2021 Honda Civic Type R
TechSpec Chassis Codes: FK8
TechSpec Core Height (in): 14.8
TechSpec Core Length (in): 26.7
TechSpec Core Thickness (in): 1.57
TechSpec DPI: N/A
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec Engine Codes: K20C1
TechSpec Fluid Capacity (gal): 1.24
TechSpec Includes: Aluminum Radiator-- Magnetic Drain Plug--Mishimoto Lifetime Warranty
TechSpec Inlet (in): N/A
TechSpec Material: Aluminum
TechSpec Note: N/A
TechSpec Outlet (in): N/A
TechSpec Overall Height (in): 18.1
TechSpec Overall Length (in): 27.9
TechSpec Overall Width (in): 4
TechSpec Rows: 1
