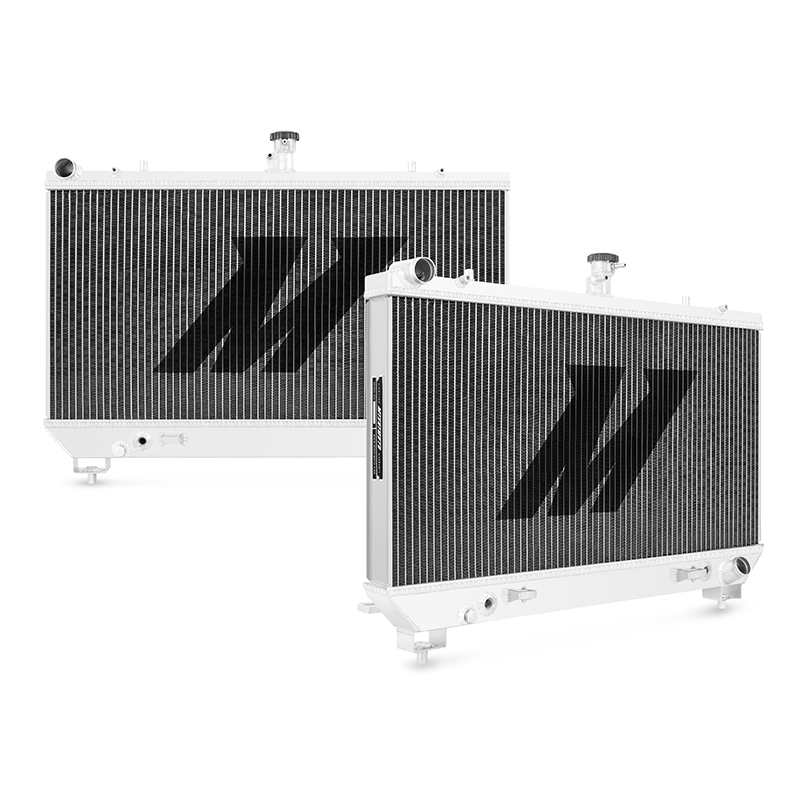

Performance Aluminum Radiator, fits Chevrolet Camaro SS 2010-2011 - Mishimoto - MMRAD-CSS-10

The Mishimoto performance aluminum radiator for the 2010-2011 Chevrolet Camaro SS is the ideal upgrade to the stock Camaro radiator.The last thing you want is to be limited by the factory unit during a hot day at the strip or when you're stuck in traffic.Our engineers know that and our design reflects this by increasing cooling efficiency by 30-percent.Curious how much 30-percent really is? Well considering our radiator lets your cooling system gain gallon of extra capacity and lowers coolant temps by 20F that 30-percent is pretty impressive.With polished end tanks and all aluminum construction the Mishimoto Camaro SS radiator looks as good as it performs!
Full aluminum construction with durable TIG-welded end tanks
Features a two-row 2.20-in thick brazed aluminum core providing ideal fluid temperatures on the street and strip
.5 gal of additional fluid capacity
Drain Plug Thread Size: M12 - 1.5
Core Finish: Uncoated
Drain Plug Included: Yes
Overall Height: 30.6 IN
Core Height: 15.1 IN
Core Thickness: 2.2 IN
Core Material: Aluminum
Outlet Location: Bottom Right
Transmission Oil Cooler Included: No
Transmission Oil Cooler Fitting Type: N/A
Radiator Cap Included: Yes
Core Length: 29.8 IN
Core Row Quantity: 2
Inlet Diameter: 1.38 IN
Inlet Location: Top Left
Outlet Diameter: 1.38 IN
Fluid Capacity: 3.34 GA
Down Flow Or Cross Flow Type: Down Flow
Overall Length: 23.3 IN
Overall Width: 5.6 IN
Install Difficulty: 3
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct fit for the 2010-2011 Chevrolet Camaro SS
SellingPoint02: Full aluminum construction with durable TIG-welded end tanks
SellingPoint03: Features a two-row 2.20-in thick brazed aluminum core providing ideal fluid temperatures on the street and strip
SellingPoint04: .5 gal of additional fluid capacity
SellingPoint05: Lowers radiator outlet temperatures by 20 F
SellingPoint06: 20-percent greater cooling efficiency
SellingPoint07: Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant providing a safer and more efficient system
SellingPoint08: Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
SellingPoint09: Mishimoto Lifetime Warranty
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: 2010-2011 Chevy Camaro SS (AT and MT)
TechSpec Chassis Codes: Zeta
TechSpec Core Height (in): 15.1
TechSpec Core Length (in): 29.8
TechSpec Core Thickness (in): 2.2
TechSpec DPI: 13142
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec Engine Codes: L99--LS3
TechSpec Fluid Capacity (gal): 3.34
TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty
TechSpec Inlet (in): 1.38
TechSpec Material: Aluminum
TechSpec Note: N/A
TechSpec Outlet (in): 1.38
TechSpec Overall Height (in): 30.6
TechSpec Overall Length (in): 23.3
TechSpec Overall Width (in): 5.6
TechSpec Rows: 2
