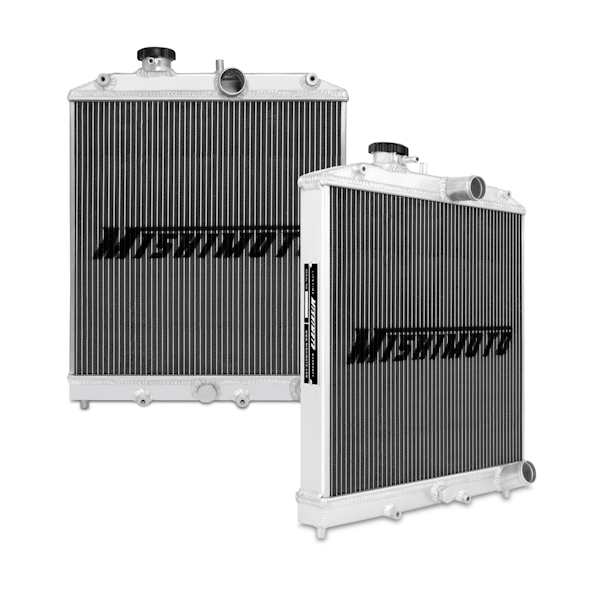

X-Line Performance Aluminum Radiator, fits Honda Civic 1992-2000 - Mishimoto - MMRAD-CIV-92X

A high-performance Civic demands a cooling system that can keep up on the street and the track. For applications requiring the most efficient heat exchanger the Mishimoto X-Line Honda Civic Performance Aluminum Radiator provides three cooling rows packaged in a massive 2-inch thick core. The three-row design provides additional surface contact points for higher efficiency and lower temperatures. To provide additional cooling performance this radiator is constructed using a 100-percent brazed aluminum core with TIG-welded aluminum end tanks for superior heat dissipation reliability and strength. This performance radiator includes a high-pressure 1.3 bar radiator cap that effectively raises the boiling point of coolant to create a safer and more efficient system perfect for your time attack EG or all-motor EK. The Mishimoto Honda Civic X-line radiator features a compact yet highly efficient design making it perfect for custom applications where space constraints limit the use of traditionally sized radiators. Despite featuring a drastic increase in core size compared to stock this radiator is a direct fit for the 1992-2000 Honda Civic and requires no modification for installation. As with all our products this radiator includes the Mishimoto Lifetime Warranty ensuring superior product quality and craftsmanship.
Premium radiator has 3-row core for improved strength and reliability
16-percent thinner-than-stock tubes allow for more surface contact increasing cooling efficiency
Greater density of rows for higher cooling capacity.
Drain Plug Thread Size: M12 - 1.5
Core Finish: Uncoated
Drain Plug Included: Yes
Overall Height: 18.5 IN
Core Height: 14.09 IN
Core Thickness: 2 IN
Core Material: Aluminum
Outlet Location: Bottom Right
Transmission Oil Cooler Included: No
Transmission Oil Cooler Fitting Type: N/A
Radiator Cap Included: Yes
Core Length: 13.78 IN
Core Row Quantity: 3
Inlet Diameter: 1.26 IN
Inlet Location: Top Right
Outlet Diameter: 1.26 IN
Fluid Capacity: 0 GA
Down Flow Or Cross Flow Type: Down Flow
Overall Length: 14.6 IN
Overall Width: 2.5 IN
Install Difficulty: 3
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Premium radiator has 3-row core for improved strength and reliability
SellingPoint02: 16-percent thinner-than-stock tubes allow for more surface contact increasing cooling efficiency
SellingPoint03: Greater density of rows for higher cooling capacity.
SellingPoint04: More contact points for additional heat transfer
SellingPoint05: 3-row design creates more air turbulence maximizing cooling efficiency
SellingPoint06: Includes magnetic drain plug
SellingPoint07: Includes a 1.3 Bar High-Pressure Radiator Cap
SellingPoint08: Mishimoto Lifetime Warranty
SellingPoint09: N/A
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: 1992-2000 Honda Civic (All)--1993-1997 Honda Civic Del Sol
TechSpec Chassis Codes: EG1EH6EG2EH2EH3EH9EJ1EJ2EJ6EJ7EJ8EM1
TechSpec Core Height (in): 14.09
TechSpec Core Length (in): 13.78
TechSpec Core Thickness (in): 2
TechSpec DPI: 1290
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec Engine Codes: D15b1D15b7D15b8D15z1D16z6D16y5D16y7D16y8B16a2B16a3
TechSpec Fluid Capacity (gal): N/A
TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty
TechSpec Inlet (in): 1.26
TechSpec Material: N/A
TechSpec Note: This item is for Manual Transmission vehicles. For automatic applications please purchase optional Mishimoto Universal Transmission Cooler Kit.
TechSpec Outlet (in): 1.26
TechSpec Overall Height (in): 18.5
TechSpec Overall Length (in): 14.6
TechSpec Overall Width (in): 2.5
TechSpec Rows: 3
